6.2 Dismantling

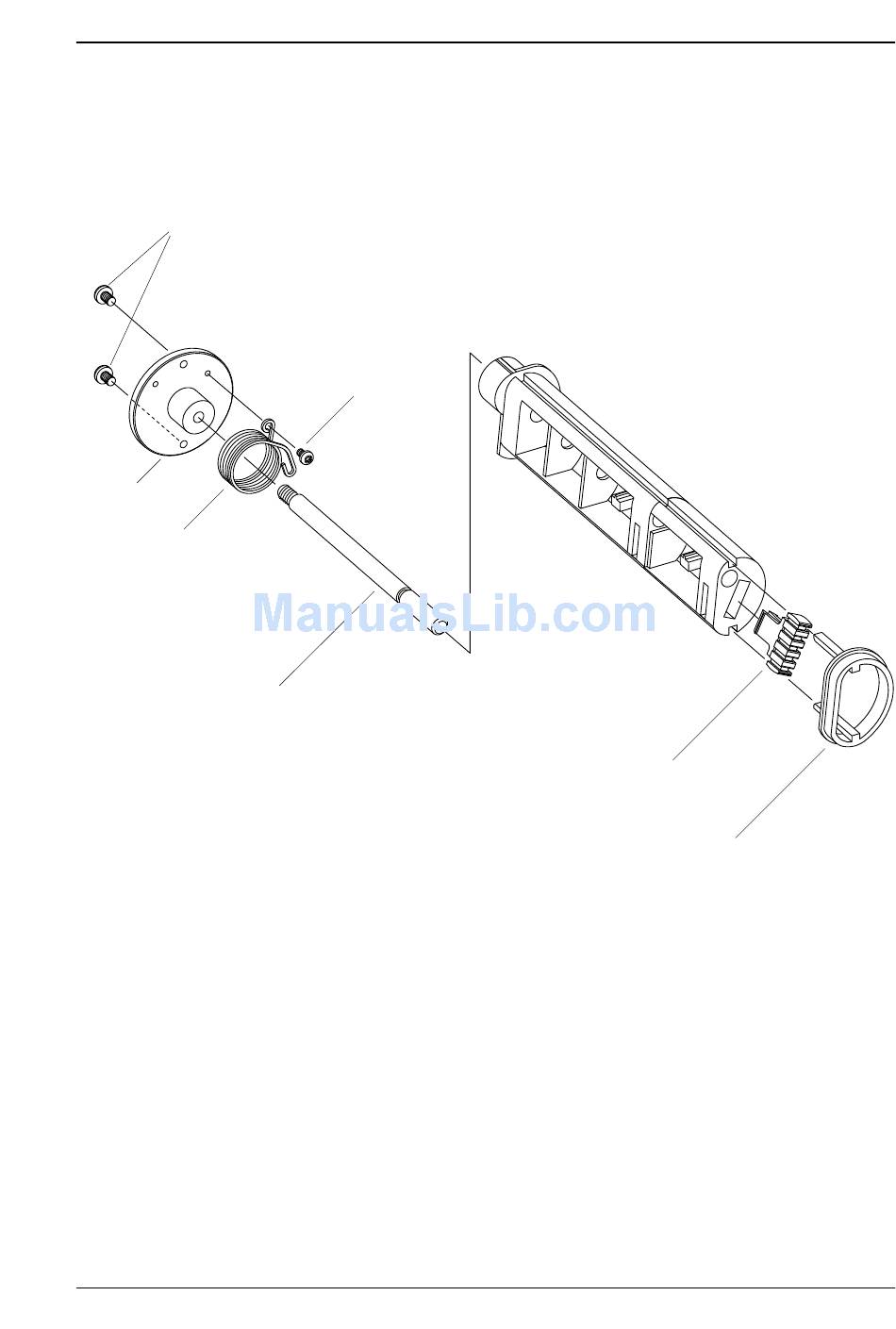

#T20 Torx Screws (2x)
Flange
Torsion Spring
Shaft
Intermec EasyCoder 601 XP – Service Manual Ed. 2
The label slack absorber unit is fitted to the centre-line wall by
means of two #T20 Torx screws inserted through the centreline wall
from the electronics compartment. The shaft should be screwed into
the flange with a tightening torque of 5 Nm.
#T10 Torx Screw
Chapter 6
Label Slack Absorber
Grip (green)
Paper Guide
(green)
31
