I
Make sure that the riser module engages properly in the recesses
(see picture before).
Ê Carefully push down the riser module.

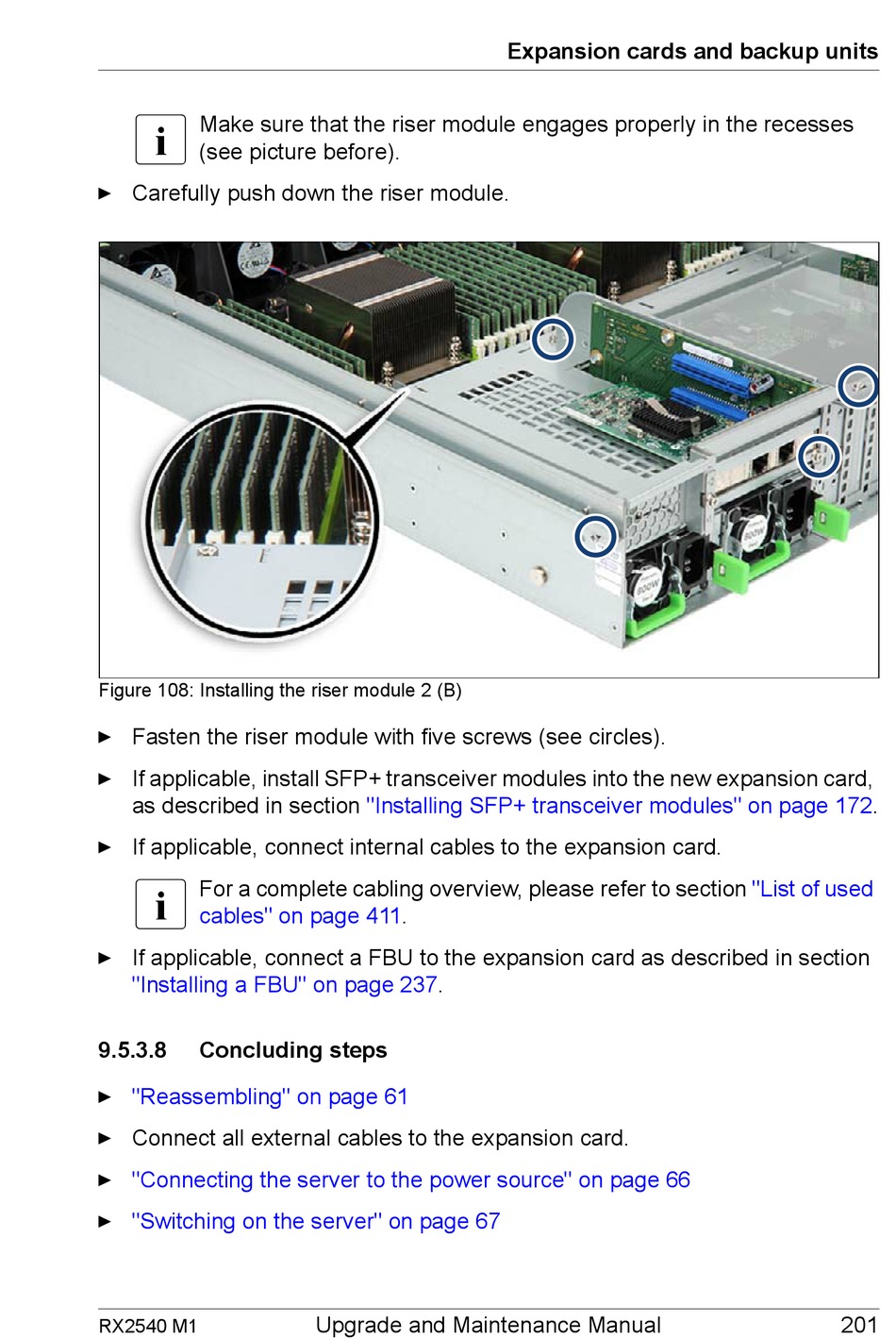

Figure 108: Installing the riser module 2 (B)
Ê Fasten the riser module with five screws (see circles).
Ê If applicable, install SFP+ transceiver modules into the new expansion card,
as described in section
Ê If applicable, connect internal cables to the expansion card.
I
For a complete cabling overview, please refer to section
cables" on page
Ê If applicable, connect a FBU to the expansion card as described in section
"Installing a FBU" on page
9.5.3.8

Concluding steps

"Reassembling" on page 61
Ê
Ê Connect all external cables to the expansion card.
"Connecting the server to the power source" on page 66
Ê
"Switching on the server" on page 67
Ê
RX2540 M1
"Installing SFP+ transceiver modules" on page
411.
237.
Upgrade and Maintenance Manual
Expansion cards and backup units
172.
"List of used
201
