Hard disk drives / solid state drives
7.3.4.3
Removing the defective SAS expander board

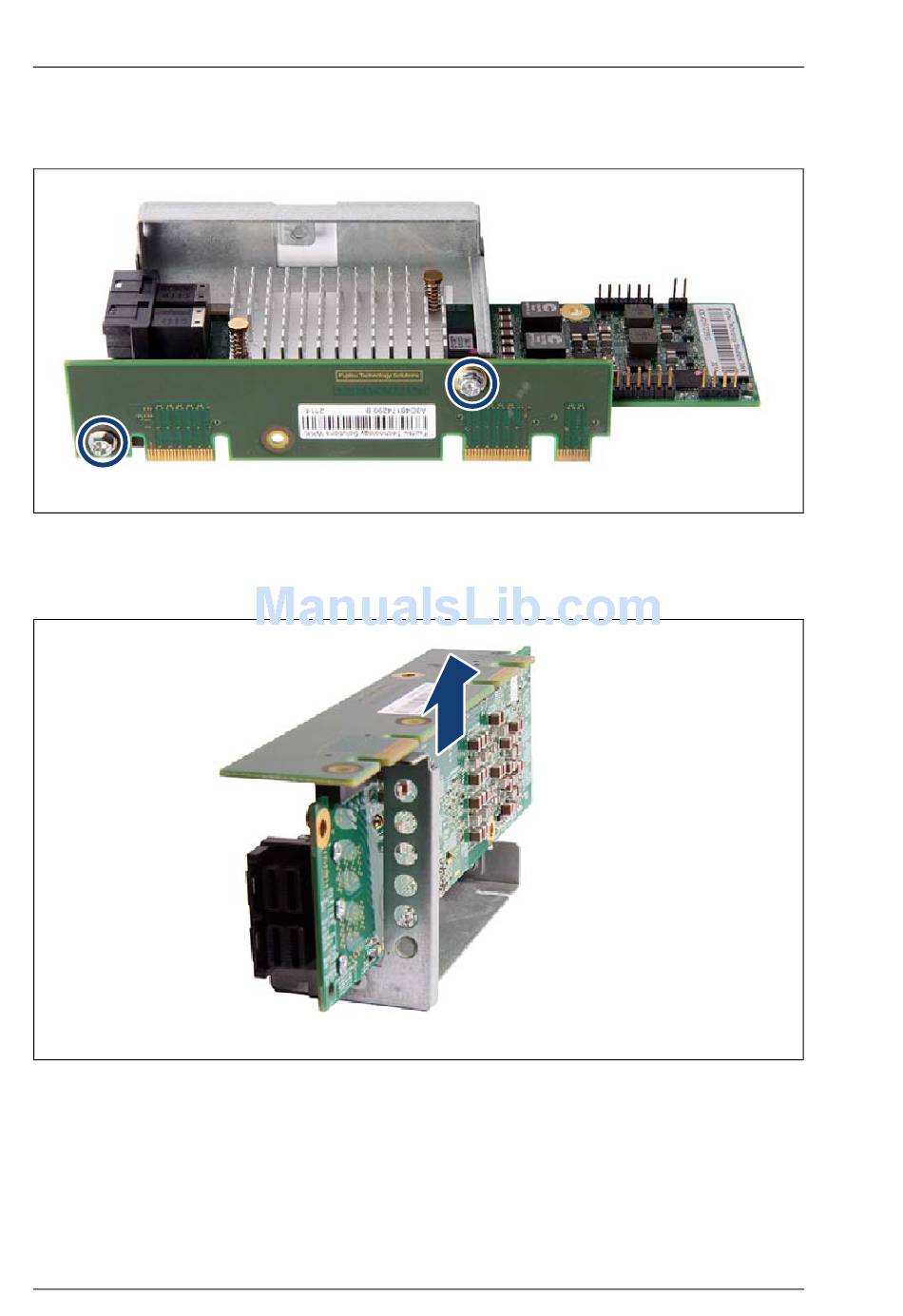

Figure 56: Removing the pre-mounted expander board (A)
Ê Remove the two screws (see circles).
Figure 57: Removing the pre-mounted expander board (B)
Ê Remove the pre-mounted SAS expander board.
144
Upgrade and Maintenance Manual
RX2540 M1
