Expansion cards and backup units
Ê Fasten the expansion card with the screw (see circle).
9.5.1.4

Removing the slot cover (riser module 1)

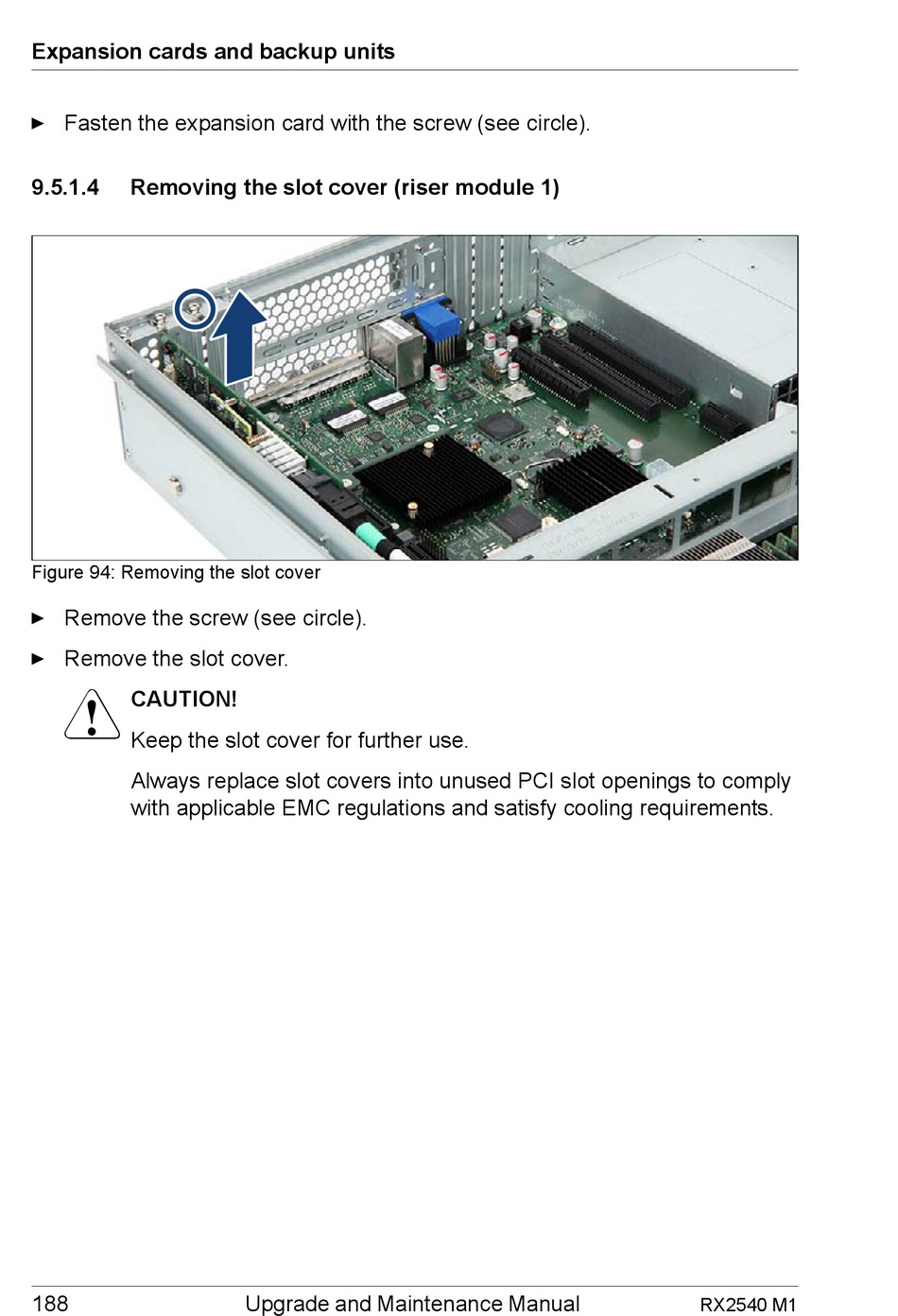

Figure 94: Removing the slot cover
Ê Remove the screw (see circle).
Ê Remove the slot cover.
V
CAUTION!
Keep the slot cover for further use.
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
188 Upgrade and Maintenance Manual
RX2540 M1
