To connect a terminal:
1. Attach the Lantronix adapter to your terminal (typifcally a PN 200.2066A adapter) or your PC's
serial port (use PN 200.2070A adapter).
2. Connect the Cat 5 cable to the adapter, and connect the other end to the SLC console port.
3. Turn on the terminal or start your computer's communication program (e.g., HyperTerminal for
Windows XP or lower. For recent versions of Windows use a free terminal emulator such as
PuTTY or TeraTerm Pro).
4. Once the SLC 8000 advanced console manager is running, press Enter to establish
connection. You should see the model name and a login prompt on your terminal. You are
connected.

AC Input

The power supply module for the SLC controller accepts AC input voltage of 100-240 VAC, 50/60
HZ. Rear-mounted IEC-type AC power connectors are provided for universal AC power input.
(See What's in the Box on page
Caution: Disconnect all power supply modules before servicing to avoid electric shock.
SLC™ 8000 Advanced Console Manager User Guide
27.)

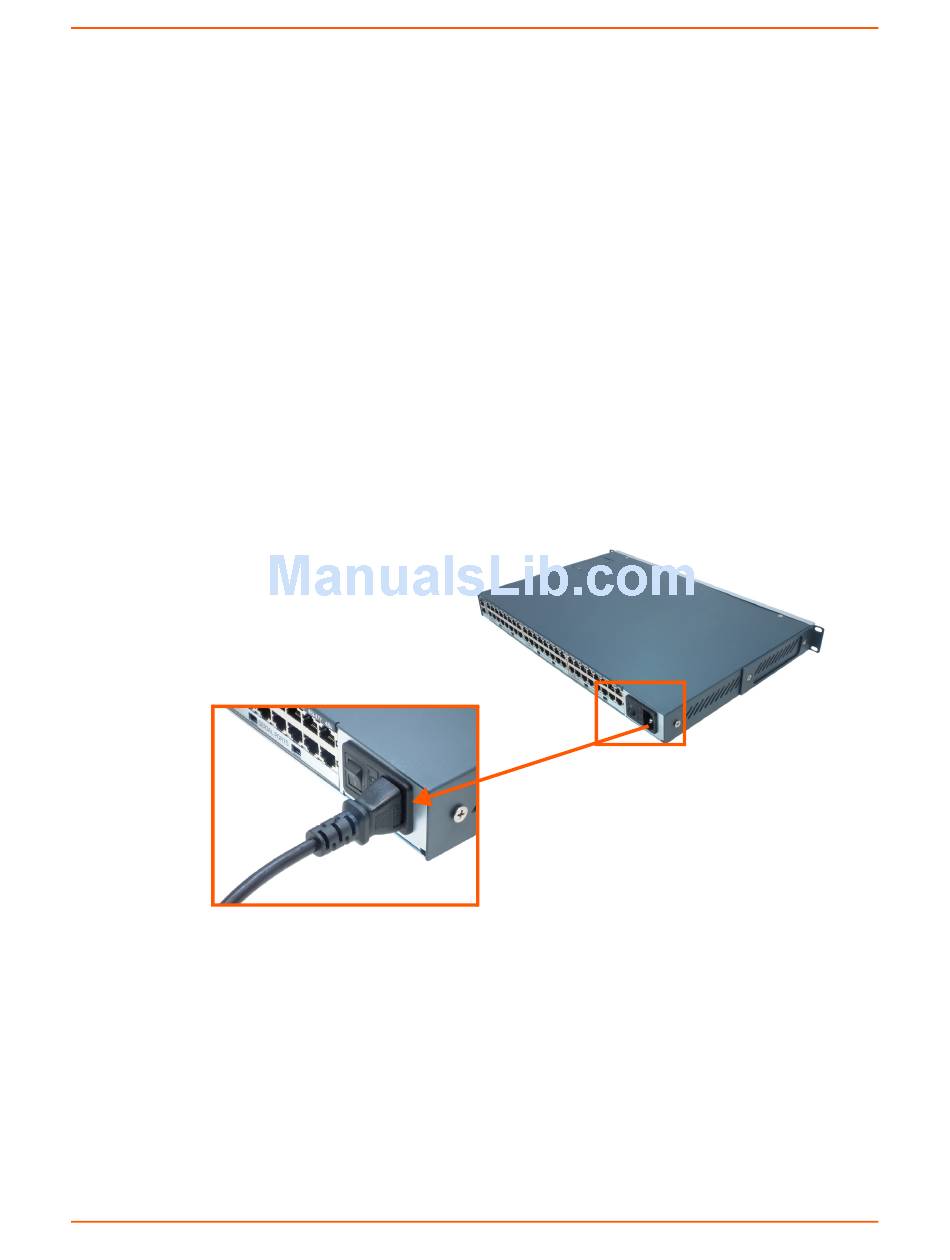

Figure 3-7 AC Power Input
