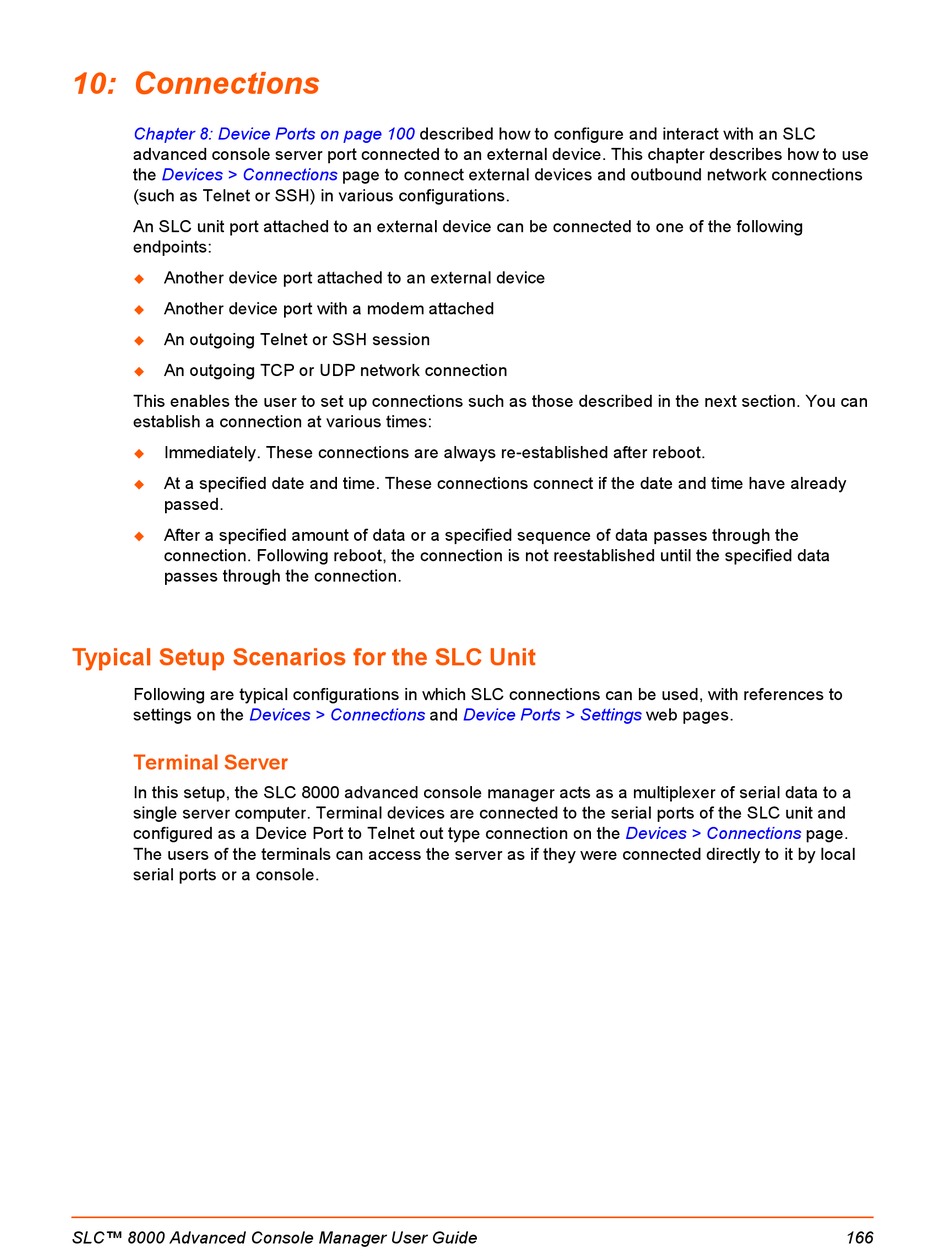

10: Connections

Chapter 8: Device Ports on page 100
advanced console server port connected to an external device. This chapter describes how to use
the Devices > Connections
(such as Telnet or SSH) in various configurations.
An SLC unit port attached to an external device can be connected to one of the following
endpoints:
Another device port attached to an external device

Another device port with a modem attached

An outgoing Telnet or SSH session

An outgoing TCP or UDP network connection

This enables the user to set up connections such as those described in the next section. You can
establish a connection at various times:
Immediately. These connections are always re-established after reboot.

At a specified date and time. These connections connect if the date and time have already

passed.
After a specified amount of data or a specified sequence of data passes through the

connection. Following reboot, the connection is not reestablished until the specified data
passes through the connection.

Typical Setup Scenarios for the SLC Unit

Following are typical configurations in which SLC connections can be used, with references to
settings on the Devices > Connections

Terminal Server

In this setup, the SLC 8000 advanced console manager acts as a multiplexer of serial data to a
single server computer. Terminal devices are connected to the serial ports of the SLC unit and
configured as a Device Port to Telnet out type connection on the
The users of the terminals can access the server as if they were connected directly to it by local
serial ports or a console.
SLC™ 8000 Advanced Console Manager User Guide
described how to configure and interact with an SLC
page to connect external devices and outbound network connections
and Device Ports > Settings web pages.
Devices > Connections page.
166
