Figure 9-3 Devices > Sd Card > Configure - Lantronix SLC 8000 User Manual

3. Enter the following fields.
Mount
Unmount
Format
Filesystem
Filesystem Check
4. Click Apply.
5. Click the Manage Files on Storage Device link to view and manage files on the selected USB
thumb drive or SD Card. Files on the storage device may then be deleted, downloaded or
renamed. See
SLC™ 8000 Advanced Console Manager User Guide

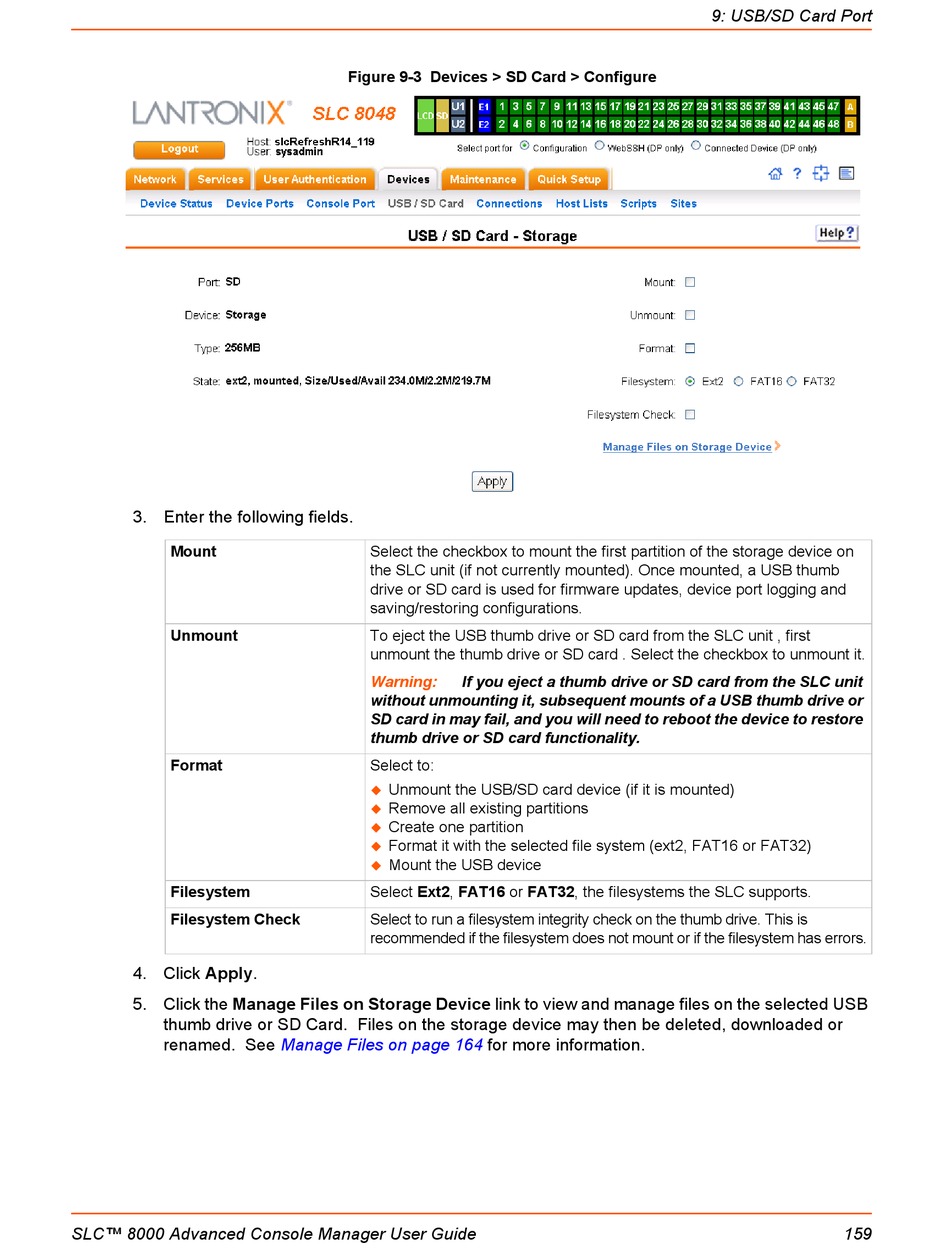

Figure 9-3 Devices > SD Card > Configure
Select the checkbox to mount the first partition of the storage device on
the SLC unit (if not currently mounted). Once mounted, a USB thumb
drive or SD card is used for firmware updates, device port logging and
saving/restoring configurations.
To eject the USB thumb drive or SD card from the SLC unit , first
unmount the thumb drive or SD card . Select the checkbox to unmount it.
Warning:
without unmounting it, subsequent mounts of a USB thumb drive or
SD card in may fail, and you will need to reboot the device to restore
thumb drive or SD card functionality.
Select to:
Unmount the USB/SD card device (if it is mounted)

Remove all existing partitions

Create one partition

Format it with the selected file system (ext2, FAT16 or FAT32)

Mount the USB device

Select Ext2, FAT16 or FAT32, the filesystems the SLC supports.
Select to run a filesystem integrity check on the thumb drive. This is
recommended if the filesystem does not mount or if the filesystem has errors.
Manage Files on page 164
If you eject a thumb drive or SD card from the SLC unit
for more information.
9: USB/SD Card Port
159
