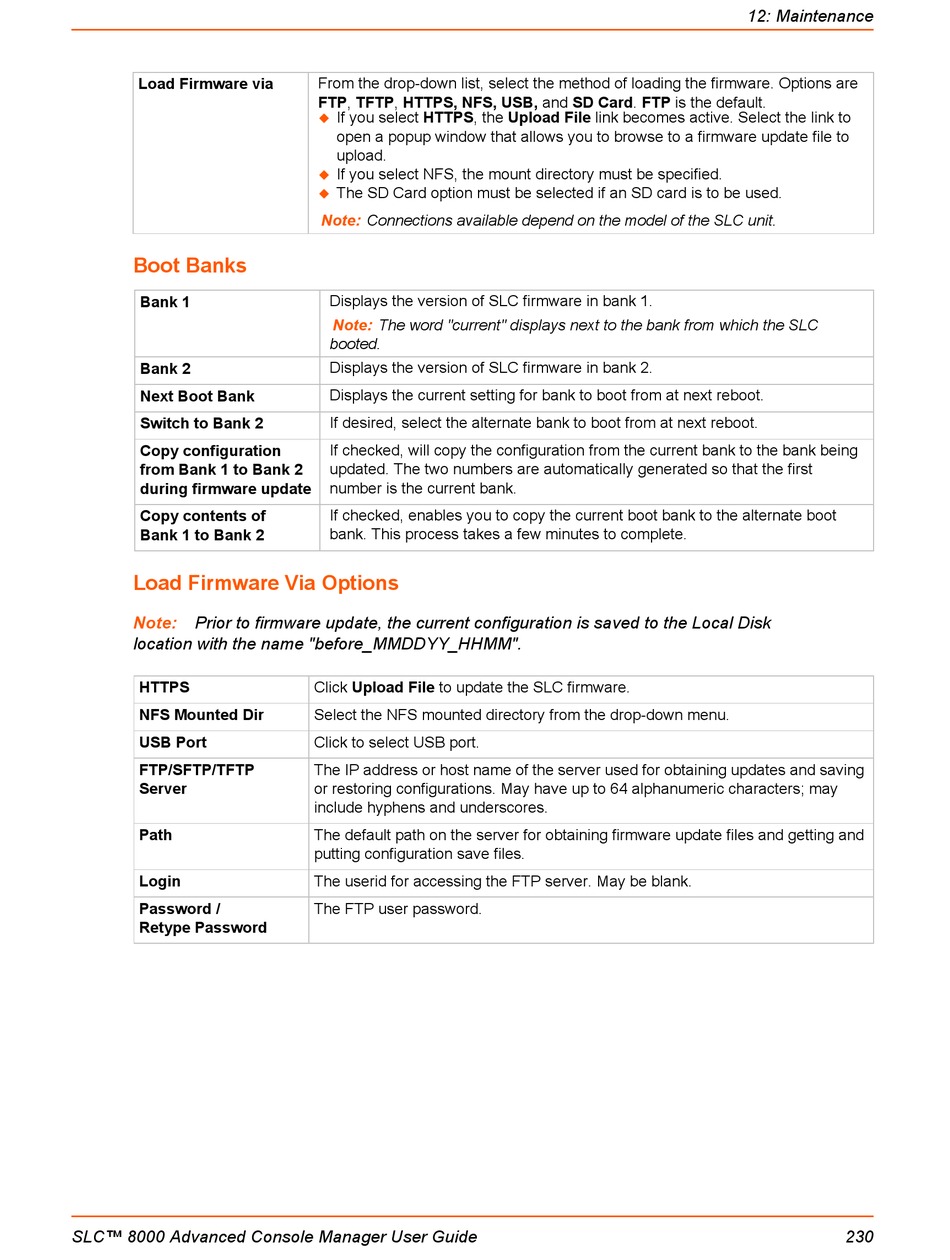

Load Firmware via

Boot Banks

Bank 1
Bank 2
Next Boot Bank
Switch to Bank 2
Copy configuration
from Bank 1 to Bank 2
during firmware update
Copy contents of
Bank 1 to Bank 2

Load Firmware Via Options

Note: Prior to firmware update, the current configuration is saved to the Local Disk
location with the name "before_MMDDYY_HHMM".
HTTPS
NFS Mounted Dir
USB Port
FTP/SFTP/TFTP
Server
Path
Login
Password /
Retype Password
SLC™ 8000 Advanced Console Manager User Guide
From the drop-down list, select the method of loading the firmware. Options are
FTP, TFTP, HTTPS, NFS, USB, and SD Card. FTP is the default.
If you select HTTPS, the Upload File link becomes active. Select the link to

open a popup window that allows you to browse to a firmware update file to
upload.
If you select NFS, the mount directory must be specified.

The SD Card option must be selected if an SD card is to be used.

Note: Connections available depend on the model of the SLC unit.
Displays the version of SLC firmware in bank 1.
Note: The word "current" displays next to the bank from which the SLC
booted.
Displays the version of SLC firmware in bank 2.
Displays the current setting for bank to boot from at next reboot.
If desired, select the alternate bank to boot from at next reboot.
If checked, will copy the configuration from the current bank to the bank being
updated. The two numbers are automatically generated so that the first
number is the current bank.
If checked, enables you to copy the current boot bank to the alternate boot
bank. This process takes a few minutes to complete.
Click Upload File to update the SLC firmware.
Select the NFS mounted directory from the drop-down menu.
Click to select USB port.
The IP address or host name of the server used for obtaining updates and saving
or restoring configurations. May have up to 64 alphanumeric characters; may
include hyphens and underscores.
The default path on the server for obtaining firmware update files and getting and
putting configuration save files.
The userid for accessing the FTP server. May be blank.
The FTP user password.
