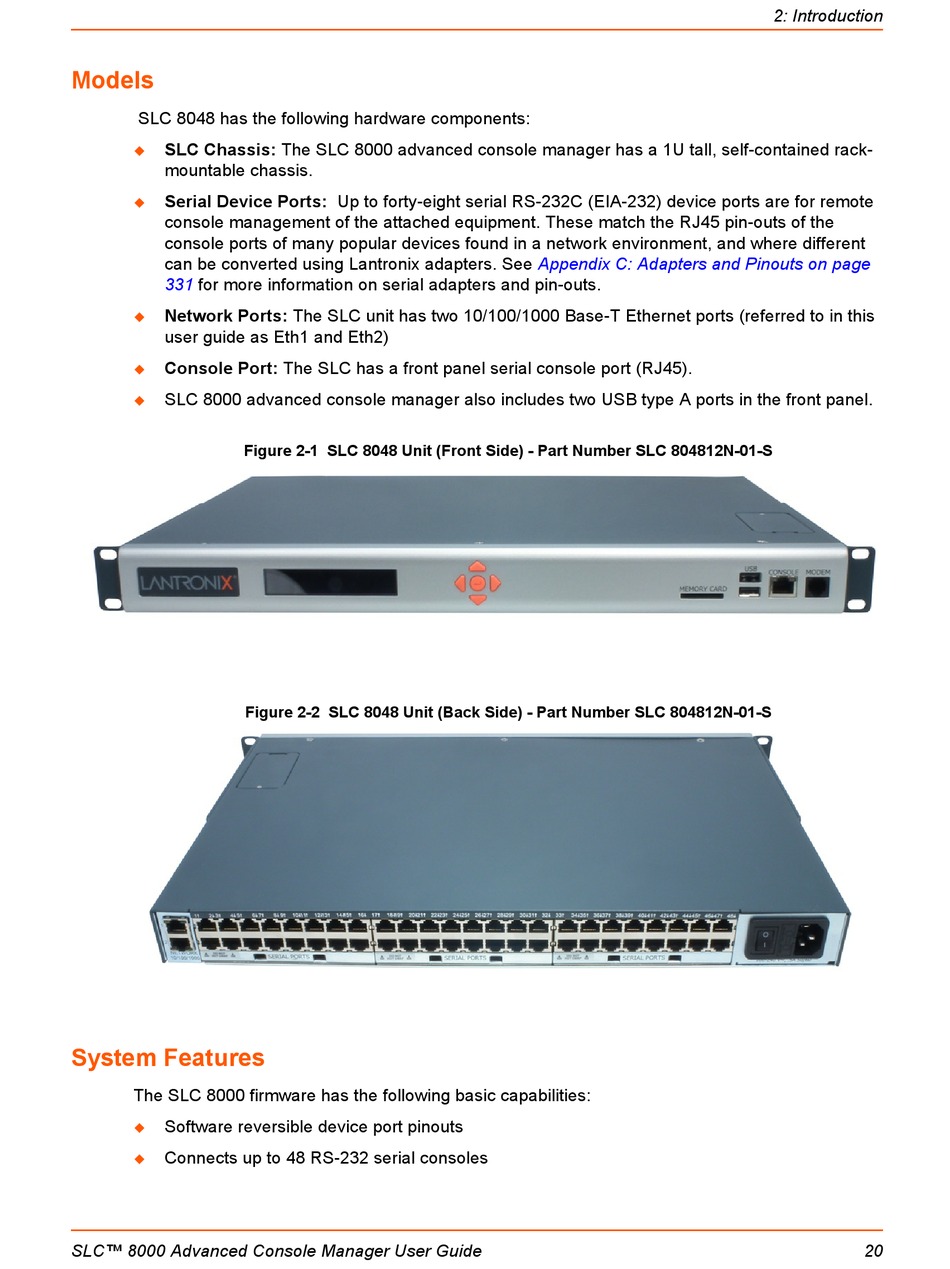

Models; System Features; Figure 2-1 Slc 8048 Unit (Front Side) - Part Number Slc 804812N-01-S; Figure 2-2 Slc 8048 Unit (Back Side) - Part Number Slc 804812N-01-S - Lantronix SLC 8000 User Manual

Models

SLC 8048 has the following hardware components:
SLC Chassis: The SLC 8000 advanced console manager has a 1U tall, self-contained rack-

mountable chassis.
Serial Device Ports: Up to forty-eight serial RS-232C (EIA-232) device ports are for remote

console management of the attached equipment. These match the RJ45 pin-outs of the
console ports of many popular devices found in a network environment, and where different
can be converted using Lantronix adapters. See
331 for more information on serial adapters and pin-outs.
Network Ports: The SLC unit has two 10/100/1000 Base-T Ethernet ports (referred to in this

user guide as Eth1 and Eth2)
Console Port: The SLC has a front panel serial console port (RJ45).

SLC 8000 advanced console manager also includes two USB type A ports in the front panel.


Figure 2-1 SLC 8048 Unit (Front Side) - Part Number SLC 804812N-01-S

Figure 2-2 SLC 8048 Unit (Back Side) - Part Number SLC 804812N-01-S

System Features

The SLC 8000 firmware has the following basic capabilities:
Software reversible device port pinouts

Connects up to 48 RS-232 serial consoles

