3. Connect the adapter to the serial console port on the serial device as shown in

Table 3-4 Console Port and Device Port (DTE) - Reverse Pinout Disabled

SLC™ 8000 Advanced Console Manager User Guide

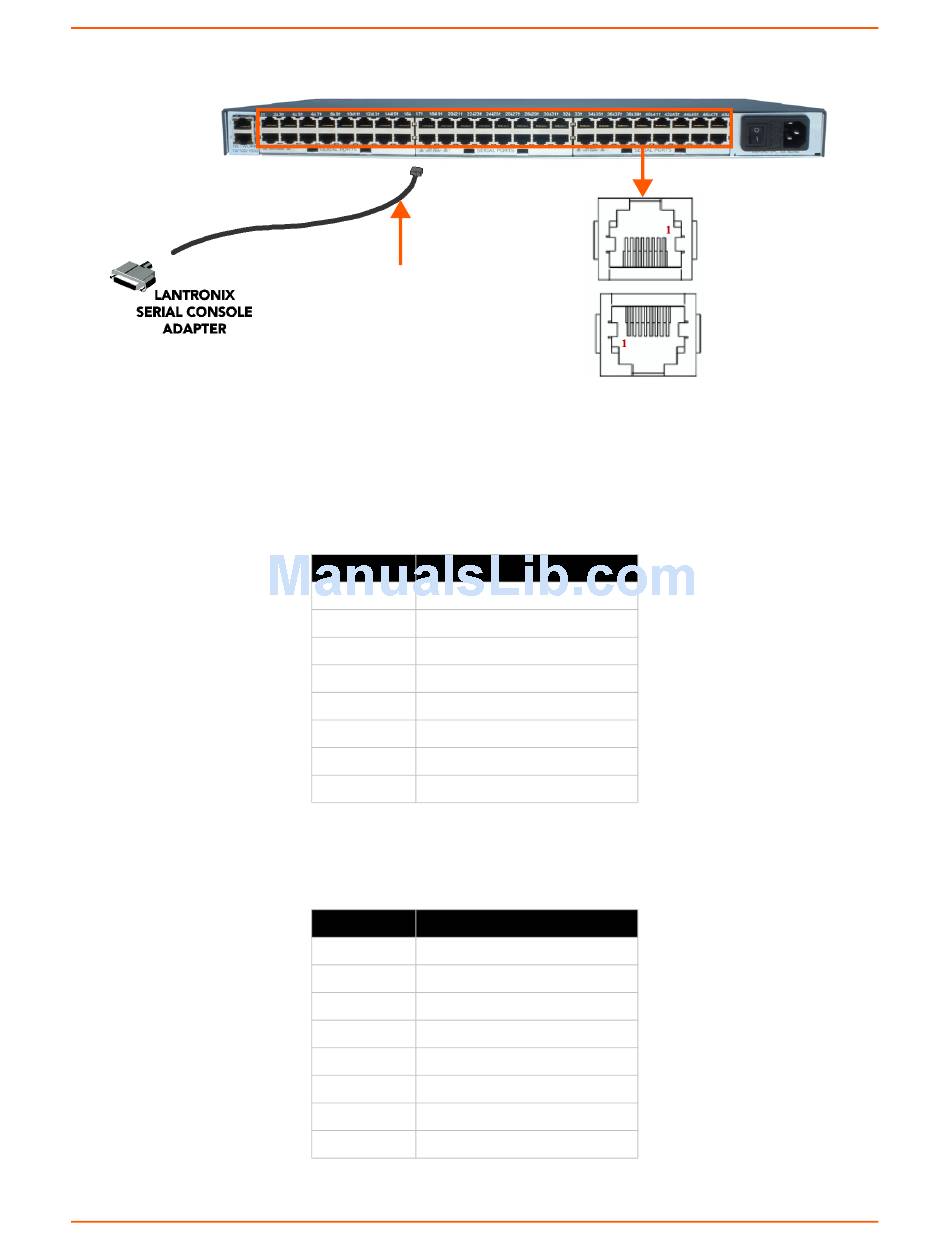

Figure 3-3 Device Port Connections (Back Side)

RJ45
CABLE
Pin Number
Description
1
RTS (output)
2
DTR (output)
3
TXD (output)
4
Ground
5
Ground
6
RXD (input)
7
DSR (input)
8
CTS (input)

Table 3-5 Device Port (DCE) - Reverse Pinout Enabled

Pin Number
Description
1
CTS (input)
2
DSR (input)
3
RXD (input)
4
Ground
5
Ground
6
TXD (output)
7
DTR (output)
8
RTS (output)
