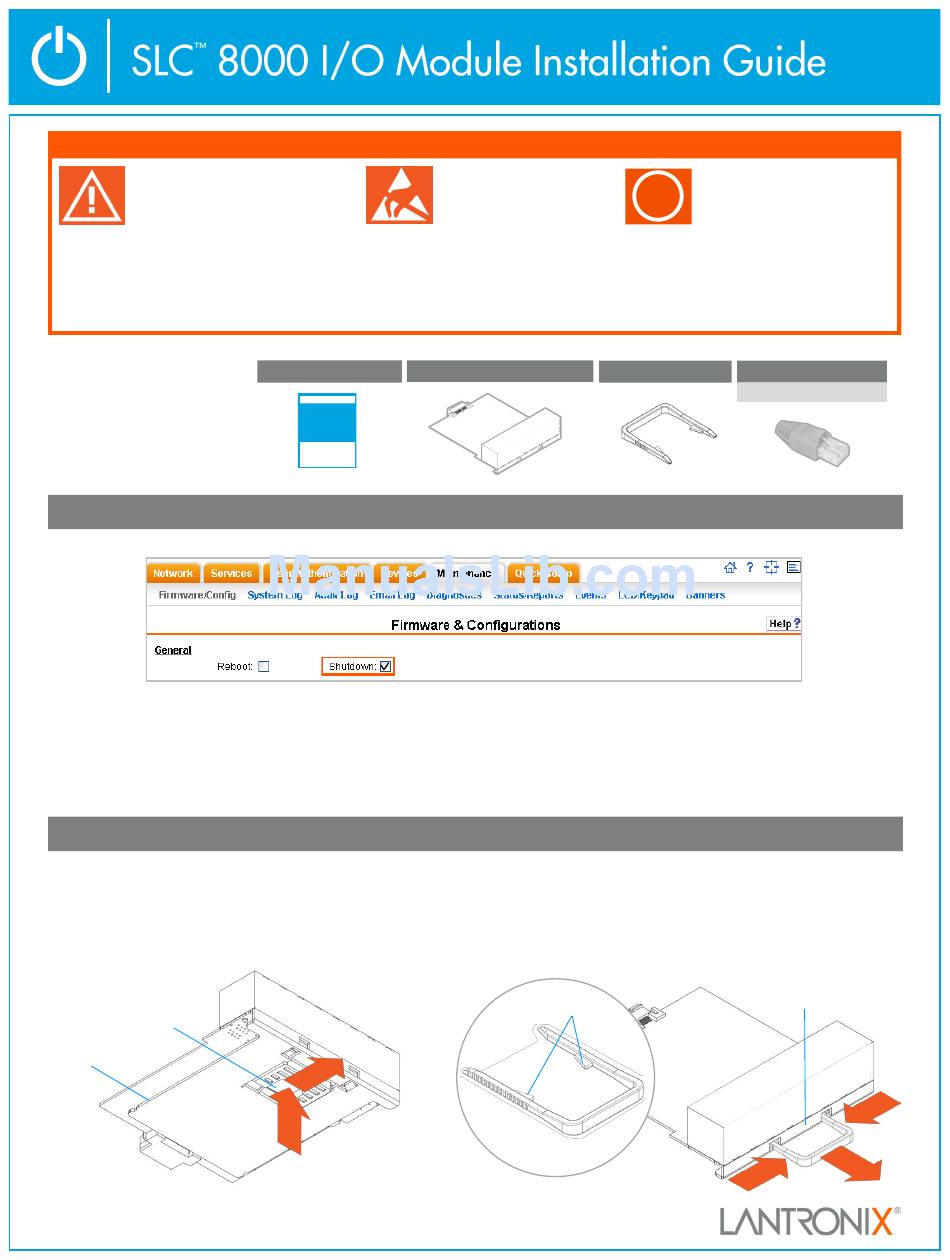

Lantronix SLC 8000 Installation Manual

DISCONNECT ALL POWER
CORDS ON THE SLC 8000
BEFORE INSTALLING THIS
MODULE TO AVOID
ELECTRICAL SHOCK. THE SLC
8000 MAY HAVE MORE
THAN ONE POWER SOURCE.
DO NOT HOT SWAP.
WHAT'S IN THE BOX
1. Shut down the SLC 8000 either via the Web Manager or the Command Line Interface and unplug all power cords.
A) Web Manager
B) Command Line Interface
admin shutdown
2. Take out the filler panel if you are adding, or take out the existing module if you are replacing.
A) Using the Release Lever
i) Press and pull: Gently press the release lever
from underneath and pull the I/O module
until it is completely removed.
Release Lever
Blade
BEFORE YOU INSTALL
THE I/O MODULE IS
ELECTROSTATIC-
SENSITIVE. ONLY
HANDLE AT A STATIC-
FREE WORKPLACE.
Installation Guide SLC 8000 I/O Module
INSTALL
GUIDE
Note: When you use this command to shut down the SLC unit, the LCD front panel
displays "Shutting down the SLC," followed by a pause, and then "Shutdown
complete." When "Shutdown complete" displays, it is safe to power off the SLC
console manager. This command is not available on the web page.
B) Using the Extractor (if the release lever is not accessible)
F/W
Module Extractor
i) Insert: Insert it until the keys are behind the metal panel.
ii) Pinch and pull: Gently pinch the extractor from both sides
and pull until the I/O module is completely removed.
Keys
Extractor
THE USB I/O MODULE
(FRUSB1601) REQUIRES
SLC 8000 FIRMWARE 7.2
OR ABOVE. DOWNLOAD
THE LATEST VERSION AT:
www.lantronix.com/
support/downloads
RJ45 Loopback Cable
Only for RJ45 I/O Module
Metal Plate
