2: Introduction

Network Connections

The SLC 8000 network interfaces are 10/100/1000 Base-T Ethernet for use with a conventional
Ethernet network as shown in Figure 2-6. Use standard RJ45-terminated cables, like Category 5 or
6 patch cable. Additionally, CAT5E or better cables are recommended for 1000 Base Ethernet.
Network parameters must be configured before the SLC console manager can be accessed over the
network.
Note: One possible use for the two Ethernet ports is to have one port on a private,
secure network and the other on a public, unsecured network.

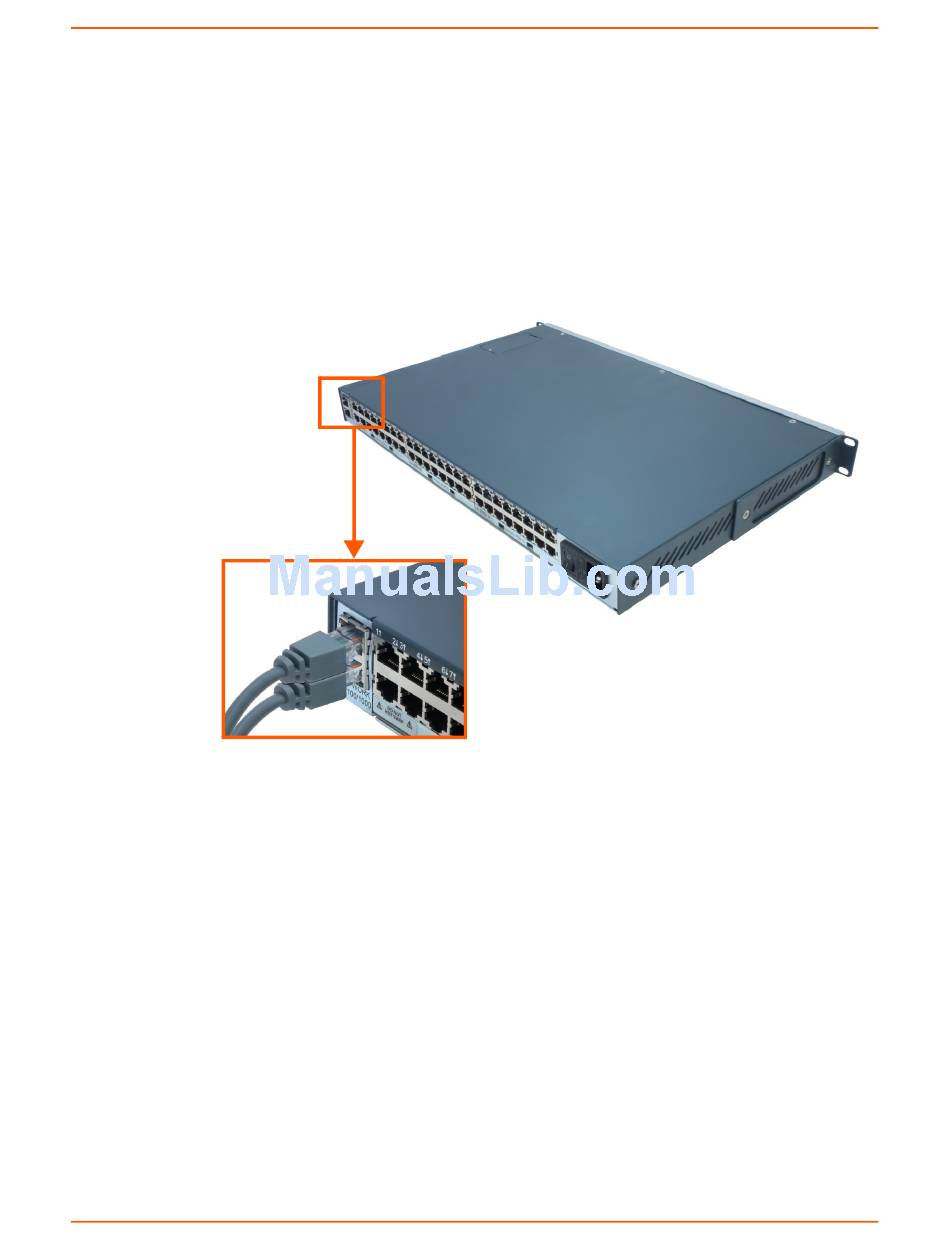

Figure 2-6 Network Connection

SLC™ 8000 Advanced Console Manager User Guide 24
