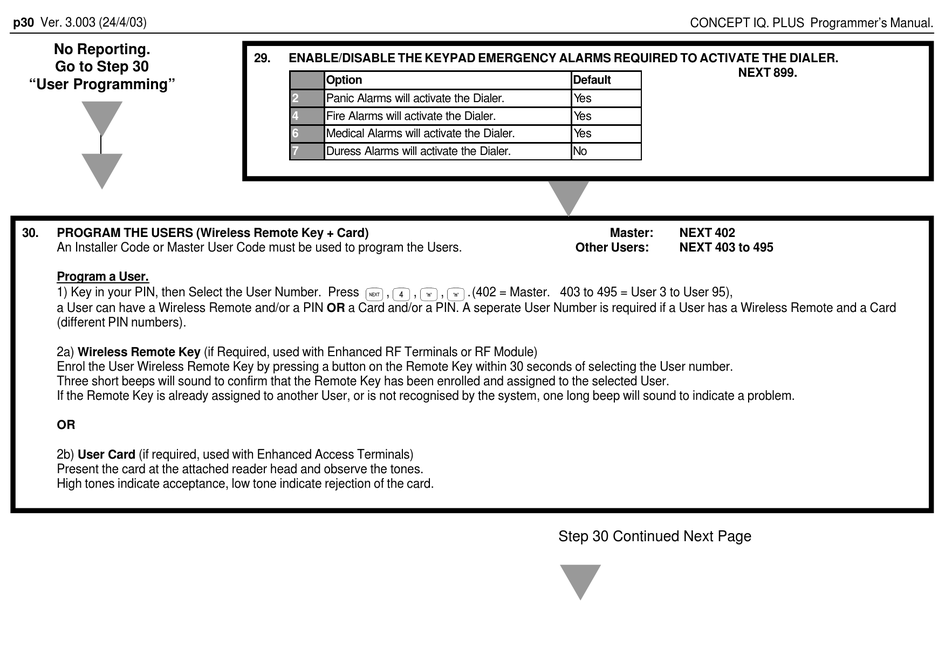

Inner Range CONCEPT IQ. PLUS Programmer's Manual page 30

p30 Ver. 3.003 (24/4/03)
No Reporting.
Go to Step 30
"User Programming"
t
t
30. PROGRAM THE USERS (Wireless Remote Key + Card)
An Installer Code or Master User Code must be used to program the Users.
Program a User.
1) Key in your PIN, then Select the User Number. Press
a User can have a Wireless Remote and/or a PIN OR a Card and/or a PIN. A seperate User Number is required if a User has a Wireless Remote and a Card
(different PIN numbers).
2a) Wireless Remote Key (if Required, used with Enhanced RF Terminals or RF Module)
Enrol the User Wireless Remote Key by pressing a button on the Remote Key within 30 seconds of selecting the User number.
Three short beeps will sound to confirm that the Remote Key has been enrolled and assigned to the selected User.
If the Remote Key is already assigned to another User, or is not recognised by the system, one long beep will sound to indicate a problem.
OR
2b) User Card (if required, used with Enhanced Access Terminals)
Present the card at the attached reader head and observe the tones.
High tones indicate acceptance, low tone indicate rejection of the card.
29. ENABLE/DISABLE THE KEYPAD EMERGENCY ALARMS REQUIRED TO ACTIVATE THE DIALER.
Option
2 Panic Alarms will activate the Dialer.
4 Fire Alarms will activate the Dialer.
6 Medical Alarms will activate the Dialer.
7 Duress Alarms will activate the Dialer.
, ,
Default
Yes
Yes
Yes
No
t
Master:
Other Users:
, .(402 = Master. 403 to 495 = User 3 to User 95),
Step 30 Continued Next Page
t
CONCEPT IQ. PLUS Programmer's Manual.
NEXT 899.
NEXT 402
NEXT 403 to 495
