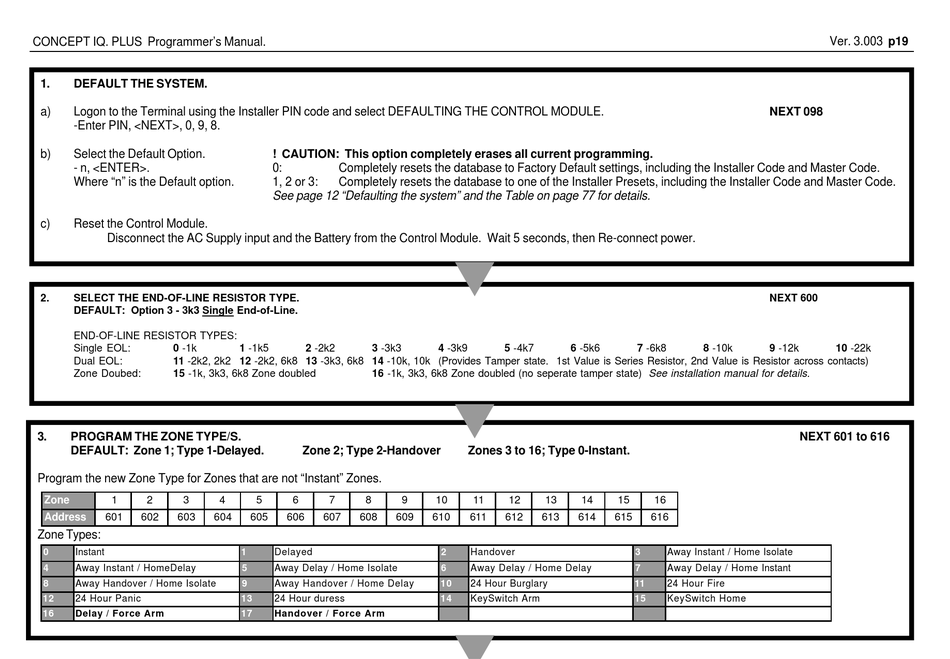

CONCEPT IQ. PLUS Programmer's Manual.
1.
DEFAULT THE SYSTEM.
a)
Logon to the Terminal using the Installer PIN code and select DEFAULTING THE CONTROL MODULE.
-Enter PIN, <NEXT>, 0, 9, 8.
b)
Select the Default Option.
- n, <ENTER>.
Where "n" is the Default option.
c)
Reset the Control Module.
Disconnect the AC Supply input and the Battery from the Control Module. Wait 5 seconds, then Re-connect power.
2.
SELECT THE END-OF-LINE RESISTOR TYPE.
DEFAULT: Option 3 - 3k3 Single End-of-Line.
END-OF-LINE RESISTOR TYPES:
Single EOL:
0 -1k
Dual EOL:
11 -2k2, 2k2 12 -2k2, 6k8 13 -3k3, 6k8 14 -10k, 10k (Provides Tamper state. 1st Value is Series Resistor, 2nd Value is Resistor across contacts)
Zone Doubed:
15 -1k, 3k3, 6k8 Zone doubled
3.
PROGRAM THE ZONE TYPE/S.
DEFAULT: Zone 1; Type 1-Delayed.
Program the new Zone Type for Zones that are not "Instant" Zones.
Zone
1
2
3
Address
601
602
603
Zone Types:
0
Instant
4
Away Instant / HomeDelay
8
Away Handover / Home Isolate
12
24 Hour Panic
16
Delay / Force Arm
! CAUTION: This option completely erases all current programming.
0:
Completely resets the database to Factory Default settings, including the Installer Code and Master Code.
1, 2 or 3:
Completely resets the database to one of the Installer Presets, including the Installer Code and Master Code.
See page 12 "Defaulting the system" and the Table on page 77 for details.
1 -1k5
2 -2k2
3 -3k3
16 -1k, 3k3, 6k8 Zone doubled (no seperate tamper state) See installation manual for details.
Zone 2; Type 2-Handover
4
5
6
7
8
604
605
606
607
608
1
Delayed
5
Away Delay / Home Isolate
9
Away Handover / Home Delay
13
24 Hour duress
17
Handover / Force Arm
t
4 -3k9
5 -4k7
6 -5k6
t
Zones 3 to 16; Type 0-Instant.
9
10
11
12
13
609
610
611
612
613
2
Handover
6
Away Delay / Home Delay
10
24 Hour Burglary
14
KeySwitch Arm
t
7 -6k8
8 -10k
14
15
16
614
615
616
3
Away Instant / Home Isolate
7
Away Delay / Home Instant
11
24 Hour Fire
15
KeySwitch Home
Ver. 3.003 p19
NEXT 098
NEXT 600
9 -12k
10 -22k
NEXT 601 to 616
