CONCEPT IQ. PLUS Programmer's Manual.

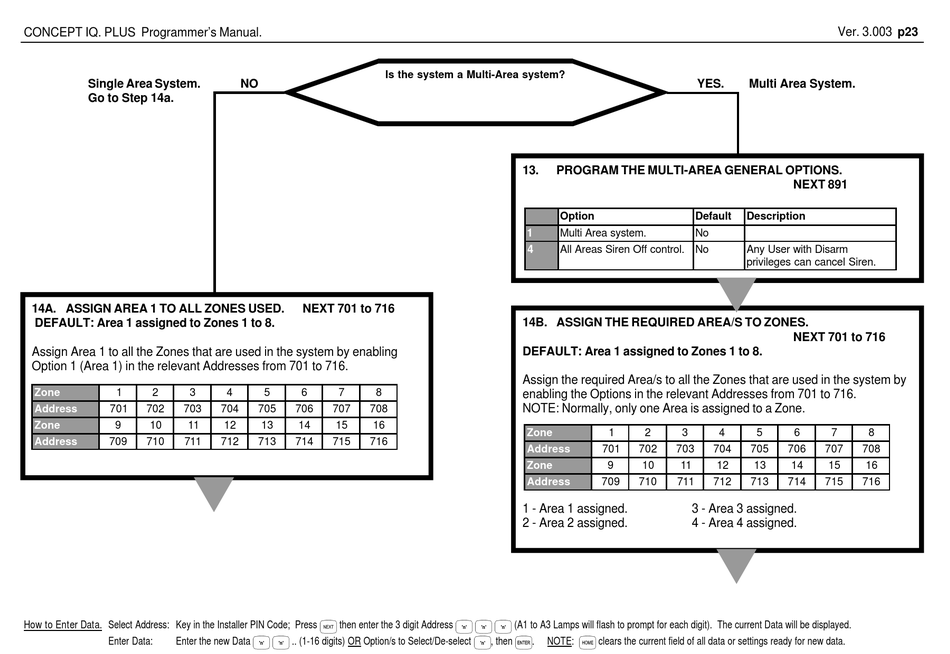

Single Area System.
Go to Step 14a.
14A. ASSIGN AREA 1 TO ALL ZONES USED.
DEFAULT: Area 1 assigned to Zones 1 to 8.
Assign Area 1 to all the Zones that are used in the system by enabling
Option 1 (Area 1) in the relevant Addresses from 701 to 716.
Zone 1 2 3
Address 701 702 703
Zone 9 10 11
Address 709 710 711
t
How to Enter Data. Select Address: Key in the Installer PIN Code; Press
Enter Data: Enter the new Data
Is the system a Multi-Area system?
NO
NEXT 701 to 716
4 5 6 7 8
704 705 706 707 708
12 13 14 15 16
712 713 714 715 716
then enter the 3 digit Address
.. (1-16 digits) OR Option/s to Select/De-select
13. PROGRAM THE MULTI-AREA GENERAL OPTIONS.
Option
1 Multi Area system.
4 All Areas Siren Off control. No
14B. ASSIGN THE REQUIRED AREA/S TO ZONES.
DEFAULT: Area 1 assigned to Zones 1 to 8.
Assign the required Area/s to all the Zones that are used in the system by
enabling the Options in the relevant Addresses from 701 to 716.
NOTE: Normally, only one Area is assigned to a Zone.
Zone 1 2
Address 701 702
Zone 9 10
Address 709 710
1 - Area 1 assigned.
2 - Area 2 assigned.
(A1 to A3 Lamps will flash to prompt for each digit). The current Data will be displayed.
, then . NOTE: clears the current field of all data or settings ready for new data.
Ver. 3.003 p23
YES. Multi Area System.
NEXT 891
