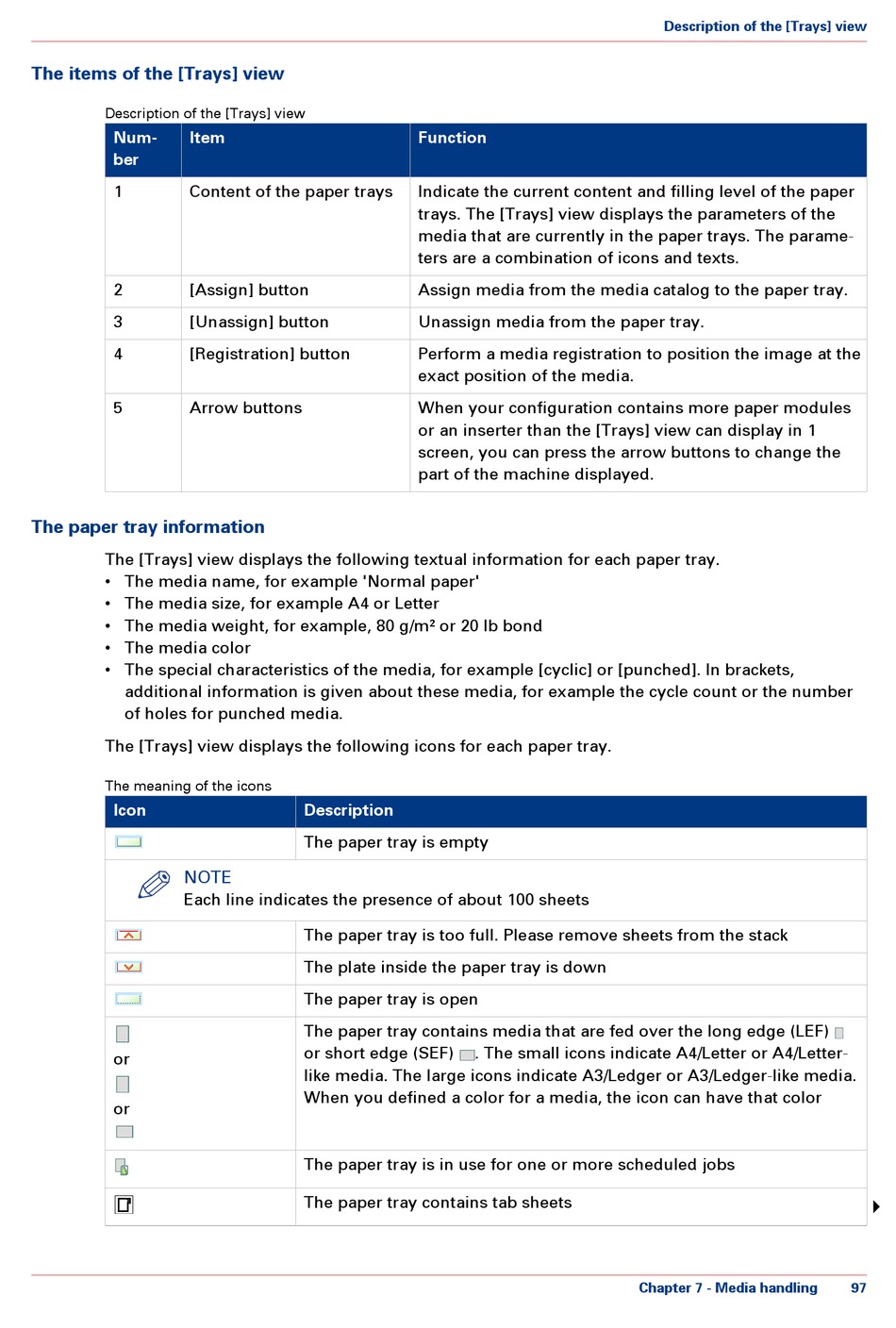

Canon imagePRESS C7011VPS series Operation Manual page 97

The items of the [Trays] view
Description of the [Trays] view
Num‐ Item
ber
1 Content of the paper trays
2 [Assign] button
3 [Unassign] button
4 [Registration] button
5 Arrow buttons
The paper tray information
The [Trays] view displays the following textual information for each paper tray.
• The media name, for example 'Normal paper'
• The media size, for example A4 or Letter
• The media weight, for example, 80 g/m² or 20 lb bond
• The media color
• The special characteristics of the media, for example [cyclic] or [punched]. In brackets,
additional information is given about these media, for example the cycle count or the number
of holes for punched media.
The [Trays] view displays the following icons for each paper tray.
The meaning of the icons
Icon
NOTE
Each line indicates the presence of about 100 sheets
or
or
Function
Indicate the current content and filling level of the paper
trays. The [Trays] view displays the parameters of the
media that are currently in the paper trays. The parame-
ters are a combination of icons and texts.
Assign media from the media catalog to the paper tray.
Unassign media from the paper tray.
Perform a media registration to position the image at the
exact position of the media.
When your configuration contains more paper modules
or an inserter than the [Trays] view can display in 1
screen, you can press the arrow buttons to change the
part of the machine displayed.
Description
The paper tray is empty
The paper tray is too full. Please remove sheets from the stack
The plate inside the paper tray is down
The paper tray is open
The paper tray contains media that are fed over the long edge (LEF)
or short edge (SEF)
like media. The large icons indicate A3/Ledger or A3/Ledger-like media.
When you defined a color for a media, the icon can have that color
The paper tray is in use for one or more scheduled jobs
The paper tray contains tab sheets
. The small icons indicate A4/Letter or A4/Letter-
