IMPORTANT
• Make sure to align the size change plate properly with the marks for the desired paper size.
There are two marks for paper size at the top of the paper tray. Align the size change plate
with the desired marks.
• Make sure that the size change plate is properly aligned with the marks for the desired paper
size. If the size change plate is not properly aligned, the paper tray may become damaged.
8.

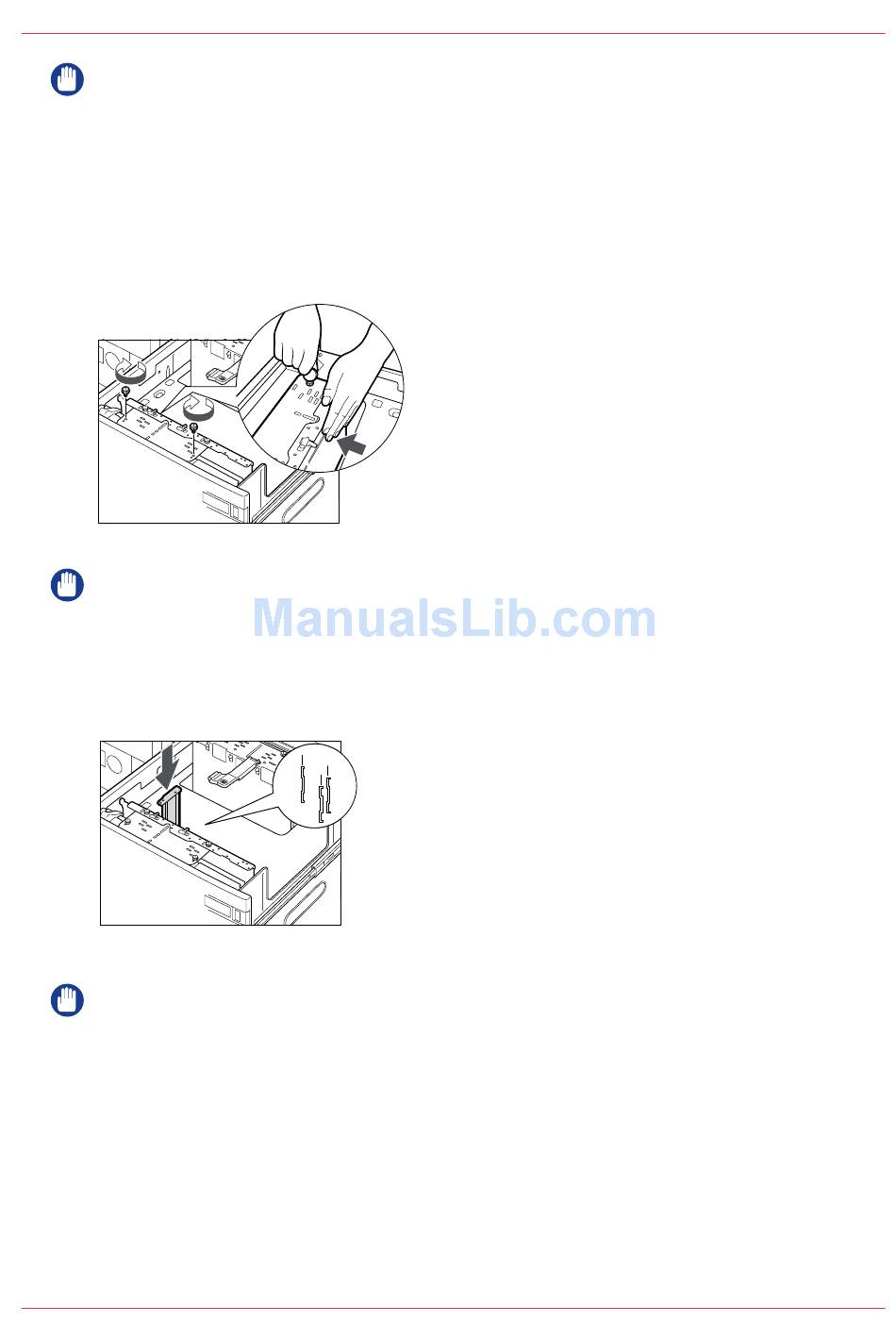

Fix the outer size change plate with the two blue screws using a coin or something similar, while
slightly holding its center front portion and pressing it towards you.
Fasten the left blue screw before fastening the right blue screw.
IMPORTANT
If you fasten the blue screw without pressing the outer size change plate towards you, the plate
may be fixed at an angle. If you use the paper tray with a tilted outer size change plate, paper
may be fed as slanted, poor print quality may result, and paper jams may occur. Therefore, make
sure to fasten the blue screw while pressing the outer size change plate towards you.
9.
Align the rear edge retainer with the marks for the desired paper size.
IMPORTANT
If the rear edge retainer is not aligned properly, paper may become jammed, the quality of the
image may be degraded, or the inside of the main unit may become dirty. Be sure to load paper
with the rear edge retainer properly aligned with the paper size marks on the top and base of the
paper tray.
10.
Fix the rear edge retainer with the blue screw using a coin or something similar.
B5
LTR
A4
Adjust the media size for the bulk media module (optional)
Chapter 7 - Media handling
125
