Adjust the outer size change plate of the bulk paper module (optional)

Adjust the outer size change plate of the bulk paper module
(optional)
Introduction
When using special types of paper, such as coated paper, the paper size may be slightly different
from standard paper sizes, and this may cause problems. Adjusting the width between the size
change plates can solve the following problems due to the paper size.
• If the paper size is larger than a standard paper size:
Paper jams may occur if the space between the size change plates and the paper is too narrow.
Make the space between the size change plates and the paper wider.
• If the paper size is smaller than a standard paper size:
The entire printed area may be shifted vertically to the top or bottom, or may be slanted if the
space between the size change plates and the paper is too wide. In this case, make the space
between the size change plates and the paper narrower.
Illustration
4

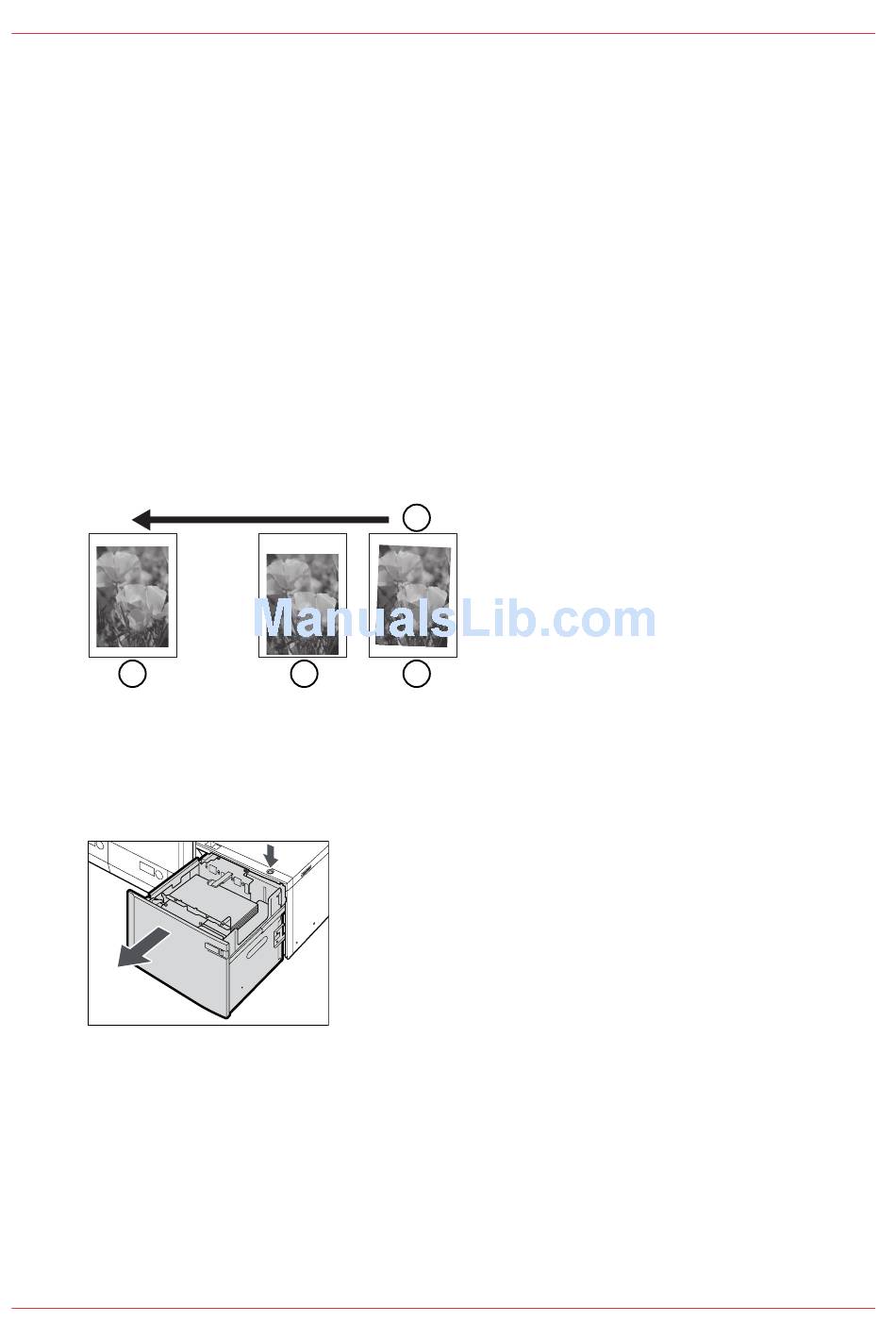

[46] The direction of the paper transport (1) and the position of the image: slanted (2), shifted (3) and normal (4)
Procedure
1.
Press the open button to open the paper tray.
2. Load a stack of paper into the paper tray, so that the height of the paper stack does not exceed 10
mm / 3/8".
130 Chapter 7 - Media handling
1
3 2
