Maintain the [Color & information bars] (optional)
Introduction
Color and information bars are used to control the print process. Use a color bar to check, for
example, ink density, dot gain, and contrast. You can import and export color bars. With the
information bar you can print the settings you use for a print job. Both the color and information
bars are available at the printer driver, PRISMAprepare, the operator panel and the automated
workflows.
Procedure
1. From the navigation bar, select the [Color] tab.
2.
From the [Color] tab, select [Color & information bars].
The [Color & information bars] window appears.

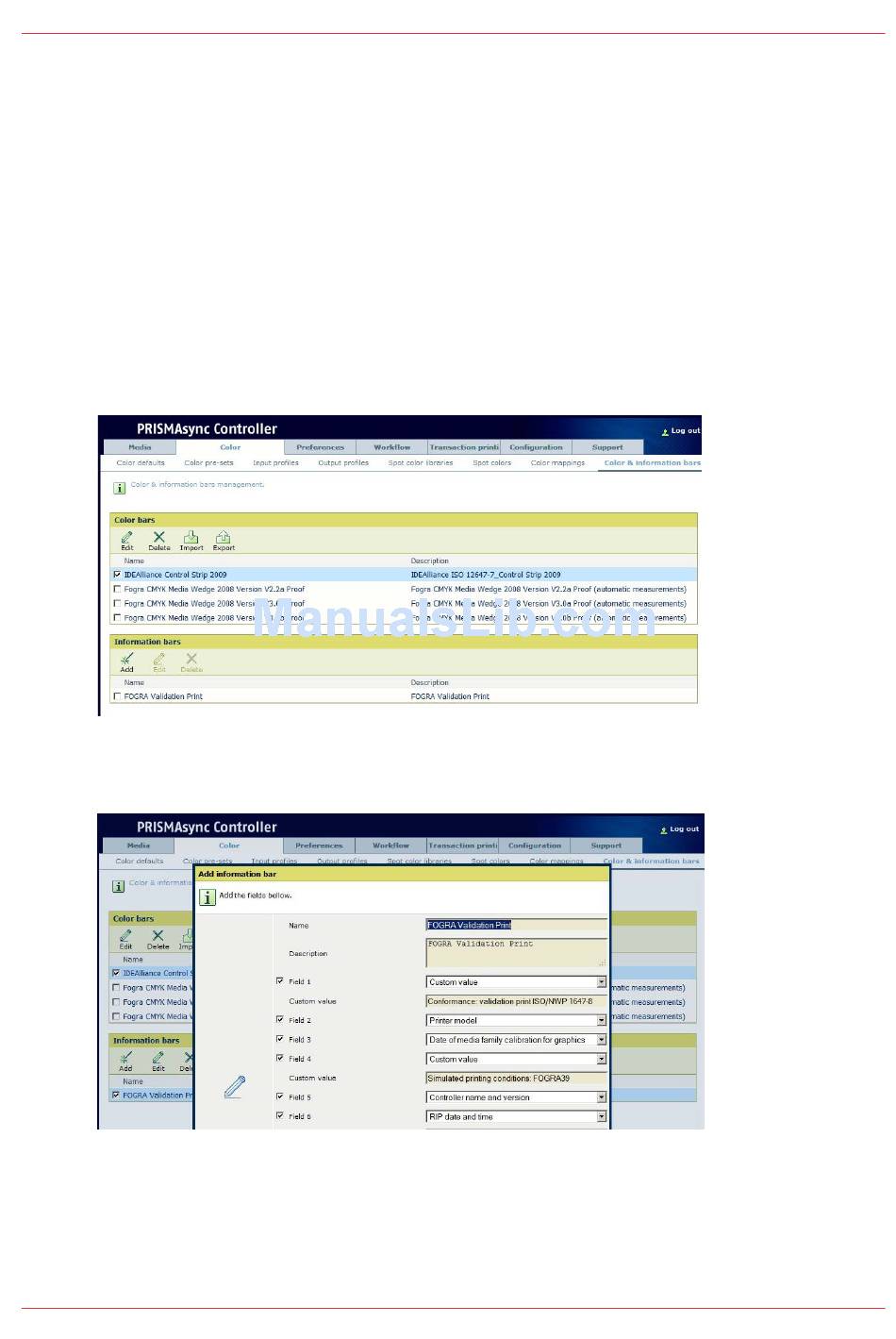

[31] The [Color & information bars] window
3.
From the toolbar, select the required option to maintain the color and information bars.
[32] The [Add information bar] option
Maintain the [Color & information bars] (optional)
Chapter 4 - Operating concept 63
