8
. DRIVE AND DRIVEN PULLEYS/
KICK STARTER

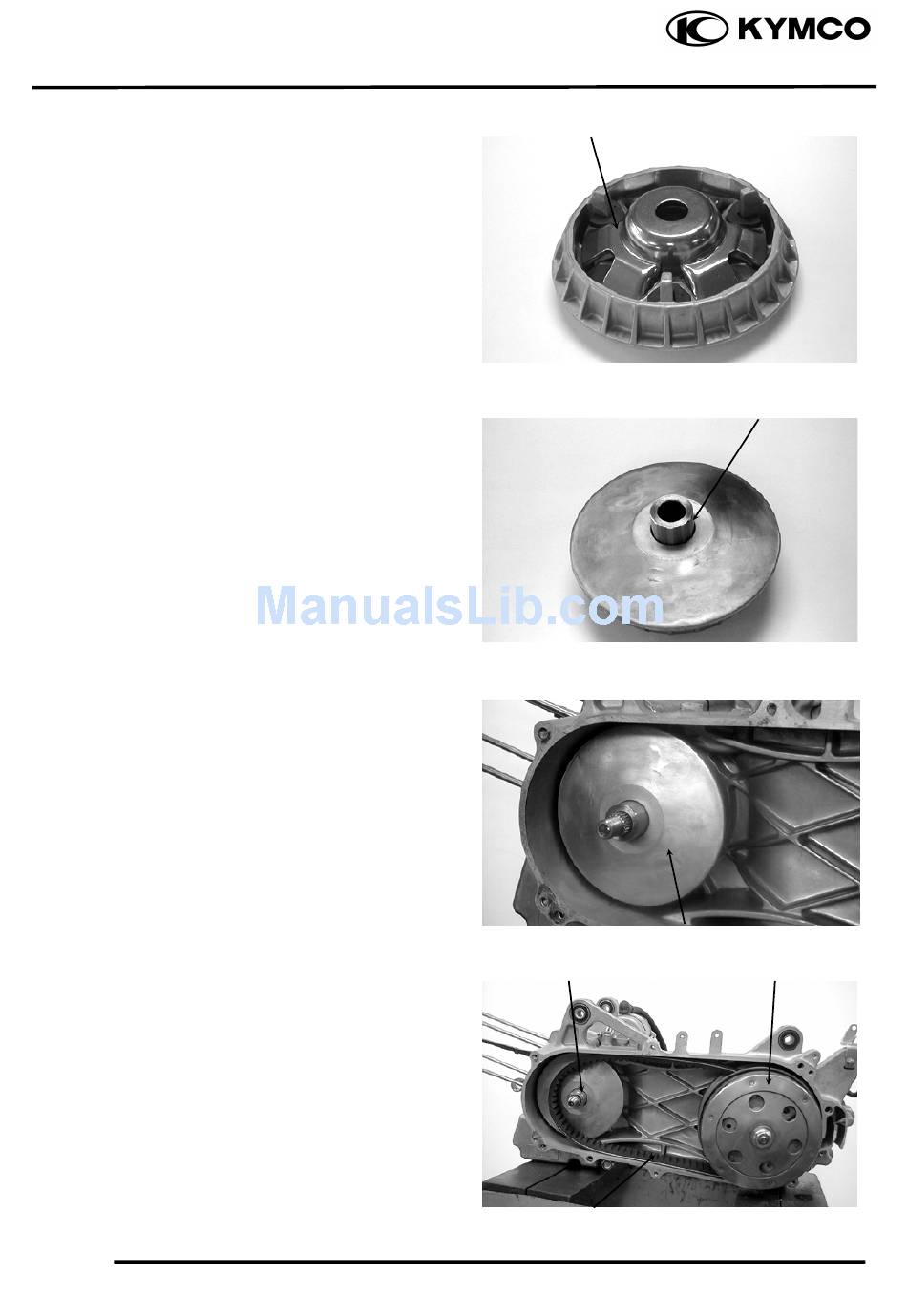

Install the ramp plate.
Insert the drive pulley collar into the movable
drive face.
INSTALLATION
Install the movable drive face onto the
crankshaft.
Lay the drive belt on the driven pulley.
Set the drive belt on the drive pulley collar.
8-7
Ramp Plate
Movable Drive Face Assembly
Drive Pulley Collar
Drive Belt
GRAND DINK 250
Drive Pulley Collar
Driven Pulley
