13
. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK

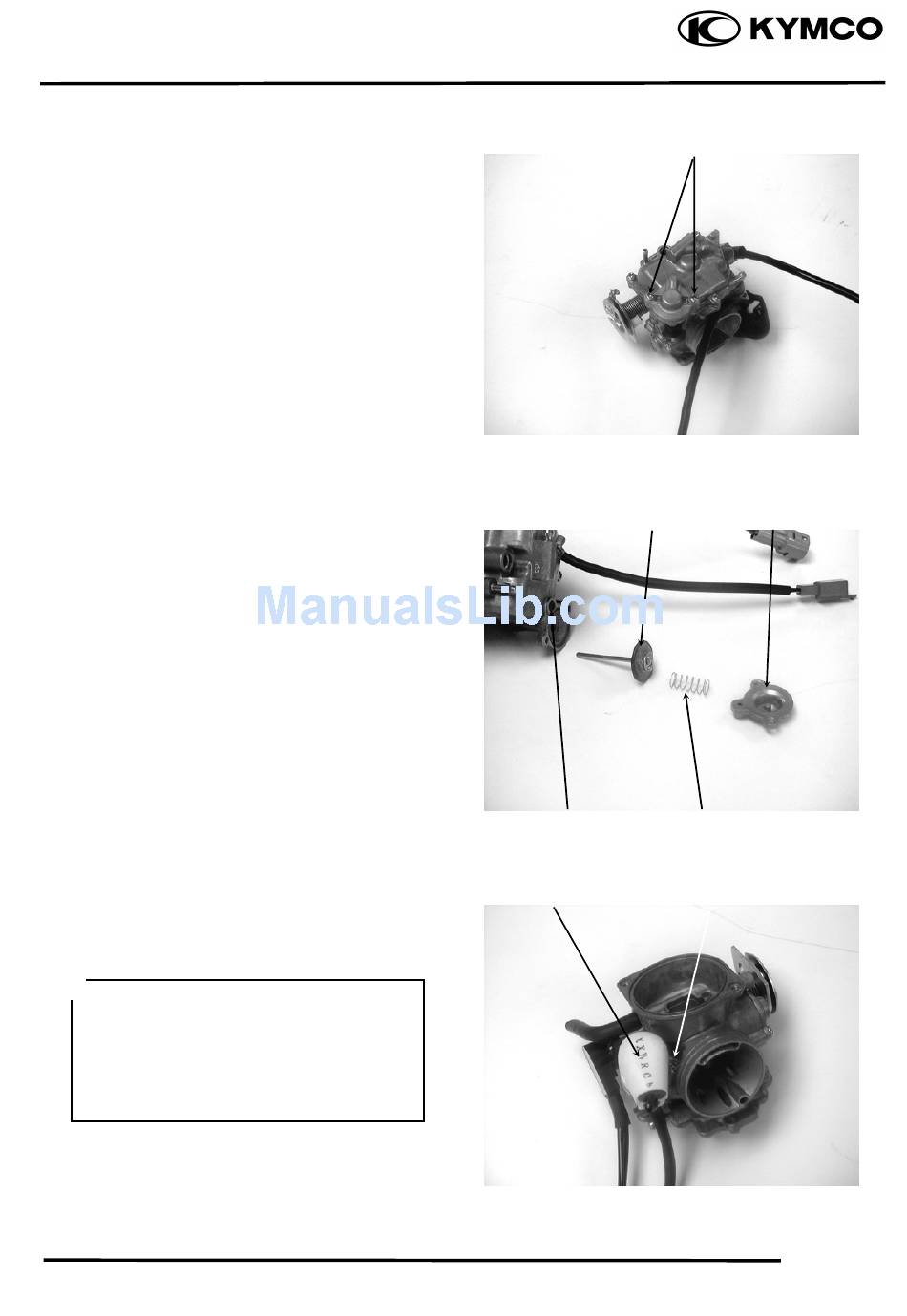

ACCELERATING PUMP
DISASSEMBLY
Remove the two accelerating pump cover
screws and accelerating pump cover.
Remove the spring and accelerating pump
diaphragm.
INSPECTION
Inspect the accelerating pump diaphragm for
cracks, damage or deterioration.
if necessary.
Assemble the accelerating pump in the
reverse order of disassembly.
AUTO BYSTARTER INSTALLATION
Install the auto bystarter and set plate.
Install and tighten the two screws.
• Insert the auto bystarter into the
carburetor body until it bottoms and
position the set plate into the upper
groove in the bystarter.
• Install the set plate with its round face
facing down.
Replace
Auto Bystarter
GRAND DINK 250
Screws
Diaphragm
O-ring
Spring
Screws
Cover
13-14
