. COOLING SYSTEM

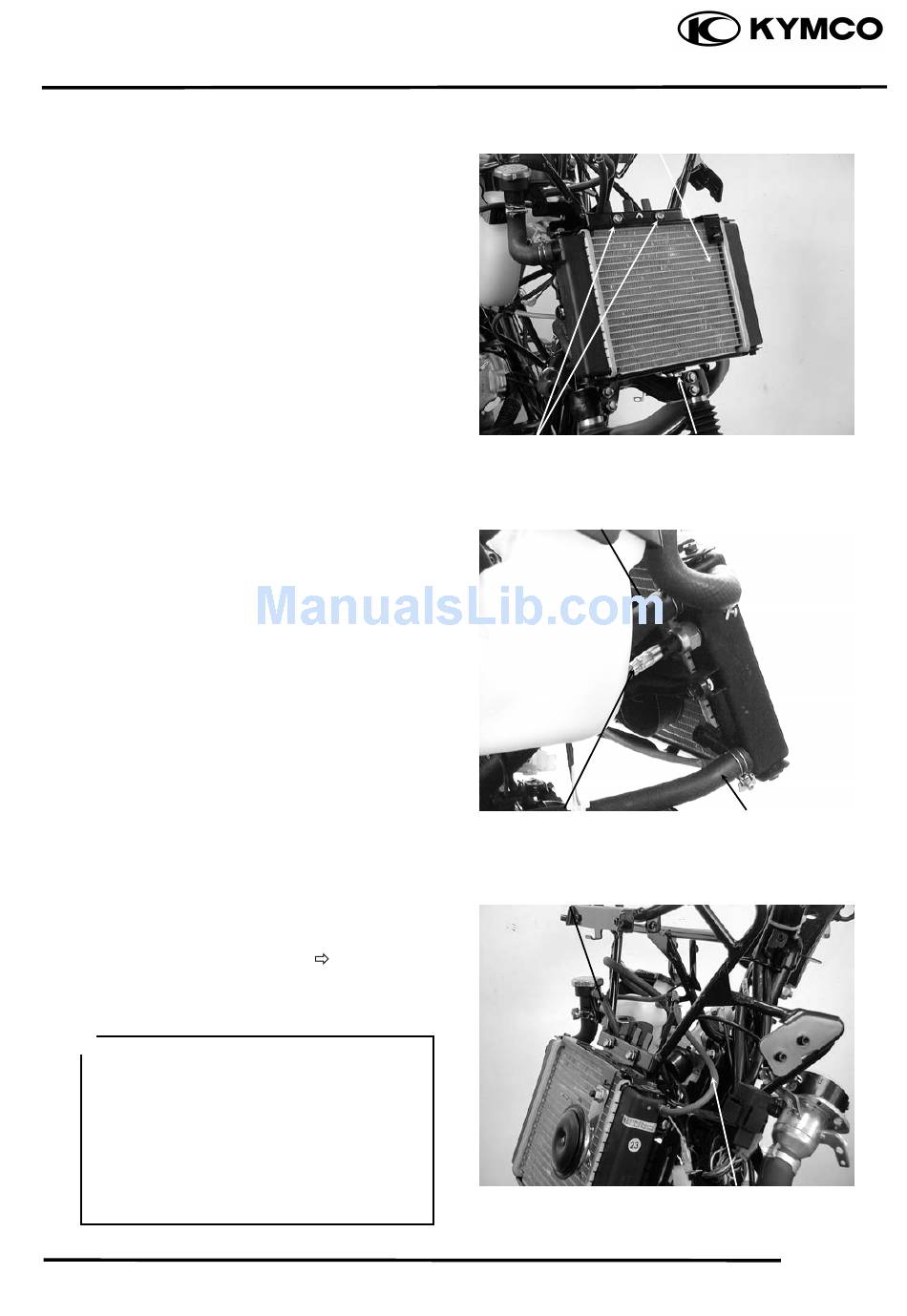

RADIATOR INSTALLATION
Install the radiator on the radiator bracket
with the two bolts and one nut.
Connect the upper and lower hoses and
secure them with hose bands.
Connect the thermostatic switch wire and
fan motor wire couplers.
Connect the overflow tube and secure with
the tube clamp.
Fill the radiator with coolant. ( 3-9)
Connect the vent tube to the radiator filler.
After installation, check for coolant leaks.
If you want to refill the coolant , the
following procedure must be checked.
1. Please make the radiator filler and the
air vent tube to be separated.
2. Then start the engine , filled in the
coolant till the coolant flowed out
from the air vent tube.
3. Put the air vent tube on.
Radiator
Bolts
.
Upper Hose
Thermostatic Switch Wire
Overflow Tube
GRAND DINK 250
Nut
Lower Hose
Air Vent Tube
12-8
