SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER
1

Introduction

The SPLITMUX-SVDVI-2 (SPLITMUX) is a high quality video processor engine. The
SPLITMUX-SVDVI-2 supports advanced functionality such as video format /scan rate
conversions, audio effects, real time image rotation (patents pending), and window effects. All
these can be controlled via IR remote and RS-232 commands. The device is small enough to fit
in tight areas. The progressive output(s) produces a high quality image using the latest 3:2 / 2:2
pull-down, motion handling, and noise reduction technologies.
•
Up to 165MHz bandwidth on the inputs and outputs.
Allows resolutions up to 1900 x 1200 @ 60Hz (narrow band sync) and can de-interlace
1080i to 1080p
•
Image enhancing capabilities including Motion Adaptive De-interlacing, Low-angle
Directional Interpolation, 3:2 & 2:2 inverse pull-down, Moiré cancellation, color correction,
adaptive flesh tone adjustments, image zoom & shrink.
•
The powerful Rotation / Picture-and-Picture (PAP) engine offers several modes of operation
including:
1. Hi-resolution Dual Image or Side-by-Side (split screen) images. Perfect for
teleconferencing, security, command and control applications.
2. Image Rotation (for digital signage)
3. Translucent Overlays to maximize main image size while still seeing PiP
•
Accepts digital and analog video inputs through a combination DVI/ RGBHV/ YPbPr
connectors and S-Video/Composite input connectors
•
Includes audio propagation delay compensation to properly sync with input video
•
Internal Event Scheduler with Real Time Clock allows Rotation Engine special effects to be
scheduled locally and among SPLITMUX units when connected via the RS-485 bus

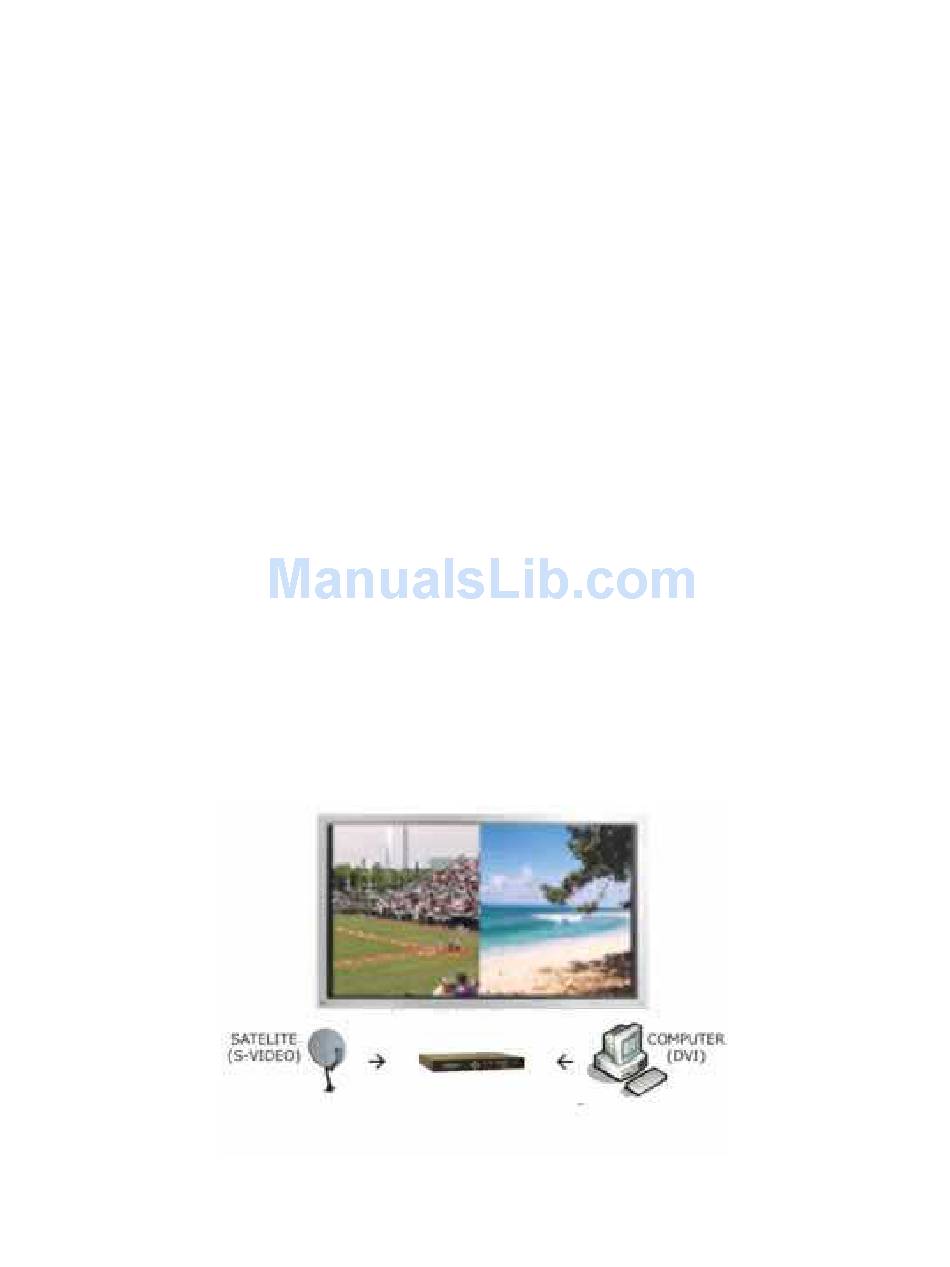

Example Setup using the SPLITMUX side by side mode:
