NTI VOPEX Series Manual

Hdmi 2.0 4k 60hz 1 in 4 out hdmi splitter
Hide thumbs Also See for VOPEX Series:
1
2
3
4
5

Advertisement

Table of Contents

®
®
V
O
P
E
X
S
e
r
i
e
s
V
O
P
E
X
S
e
r
i
e
s
VOPEX-4K18GB-4
HDMI 2.0 4K 60Hz 1 IN 4 OUT HDMI Splitter
MAN363
Rev 1/2/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOPEX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NTI VOPEX Series

Summary of Contents for NTI VOPEX Series

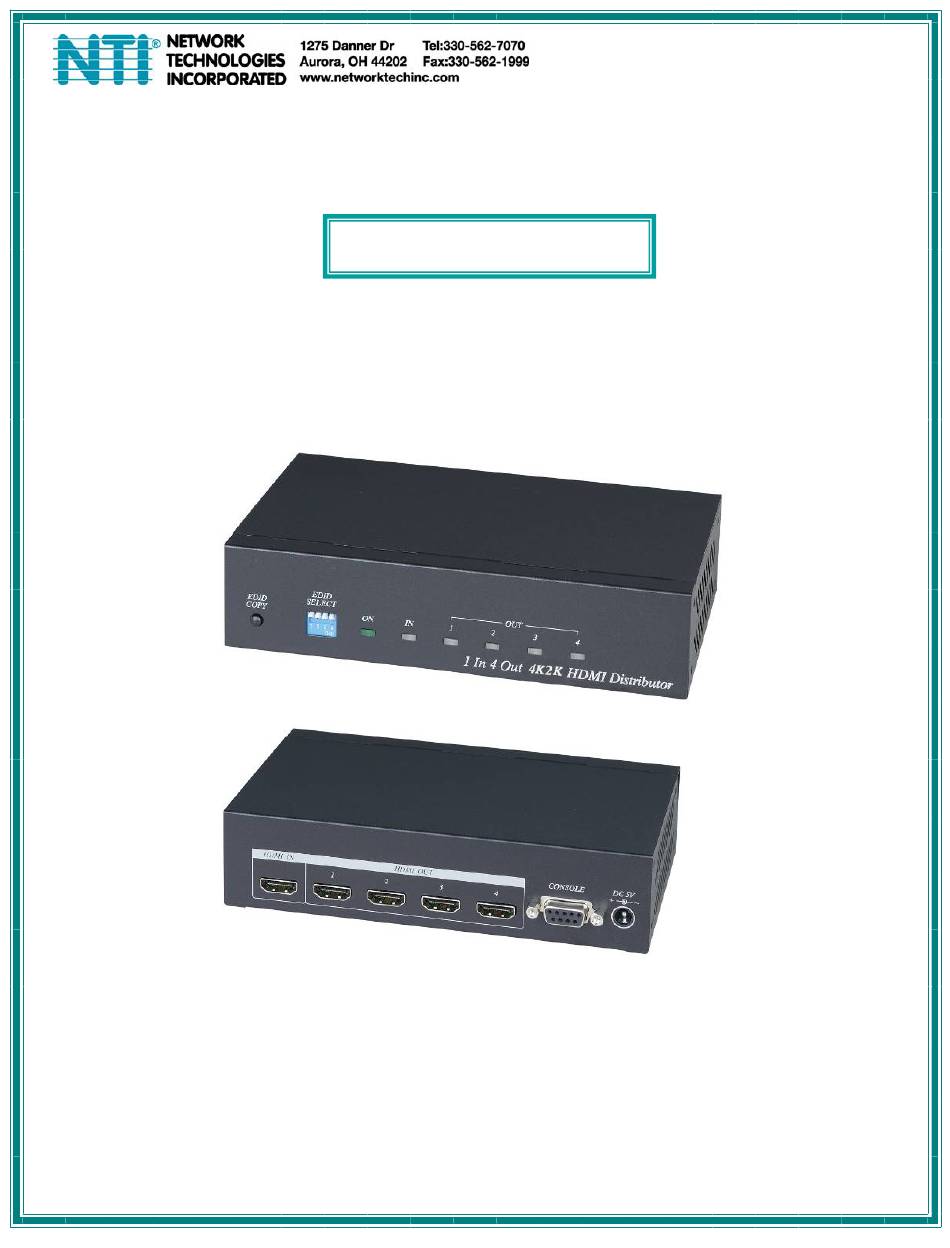

  • Page 1 ® ® VOPEX-4K18GB-4 HDMI 2.0 4K 60Hz 1 IN 4 OUT HDMI Splitter MAN363 Rev 1/2/20...
  • Page 2 Introduction VOPEX-4K18GB-4 is an HDMI 2.0/HDCP 2.2 compliant splitter supporting resolutions up to UHD 4K2K @60Hz. It equalizes the signal and distributes it to four identical outputs. Features  Connects up to 4 HDMI displays at the same time from an HDMI source. ...

  • Page 3: Panel View

    Mounting Screws and wall anchors are included to secure the VOPEX to a surface. Slots (.155 In. wide) are found on the bottom of the unit. Install the screws and attach the VOPEX. 3.938" 1.327" 1.880" Panel View VOPEX-4K18GB-4 LED Indications Label Meaning Green ON = Power ON...

  • Page 4: Dip Switch Function

    DIP Switch for EDID DIP Switch Function The default position is with DIP Switch 1~4 OFF(switches are all up) meaning EDID is set at 1080P. Position Effect Switch 1 ON Use Output 1 as EDID source Switch 2 ON Use Output 2 as EDID source Switch 3 ON Use Output 3 as EDID source Switch 4 ON...

  • Page 5: Specifications

    Humidity: up to 95% Dimensions WxDxH (In.) 6.57 x 3.96 x 1.57 (167 x 100.5 x 40mm) Weight 455g (1 lb.) Agency Approvals RoHS, CE Use NTI HDMI Cables for Input and Output cables Available Cables Supported Resolution 1080p@60Hz 4096x2160 and 3840x2160 HD-xx-MM Max.
