NTI XTENDEX Series Installation And Operation Manual
4k hdmi splitter/extender
Hide thumbs
Also See for XTENDEX Series:
- User manual (42 pages) ,
- Installation and operation manual (36 pages) ,
- Manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for NTI XTENDEX Series
Summary of Contents for NTI XTENDEX Series

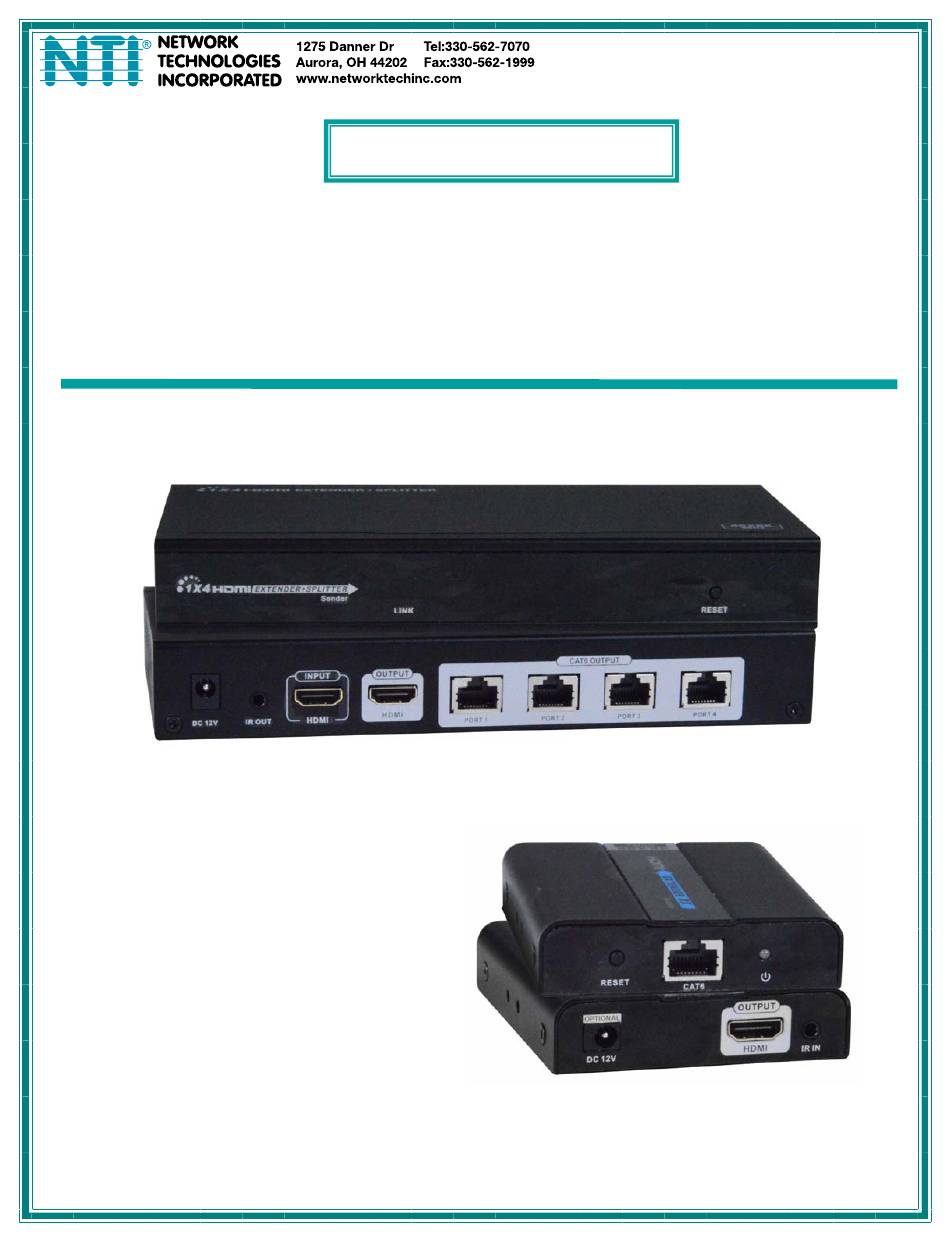

- Page 1 ® XTENDEX Series VOPEX-C64K18GB-4 4K HDMI Splitter/Extender Installation and Operation Manual VOPEX-C64K18GB-4 Local Unit Front and Rear View VOPEX-C64K18GB-4 Remote Unit Front and Rear View MAN351 Rev Date 11/13/2019...
-
Page 2: Table Of Contents
TRADEMARK VOPEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2019 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. -
Page 3: Introduction
NTI 4K HDMI SPLITTER/EXTENDER VIA CATX INTRODUCTION The VOPEX® 4K HDMI Splitter/Extender simultaneously distributes uncompressed Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video, multi-channel audio, and IR from one video source to up to four displays and speakers, each located up to 100 feet away via CATx cable. -
Page 4: Materials
Local and Remote Units should be grounded through either a display or source that uses a 3-prong power cord. If only one unit is grounded, shielded CAT5 cable should be used. Note: CATX connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 5: Features And Functions
NTI 4K HDMI SPLITTER/EXTENDER VIA CATX FEATURES AND FUNCTIONS VOPEX-C64K18GB-4 Local Unit Frontview VOPEX-C64K18GB-4 Local Unit Rearview Label Type Description Power Jack Connection Jack for 12VDC AC adapter IR Out Connection jack for IR blaster HDMI Female For connection of HDMI cable to video source... - Page 6 NTI 4K HDMI SPLITTER/EXTENDER VIA CATX VOPEX-C64K18GB-4 Remote Unit Front and Rear Views Label Type Description Button Press to Reboot the Remote Unit RJ45 Female For connection of CATx cable from the Local Unit -Red LED indicates that power is ON but no image is being received...
-
Page 7: Installation
NTI 4K HDMI SPLITTER/EXTENDER VIA CATX INSTALLATION 1. Connect the video source to the Local Unit at the "HDMI INPUT" port with HD-xx-MM cable (sold separately). 2. Connect the IR blaster to the "IR OUT" port on the Local Unit. -
Page 8: Interconnection Cable Wiring Method
NTI 4K HDMI SPLITTER/EXTENDER VIA CATX INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is as per the table and drawing below. -
Page 9: Technical Specifications
NTI 4K HDMI SPLITTER/EXTENDER VIA CATX TECHNICAL SPECIFICATIONS Local Unit Video Compatibility HDMI 2.0, HDCP 2.2 Compatible Video Connectors HDMI Female (Does not support DVI displays or sources) Video bandwidth 18 Gbps Resolution Supported Supports Ultra-HD 4Kx2K resolutions to 4096x2160 and HDTV resolutions to 1080p. -
Page 10: Warranty Information
NTI 4K HDMI SPLITTER/EXTENDER VIA CATX Distances and Resolutions for CAT5e/CAT6/CAT6a and CAT7 Cables Cable Distance Maximum Resolution 50 feet 4096x2160 and 3840x2160 at 60Hz YUV 4:4:4 (15 meters) 165 feet 4096x2160 and 3840x2160 at CAT5e UTP or STP 30Hz YUV 4:4:4 (50 meters) 200 feet 1080p at 60Hz (61 meters) 75 feet 4096x2160 and 3840x2160 at 60Hz YUV 4:4:4 (23 meters) 165 feet 4096x2160 and 3840x2160 at CAT6 STP 30Hz YUV 4:4:4 (50 meters) 200 feet (61 meters) ...
