SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

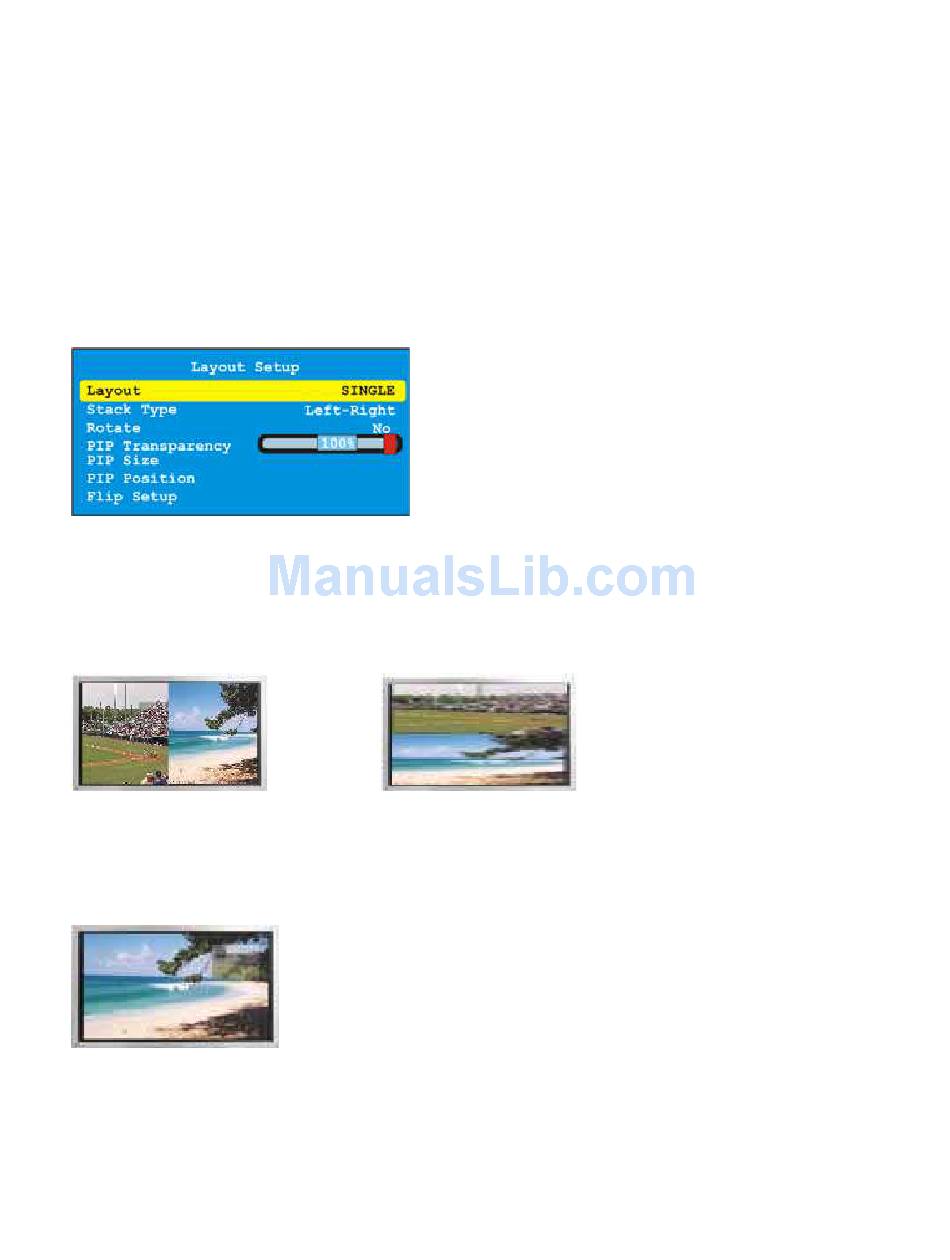

7.2.4 Layout Setup

The Layout Setup menu determines the way the windows are positioned and how many
windows are displayed.
Layout selects window layout from Single, PiP, and Dual
Stack Type selects the positions of windows 1 and 2 in Dual mode. The selections are Left-
Right and Up-Down.
Left-Right Dual Mode Up-Down Dual Mode
Rotate will rotate picture by 0, 90, 180, and 270 degrees.
PiP Transparency sets the transparency level (16 levels) of the PiP window when in PiP mode.
16
