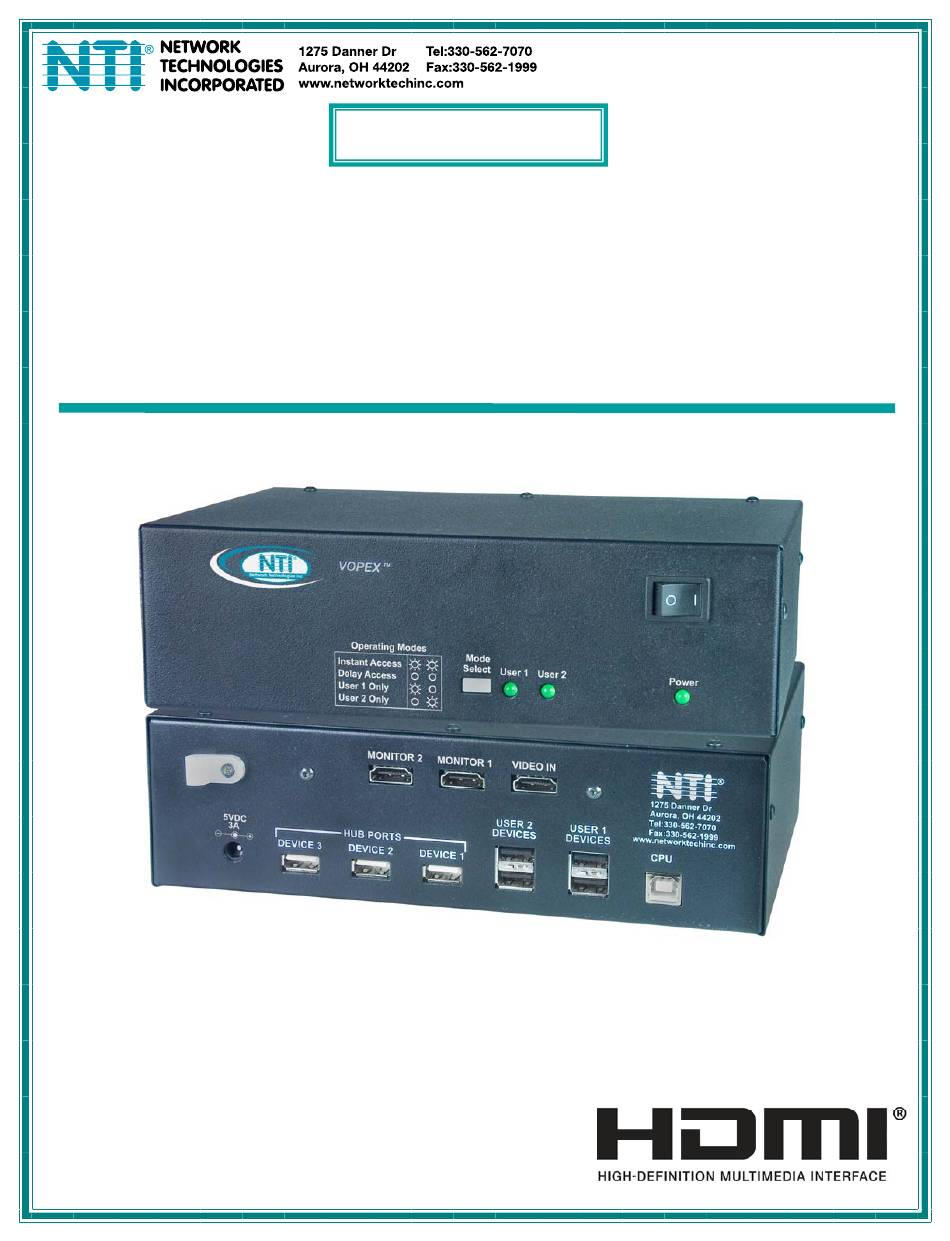

- Page 1 ® VOPEX Series VOPEX-USBH-2/4 DVI/HDMI USB KVM Splitter with Built-in Hub Installation and Operation Manual Front and Rear View of VOPEX-USBH-2 MAN123 Rev Date 12/17/2019...
- Page 2 TRADEMARK VOPEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2004-2019 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION................................1 LIMITATIONS .................................. 2 MATERIALS ..................................2 CONNECTORS AND LEDS............................2 INSTALLATION................................3 Monitor Connection..............................3 Mouse Connection............................... 3 Keyboard Connection ..............................3 CPU Connection ................................4 Hub Ports ..................................5 Power-Up ..................................6 OPERATION ................................... 7 Keyboard Command Mode............................ -
Page 4: Introduction
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER INTRODUCTION The VOPEX-USBH-2 (VOPEX) is a DVI/HDMI and USB KVM Splitter and 3-Port Hub. It enables the control of one USB enabled CPU through two separate USB keyboards, USB mice, and DVI or HDMI monitors and it enables the connection of 3 additional USB devices (other than keyboards or mice). -
Page 5: Limitations
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER LIMITATIONS The USB ports on the VOPEX are USB 1.1 compatible. Any USB 2.0 device connected to the VOPEX will be regulated to USB 1.1 speeds. MATERIALS Materials included with this kit: ... -
Page 6: Installation
Disconnect the mouse at the CPU and reconnect it to one of the female USB type A 'USER 1 DEVICES" ports on the VOPEX. Connect a second mouse (or optional USB extension cable NTI USB-A+A-5M) to the female USB type A "USER 2 DEVICES" ports on the VOPEX. -
Page 7: Cpu Connection
Figure 2- Connect the VOPEX to the CPU Note: If your CPU has an HDMI video port instead of DVI, an HDMI-xx-MM cable can be purchased separately from NTI. Contact your NTI salesperson or visit our web site at http://www.networktechinc.com for details. -
Page 8: Hub Ports
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER Figure 3- Example of configuration with HDMI extenders on input and output Hub Ports If desired, connect additional USB devices to each of the three "Hub Ports". These ports will be powered and operational anytime the VOPEX and CPU are powered ON. -
Page 9: Power-Up
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER Power-Up Connect the AC adapter to the VOPEX and power ON the VOPEX. If not already ON, power ON the CPU and monitors. Figure 5- Connect the AC adapter to the VOPEX... -
Page 10: Operation
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER OPERATION Mode Selection The VOPEX comes equipped with three (3) modes of operation- INSTANT AUTO, DELAYED AUTO, and USERx. To manually toggle between modes, depress the MODE button once each time a mode change is desired. Select the mode according to the chart below. -
Page 11: Mice And Trackballs With Macs
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER The following functions exist while in Command Mode: Key Combination Description of Function <X>-<key>-<Y> Select a new key sequence to use to enter Command Mode – Replace <key> with the desired key to follow <Ctrl> with. -
Page 12: Hub Ports
NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER Hub Ports The three connections labeled "Hub Ports" can be used to connect any USB device, such as a printer, scanner, camera, etc. for continuous operation at USB 1.1 compliant speeds. These ports are not controlled by the VOPEX.
