SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER
8

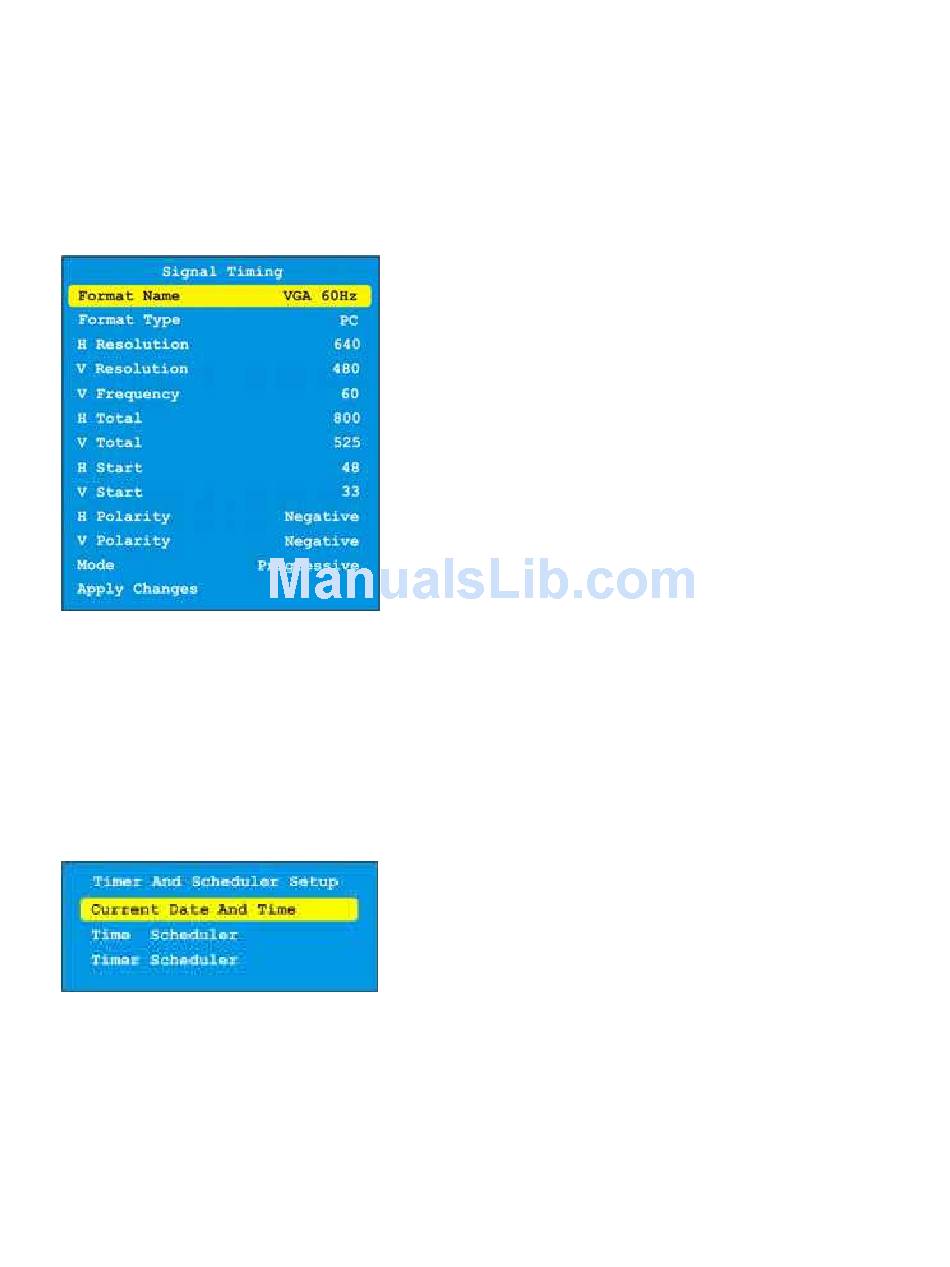

Signal Timing

This menu allows the adjusting and adding of input and output resolutions. There are currently
ten user profiles for customized input and output resolutions. Horizontal Frequency and Pixel
clock are automatically calculated inside the SPLITMUX. When done making changes, select
Apply Changes to save. Keep in mind any change made affect all inputs using the resolution as
well as outputs.
WARNING: When making custom resolutions, make sure the device that accepts the signal is
capable of handling it. Failure to do so may result in damage in some devices. Consult the User
Manual before applying new resolutions with different frequencies.

8.1.1 Timer and Scheduler

The timer scheduler is great for display signage. The SPLITMUX has a built in real time clock
which has backed-up battery. This menu allows for the time and date to be set as well as two
types of scheduling.
