SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

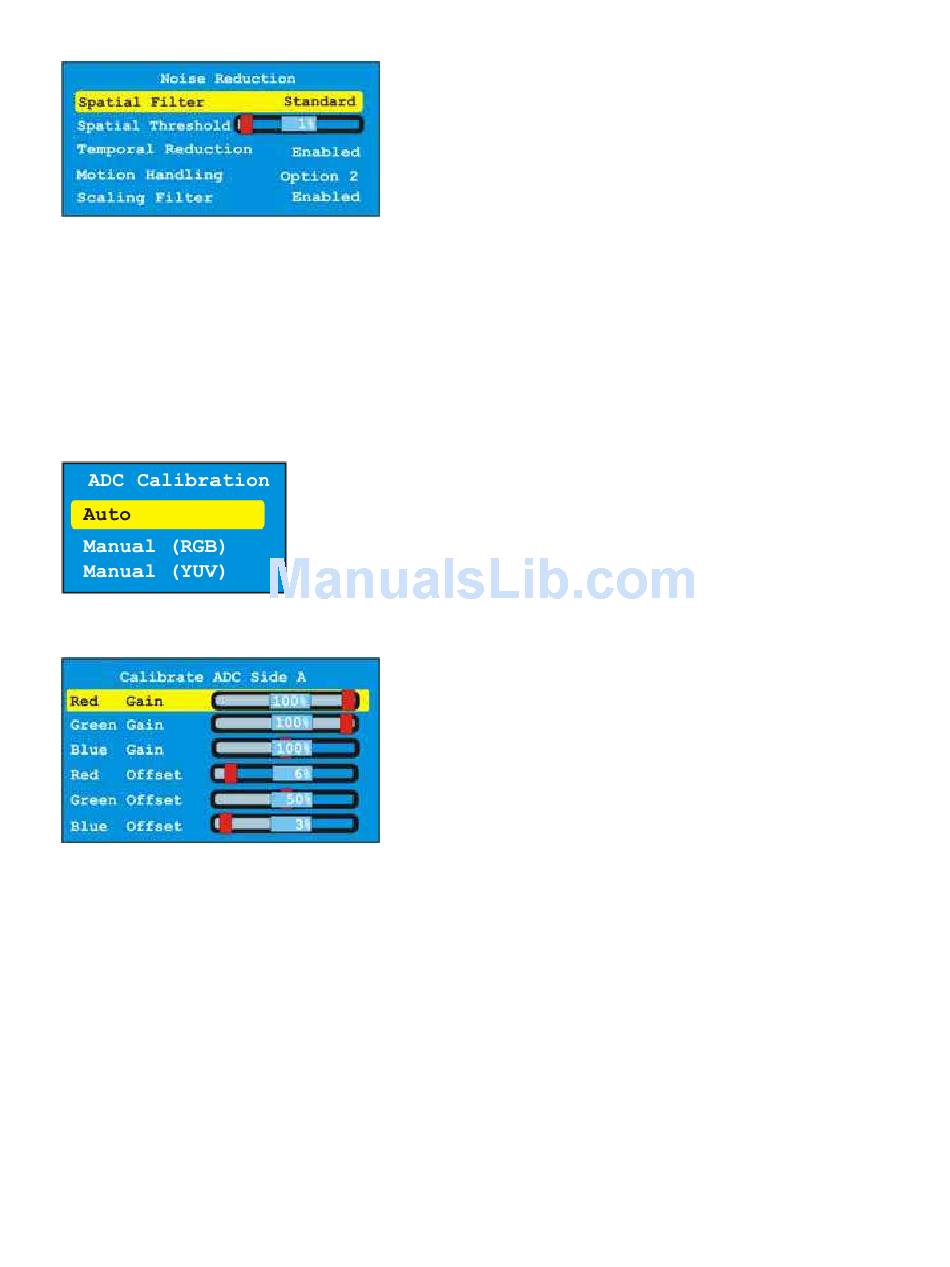

ADC Calibration is for the RGBHV inputs color settings. The Auto will automatically adjust the
gain and offset for each color when a test pattern is inputted. The Manual allows adjustment to a
user's reference or with external color analyzer.
Reconfig will re-sync all the current input signals as if the inputs were disconnected and
reconnected.
Default Settings will reset the SPLITMUX to factory settings (default settings). All customized
settings will be deleted.
