SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER
Key Description
Side A/B
The three source keys (section "A") will select the source to be displayed on the
DVI, screen. (Section "B" is not used for SPLITMUX-SVDVI-2.) In Single mode, the keys
RGB,
select the source immediately. In Dual mode a dialog will appear asking for window
VIDEO selection.
P1-P4
Preset keys (pg. 18) make the usability of the SPLITMUX-SVDVI-2 much easier.
When a preset is recalled, it will restore the saved screen conditions set at the time of
initially saving the preset. Up to 99 presets can be saved and recalled via the menu or
RS-232. Only the first 4 can be recalled with the quick keys on the remote. Presets
are very useful for effects, image resizing, and especially video wall functions. Presets
1-4 can also be recalled via the front keypad.

7.2 Menu Structure

The menu system allows a user to control various configurations of the SPLITMUX
For all menus, Up/Down arrows move the cursor (yellow highlighted selection) up/down. Central
key (SEL key) selects the current submenu/option, confirms changes, and finishes text entry
(passwords, presets, etc.). Left/Right arrows change the currently active option, if possible.
The sub-menus will be discussed in more detail in the subsequent chapters.

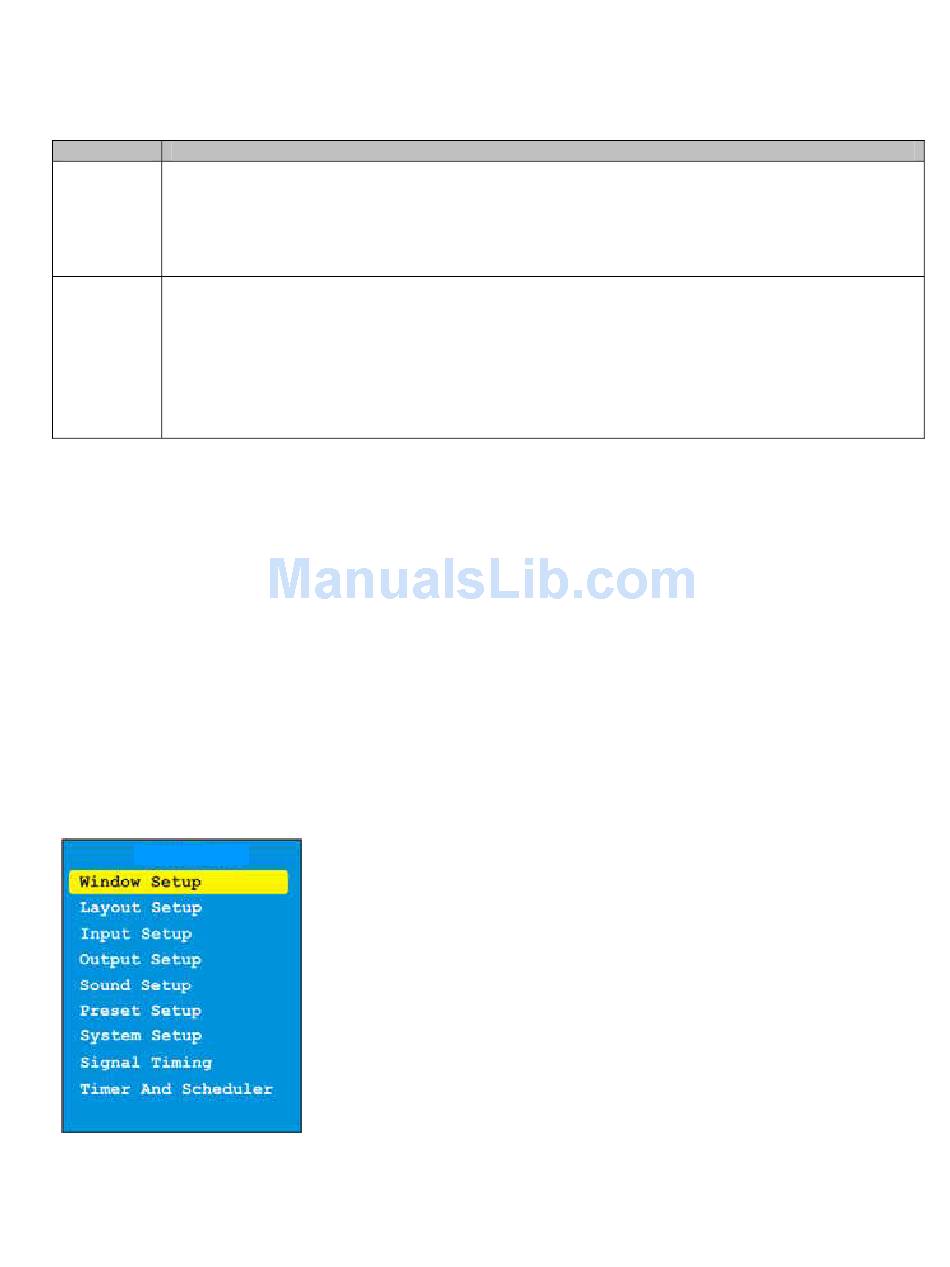

7.2.1 Main Menu

Main Menu contains the branches to all sub-menus. All different features can be accessed from
this Main Menu.
12
