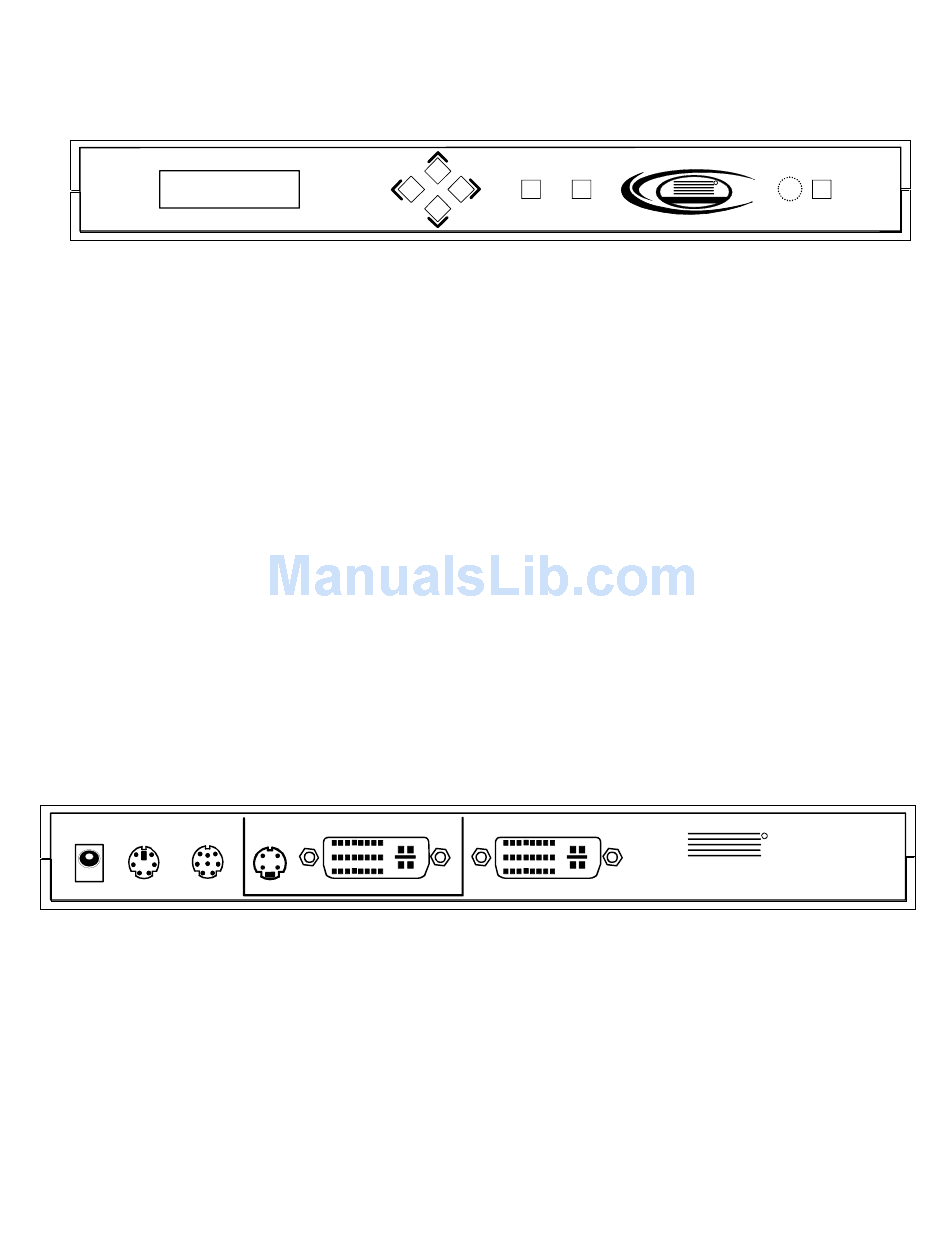

LCD / Keypad

The LCD helps to navigate through menus with the front keypad.
- Menu: brings up the menu on the screen and the LCD - exits menu levels.
- Select: brings up next menu level or confirms an entry.
- Arrows: navigate through the menus and change selections.
- Power: Toggles the Power ON and OFF. This button can also be used to restore all
Default values if it's held down for 10 seconds when the power connector is
first applied. Factory default for the output is RGBHV XGA 60Hz.
- Presets: Holding the select key and pressing the up arrow key will trigger preset 1,
right is preset 2, down is preset 3, and left is preset 4. (See Preset Setup on
pg. 17)
Note: Restoring default values will delete all saved settings.
When no OSD (Menu) is present, the 'Up' and 'Down' arrow keys will show the status of
different functions such as output resolution, layout, input source, etc. The 'Right' and 'Left'
arrow keys can be used to scroll the text that can not otherwise be seen on the LCD.
6

Connections

The SPLITMUX has 3 independent inputs and 2 outputs. In addition, there is an audio
INPUT/OUTPUT port and an RS-232 CONTROL port.
CONTROL AUDIO S-VIDEO
D C
6.1 A/V & Control connectors
•
CONTROL (6-pin mini DIN): RS-232 connection and RS-485 loop-through to control
multiple SPLITMUX units.
•
AUDIO (8-pin mini DIN): for use with supplied audio breakout cable .
•
S-VIDEO (4-pin mini DIN): S-Video or Composite (supplied adaptor) input.
•
DVI/RGB/YPbPr: for hi-res inputs. If a DVI-I breakout cable is used (see
"Optional Accessories" page 4), RGBHV/YPbPr can be input as an additional
source to the DVI.
INPUT
DVI RGB/YPbPr DVI RGB/YPbPr
