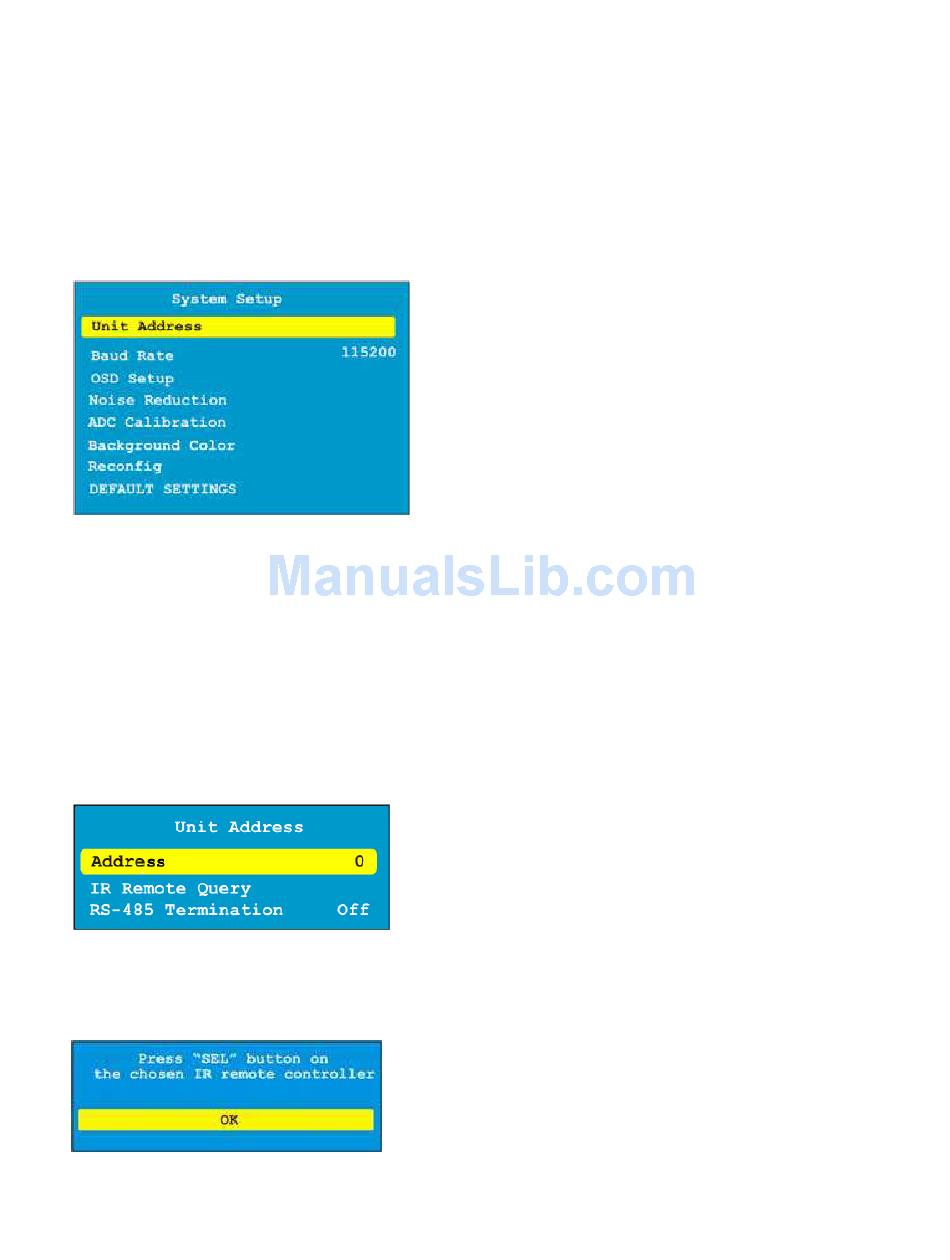

7.2.8 System Setup

This menu allows the selection of items which affect the overall SPLITMUX operation.
Unit Address allows many SPLITMUX units to be connected via RS-485. When connecting
multiple SPLITMUX units via the RS-485, each unit must be addressed differently. This address
will be used when controlling via RS-232 from a control system or PC. In addition, the last unit
in the chain must have RS-485 Termination enable.
The IR remote is also addressable (see IR remote section on page 5) and if set to the same
address as the SPLITMUX, it will control only that SPLITMUX. This feature is very useful when
multiple SPLITMUX units are present to prevent inadvertently controlling other units.
Remote Query is a diagnostic tool used to check for any SPLITMUX remote's current address
even if it is not matched to the address of that SPLITMUX.
