Input Setup - NTI SPLITMUX-SVDVI-2 Installation And Operation Manual

SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

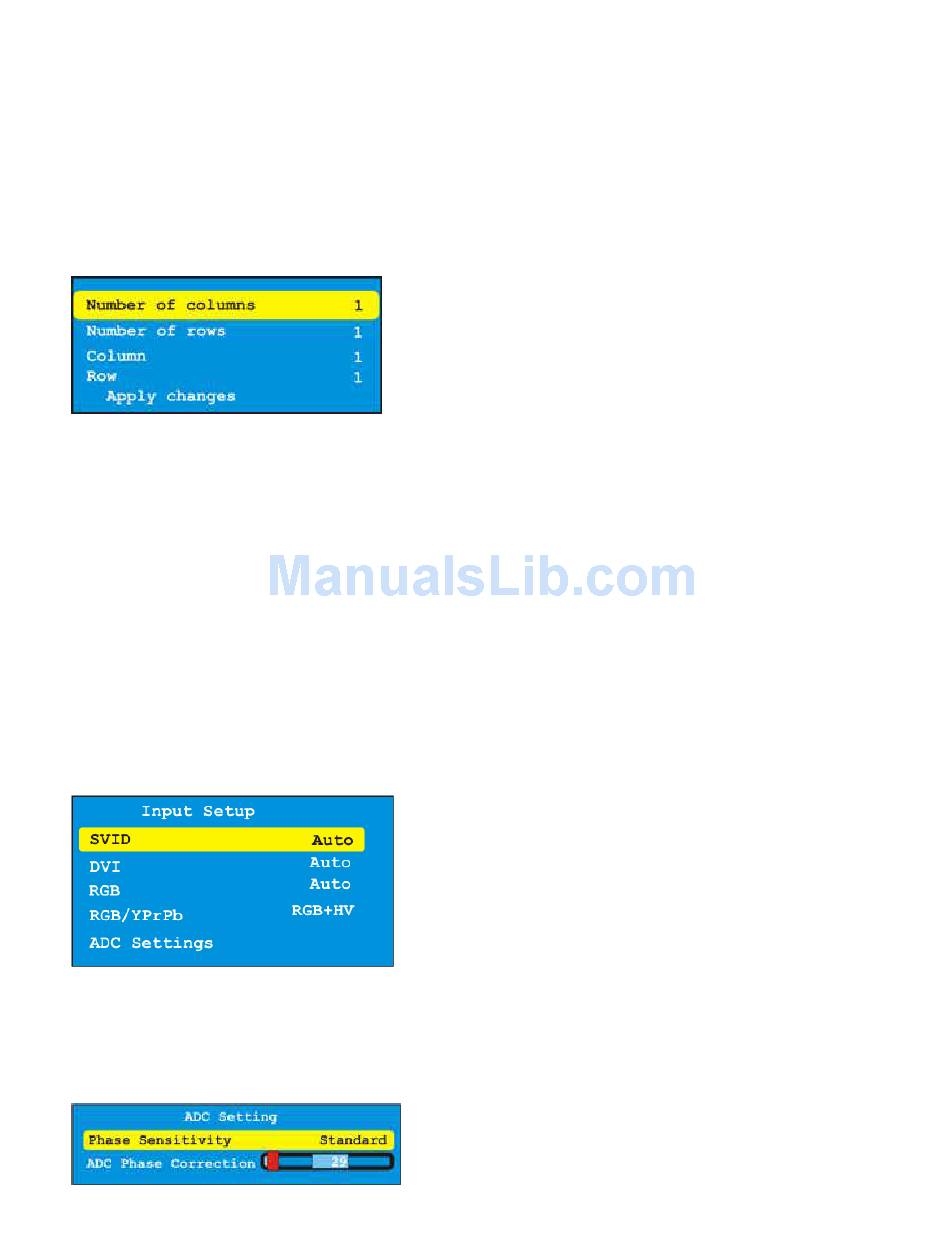

Video wall setup allows quick setup of a multiple monitor system. Enter the total number of
columns and rows as well as the row and column of the one that's being setup followed by
apply changes. The output will be changed to the appropriate size. It is still necessary to
account for the bezel size of the display device by manually changing the zoom, size or crop.
When done, make certain to save in a preset.

7.2.3 Input Setup

Input Setup allows a user to manually configure different connector inputs.
SVID: Auto, S-Video, and Video. If the image can not lock well due to poor sync, use the
manual selection.
DVI: Auto, Norm PC, Wide PC, and Video. The manual selection helps to set correct input
timing such as Video or PC. This will help the SPLITMUX to better sync on an input.
RGB: Auto, Norm PC, Wide PC, and Video. The manual selection helps to set correct input
timing such as Video or PC. This will help the SPLITMUX to better sync on an input.
RGB/YPbPr: RGBHV, RGsB, and YPbPr. Select the type of signal connected to the RGB input.
ADC Settings currently has phase control as the selection. It is used to reduce noise on the
YPbPr input due to the cable or other factors and to correct the phase of H/V syncs of RGB
input.
