NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER

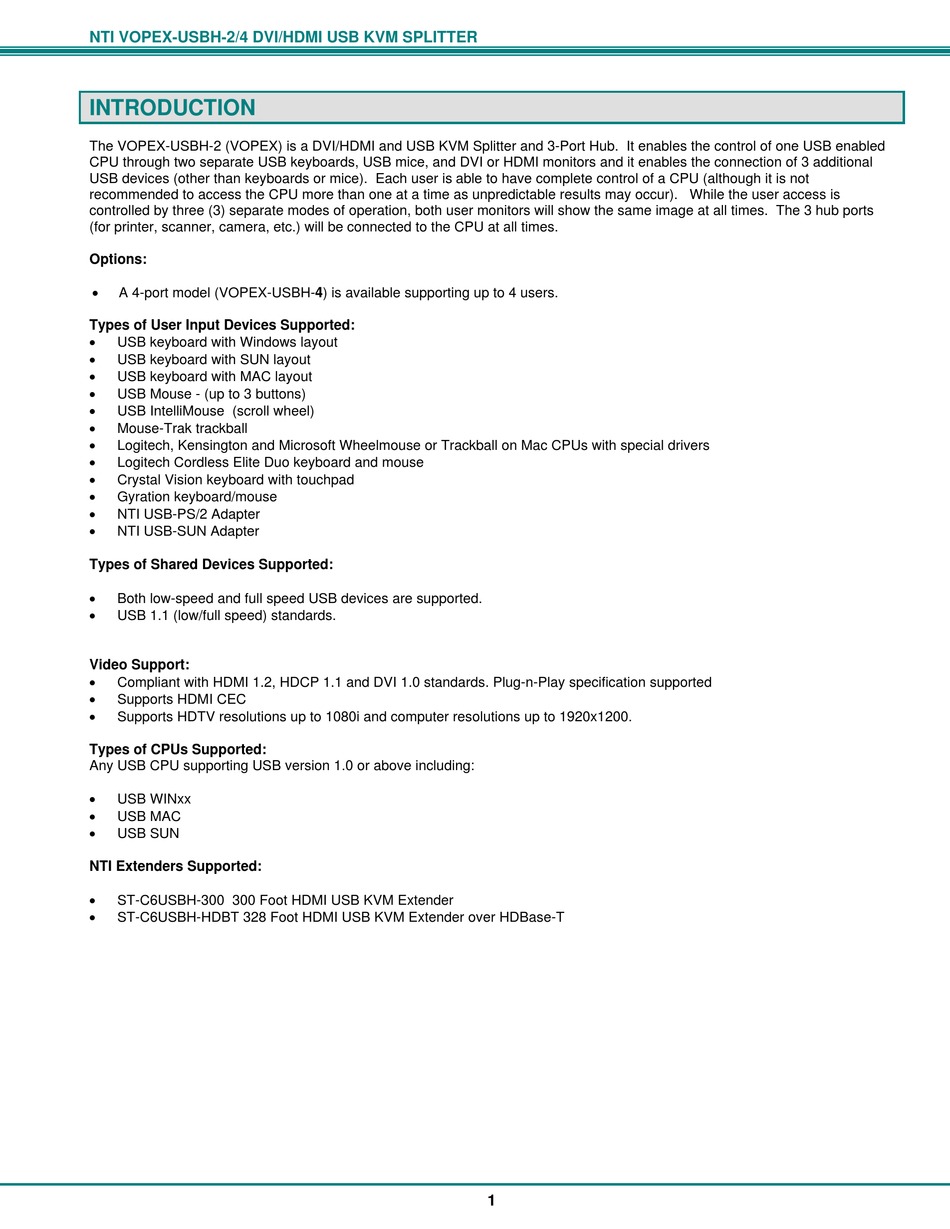

INTRODUCTION

The VOPEX-USBH-2 (VOPEX) is a DVI/HDMI and USB KVM Splitter and 3-Port Hub. It enables the control of one USB enabled
CPU through two separate USB keyboards, USB mice, and DVI or HDMI monitors and it enables the connection of 3 additional
USB devices (other than keyboards or mice). Each user is able to have complete control of a CPU (although it is not
recommended to access the CPU more than one at a time as unpredictable results may occur). While the user access is
controlled by three (3) separate modes of operation, both user monitors will show the same image at all times. The 3 hub ports
(for printer, scanner, camera, etc.) will be connected to the CPU at all times.
Options:

A 4-port model (VOPEX-USBH-4) is available supporting up to 4 users.
Types of User Input Devices Supported:

USB keyboard with Windows layout

USB keyboard with SUN layout

USB keyboard with MAC layout

USB Mouse - (up to 3 buttons)

USB IntelliMouse (scroll wheel)

Mouse-Trak trackball

Logitech, Kensington and Microsoft Wheelmouse or Trackball on Mac CPUs with special drivers

Logitech Cordless Elite Duo keyboard and mouse

Crystal Vision keyboard with touchpad

Gyration keyboard/mouse

NTI USB-PS/2 Adapter

NTI USB-SUN Adapter
Types of Shared Devices Supported:

Both low-speed and full speed USB devices are supported.

USB 1.1 (low/full speed) standards.
Video Support:

Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards. Plug-n-Play specification supported

Supports HDMI CEC

Supports HDTV resolutions up to 1080i and computer resolutions up to 1920x1200.
Types of CPUs Supported:
Any USB CPU supporting USB version 1.0 or above including:

USB WINxx

USB MAC

USB SUN
NTI Extenders Supported:

ST-C6USBH-300 300 Foot HDMI USB KVM Extender

ST-C6USBH-HDBT 328 Foot HDMI USB KVM Extender over HDBase-T
1
