NTI SPLITMUX-SVDVI-2 Installation And Operation Manual page 26

SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

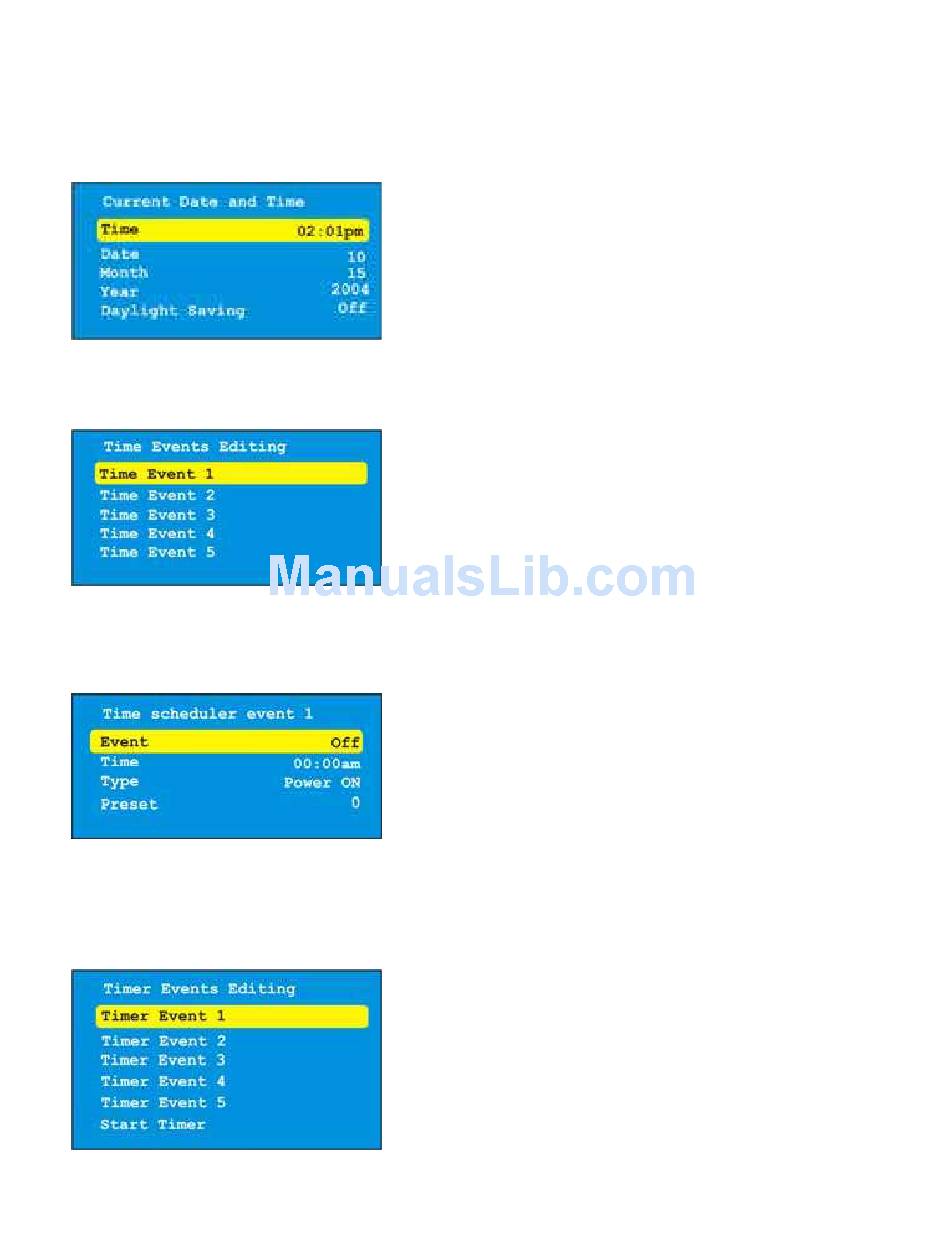

Current Date and Time is important to the operation as the accuracy of the scheduler is based
upon the settings in this menu. If the region the SPLITMUX is located in has daylight savings
then it should be turned on to keep the time correct throughout the year.
Time Events are events based on the time of day. The SPLITMUX can have 5 different time
events programmed.
When an event is turned ON, the time selected will cause the SPLITMUX and all other
SPLITMUX units connected on the RS-485 bus to carry out a preset, power ON, or power OFF.
Timer Events are events based on a cycling time line. This means the SPLITMUX will carry out
repeating functions in a timeline. The SPLITMUX can have 5 different timer events
programmed.
23
