SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

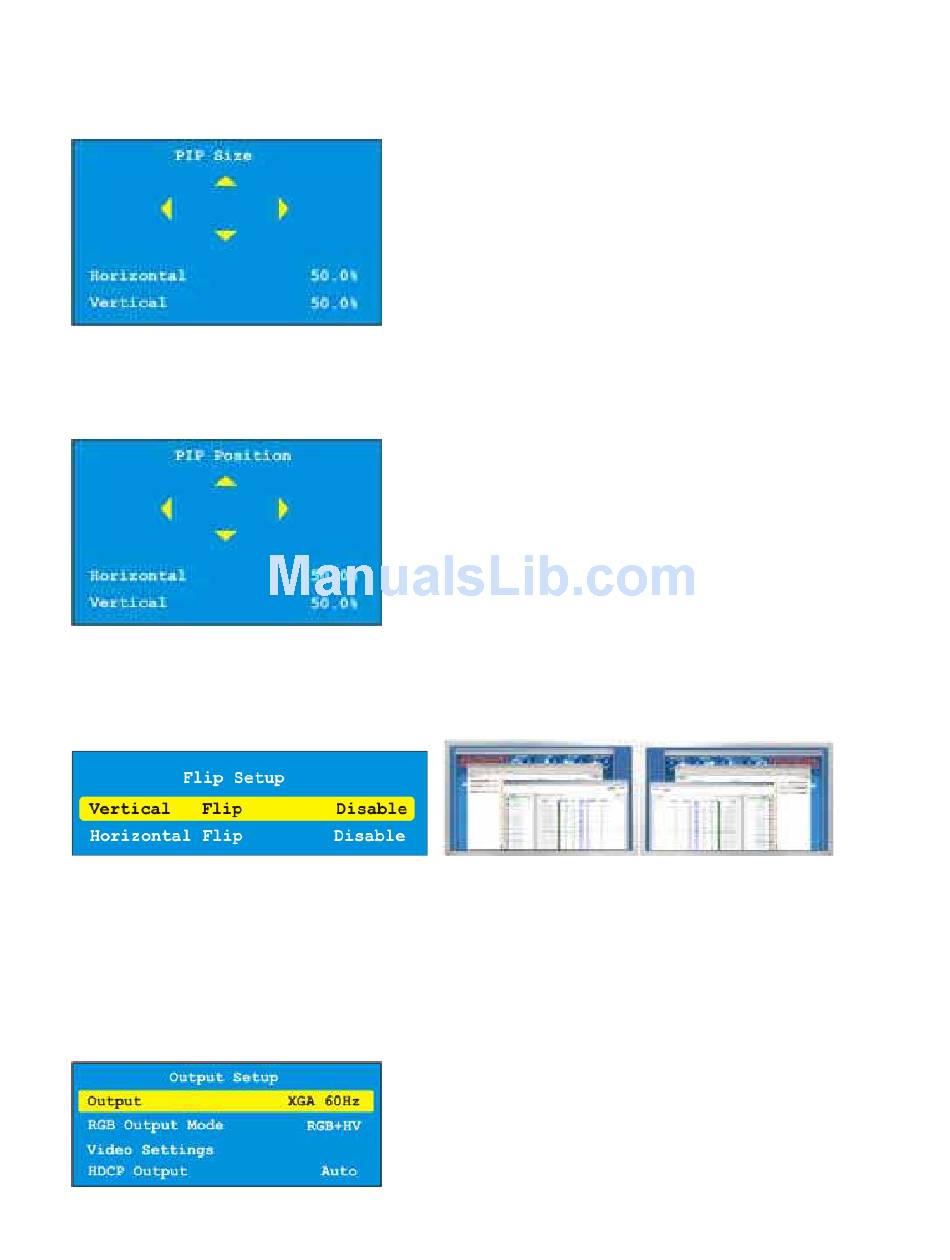

PiP Size adjusts the size of the PiP window from 0 - 100 percent with accuracy down to the
tenths.
PiP Position adjusts the position of the PiP window from 0 - 100 percent with accuracy down to
the tenths.
Flip Setup changes the input image orientation with respect to the output. This allows for mirror
images or back to back images in rotated modes to create new effects.
Horizontal Disabled Horizontal Enabled

7.2.5 Output Setup

Output timing for the DVI/RGBHV/YPbPr connector is selected here. Output type can also be
modified from this menu for the analog portion of the connector. The selections are RGBHV,
RGsB, YPbPr, and No Output.
HDCP Output gives the ability to always have HDCP enable or the SPLITMUX will decide when
to enable and disable the HDCP.
