SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

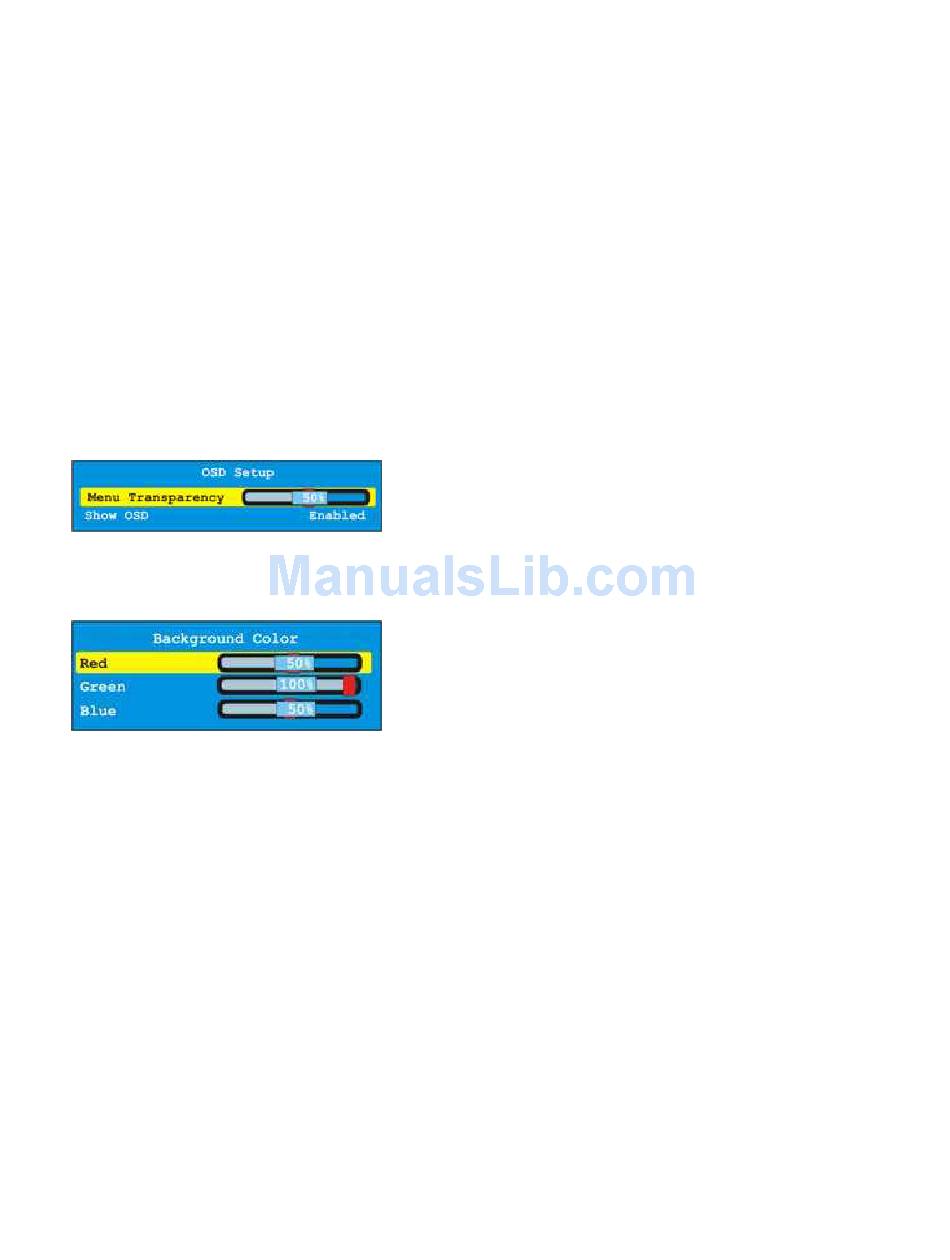

OSD Setup turns on/off the Menu Transparency and OSD.
Menu Transparency allows the menu to blend with the background.
Show OSD can disable the On Screen Display. When using the front keypad for setup via the
LCD, it will prevent the OSD from coming on the screen. This is handy when making changes to
the system while it is being viewed.
Background Color determines the color of the window when no input signal is present.
Noise reduction allows the SPLITMUX to clean up an image with random noise caused by poor
or weak signal. There are two types of noise reduction filters available. The first one is "Spatial
Filter" which is good for signals from poor TV reception. The second one is "Temporal Filter"
which is a good overall noise reduction to clean up an image. There is a penalty when using
noise reduction which is the softening of the image. Best way to use noise reduction is trial and
error to see what works best for the application.
Motion handling is for SPLITMUX Motion Adaptive De-interlacing. There are three options to
choose from. Option 2 gives the best overall compromise of feathering and jitter when enabling
this feature. Once again, it is best that different options are used with the content to see which
works best.
Scaling Filter is for the graphics channel. This should be enabled in most cases especial when
an image is being down scaled or reduced in sized. The scaling filter is not used when an
image is up scaled or increased in size.
20
