NTI USB-AA-5M Specification Sheet

NTI
R
NETWORK
TECHNOLOGIES
INCORPORATED
The USB-AA-5M USB Repeater Cable extends the cable length of a USB device by 5 meters. Up to 5 cables can be connected in
series to extend the cable length up to 80 feet.
for USB Hub.
The USB-AA-5M USB Repeater Cable is not a passive extension cable. It is an active device. The USB signals going in and out of
the extension cable are buffered to assure signal quality and the meeting of the USB's Electrical and Timing Specifications. Using
passive cables for the purpose of extension will result in signal errors and is not recommended.
The USB-AA-5M USB Repeater Cable allows a USB device to have its cable length extended by up to an additional 25 meters (80 ft)*,
by serially connecting 5 cables.
data traffic.
Both Low-Speed and High-Speed devices will function equally well with the USB-AA-5M USB Repeater Cable.
Connect to
CPU or USB Hub

Technical Specifications

Parameter
Cable Length
Maximum Supply Current Drawn
Maximum Cable Voltage Drop
VBUS and GND Wire Size
D + & D- Wire Size
Cable Shield
High Speed Mode
Low Speed Mode
Operating Temperature Range
Storage Temperature Range
USB Transceiver Specification
Down Stream Connector
Up Stream Connector
NOTE: The USB-AA-5M USB Repeater Cable does not support MAC power-up/down.
*CAUTION
: Although it is possible to use multiple USB Repeater Cables in a row (up to 5 since each cable replaces a
series Hub), users should verify that adding cables does not affect the operation of the USB device
USB-AA-5M
Part No.
Serial No. ___________________
Date: ____________________
Inspected By: _________________
1275 Danner Dr Tel:330-562-7070
Aurora, OH 44202 Fax:330-562-1999
www.nti1.com
USB-AA-5M
USB REPEATER CABLE
The USB Repeater Cable is 100% compatible with the USB Electrical Timing Specs
The USB Repeater Cable acts as a transparent USB Hub and buffers all downstream and upstream

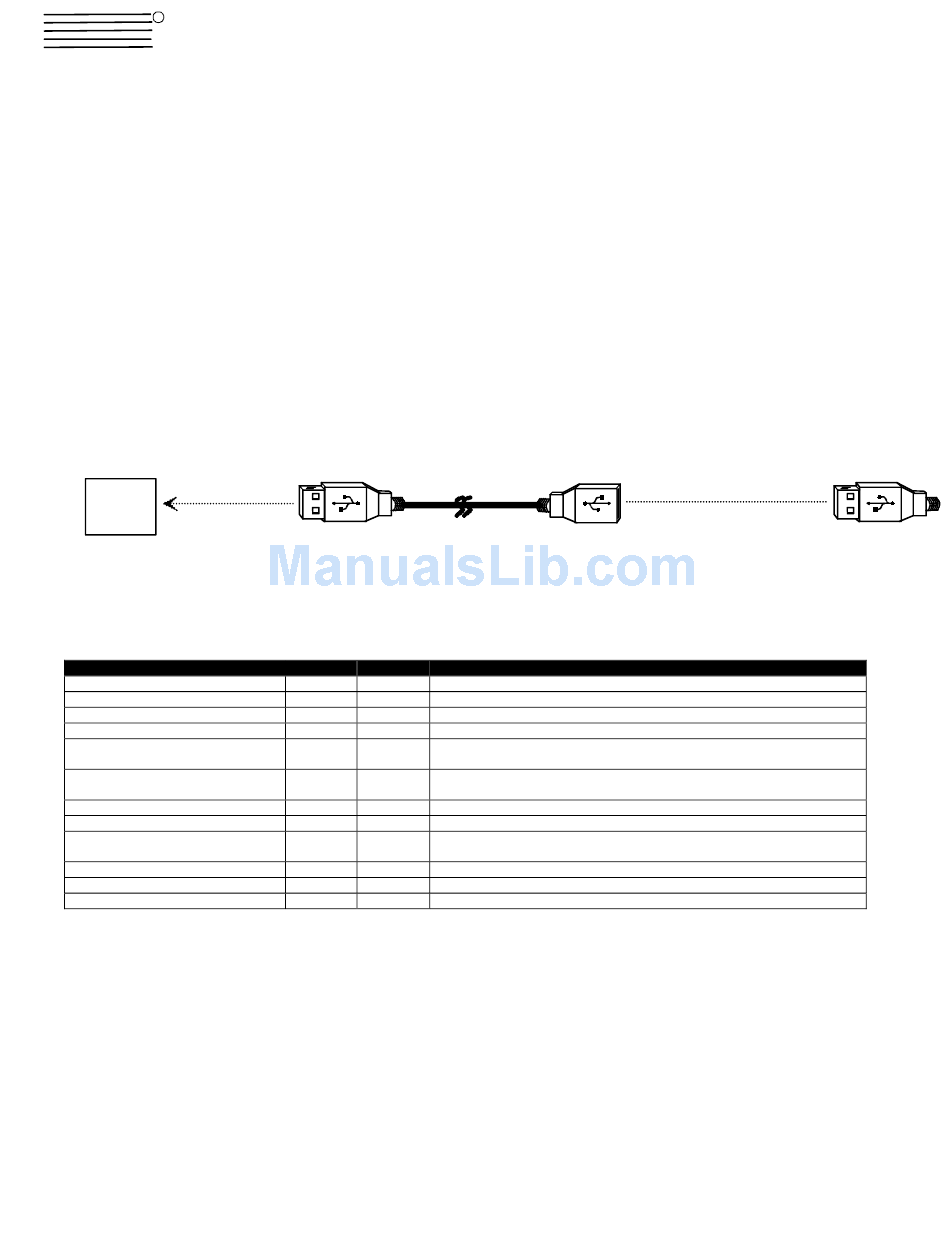

TYPICAL USB EXTENSION CABLE CONFIGURATION
5 Meter Cable Length
1st Active
USB Type A
Extension Cable
Male Connector
Value Units Notes
5 Meters Embedded USB Transceivers Cable Prevents Signal Loss
5.0 mA Max@40C Typical current less than 3mA
0.095 Volts @500mA, Ta=40ºC
20 AWG
28 AWG Stranded-Twisted Pair
90 Ohm Characteristic Impedance
Aluminized wrap foil with 28 AWG drain wire and copper mesh over foil.
UL Approved
12 Mbs When used with high speed peripheral
1.5 Mbs When used with low speed peripheral
0-40 ºC
-40~+85 ºC
Meets USB Specifications
Female Type "A" USB Approved Connector
Male Type "A" USB Approved Connector
Connect to
USB device or
2nd Active Extension Cable
USB Type A
Female Connector
with Embedded ASIC
.
Man080 Rev 4-18-02
