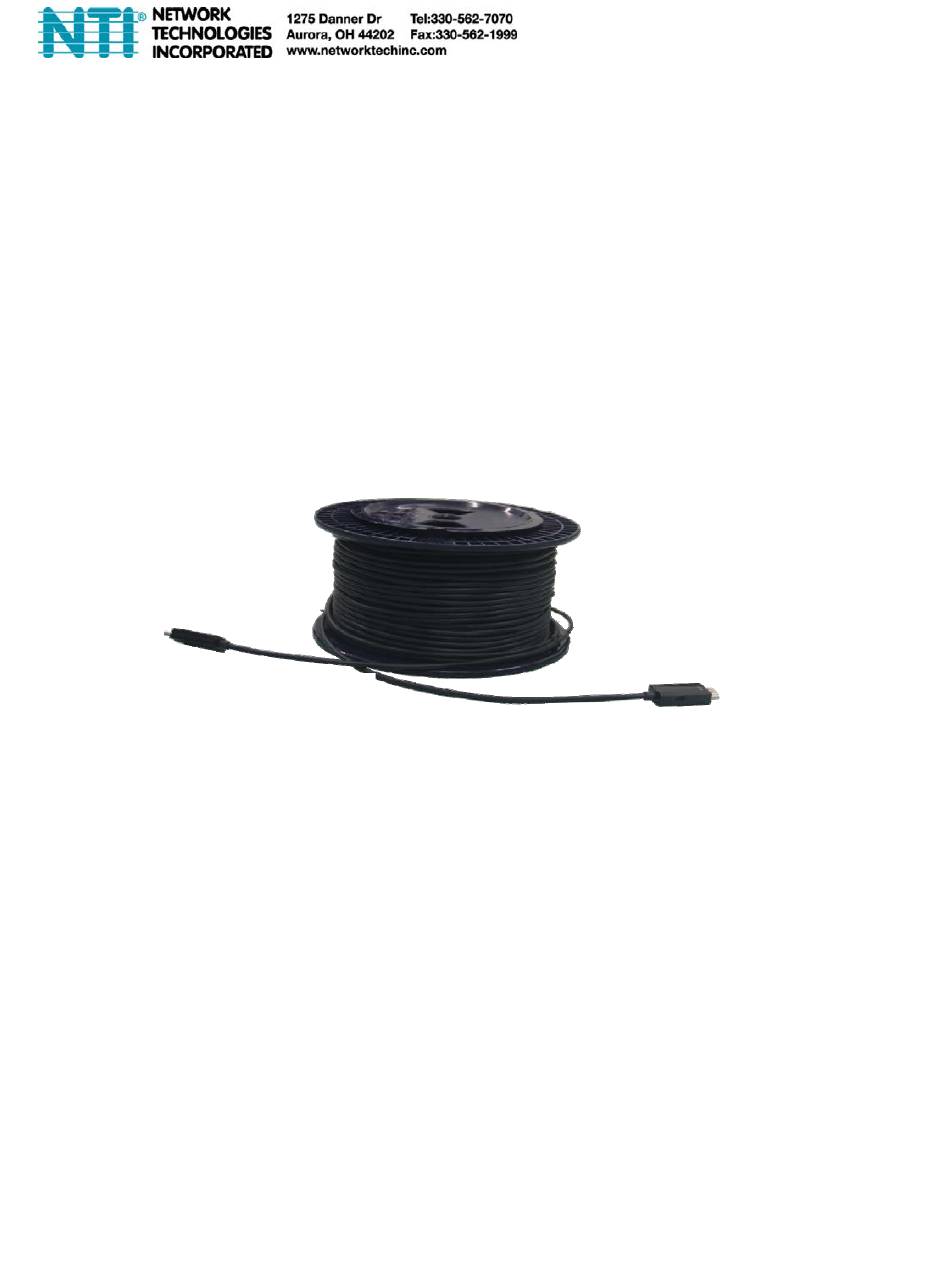

- Page 1 HD4K18GB-FO-xx-MM HDMI 2.0 Active Optical Cables Instruction Manual...
- Page 2 HDMI 2.0 Active Optic Cable INTRODUCTION This Fiber Optic HDMI 2.0 Active Optical Cable (AOC) allows you to transmit HDMI signals to a distance of up to 100m without external power supply. This cable is a hybrid cable containing both fiber optic and copper cores. Our HDMI Active Hybrid Cable is the most competitive long distance HDMI interconnection solution on the market.
- Page 3 The minimum bending radius of the hybrid cable is approximately 45mm. Bending the cable to a smaller radius will irreversibly destroy the cable. Pay attention to trip hazards; make sure that the cable is installed safely. Do not leave packaging material lying around carelessly. These may become dangerous playing material for children.
- Page 4 FEATURES This HDMI 2.0b AOC Cable has many features that enable it to perform in a superior manner. Among those features you will find: •Supports HDMI2.0b specification with data rates up to 18Gbps •Supports HDCP1.4 & HDCP2.2 •Supports resolutions up to Ultra HD 4K (4096x2160) 60Hz,4:4:4 •Supports computer resolutions including 1080P and 4K2K(60Hz) •Supports 48 bit color depth (16bit per channel) •Supports lossless HDMI audio formats like Dolby True HD and DTS-HD,etc.
- Page 5 Cable Type Hybrid type with OM3 fiber and copper wire Connector Width 19.74mm (0.78 in.) Cable Outer Diameter 4.72mm (0.186 in.) Jacket Outer Material Differential Input 100 Ohm Power Consumption 250mW (max.) Power Supply Non external power required Passive Power Supply 4.75-5.5 V Environmental Conditions Operating Temperature...
- Page 6 OPERATION AND CONNECTION DIAGRAM ATTENTION The HD4K18GB-FO-XX-MM is designed for use with +5V passive power, supplied through pin 18 on the HDMI connection from the source device. This +5V connection, as well as powering the internal fiber optic module, is also carried through to the other sink via a full standard copper connection.
- Page 7 TROUBLESHOOTING THE DISPLAY SHOWS: A BLACK SCREEN SCREEN IS DISTORTED NOISE INTERFERENCE 1. Check that the connectors are in the correct ports of the source and display devices – check the labels on the connector housing to be sure. 2.
- Page 8 WARRANTY AND LIABILITY The product carries a 2 year warranty. As the manufacturer has no influence on installation, warranty only applies to the product itself. The manufacturer is not liable for damages to persons or property caused by improper installation, operation or maintenance, not described in this manual.
