SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

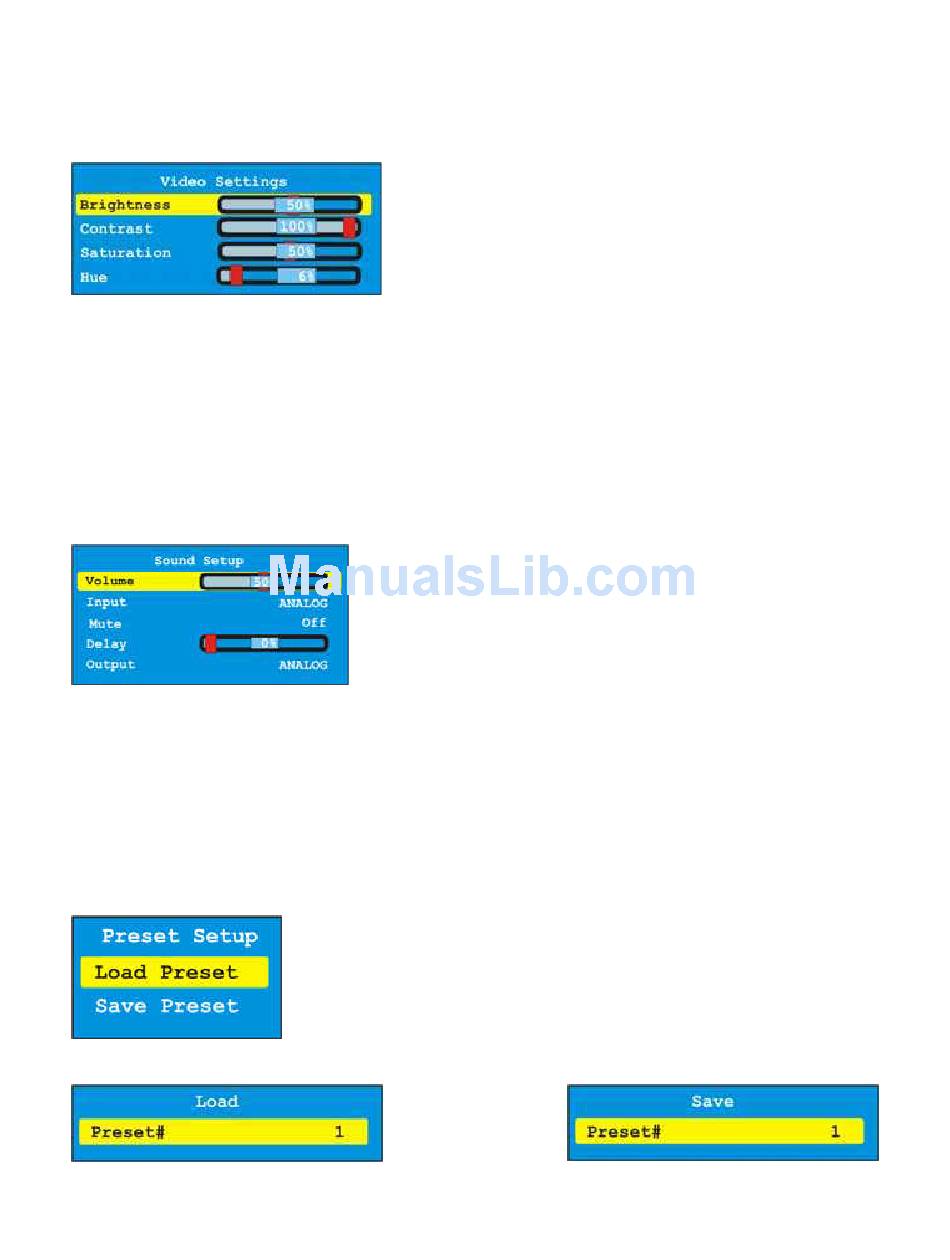

Video settings adjust the brightness, contrast, saturation, and hue of picture output. All windows
will be affected when adjusted.

7.2.6 Sound Setup

Volume -- Selects the current (default) volume level
Input -- Selects Analog or SPDIF for audio input
Mute -- Turns on and off the audio output
Delay -- Enter the amount of audio delay to be added to compensate not just for
Output -- Selects Analog or SPDIF for audio output

7.2.7 Preset Setup

This menu allows the saving and loading of up to 99 presets. To save or load a preset, select
Load Preset or Save Preset. Then change preset number to be saved or loaded. Press "SEL"
to confirm changes. If it is saving, the OSD will display "Preset is being saved". Presets can
take up to 2 seconds to load. So if only simple switching sources is needed, use the keys or RS-
232 commands for quicker changing of inputs. Presets are great for a starting point when many
things need to change at once as it stores everything such output resolution, modes, input
setup, audio settings, video settings etc.
SPLITMUXvideo processing but other equipment as well.
18
