SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

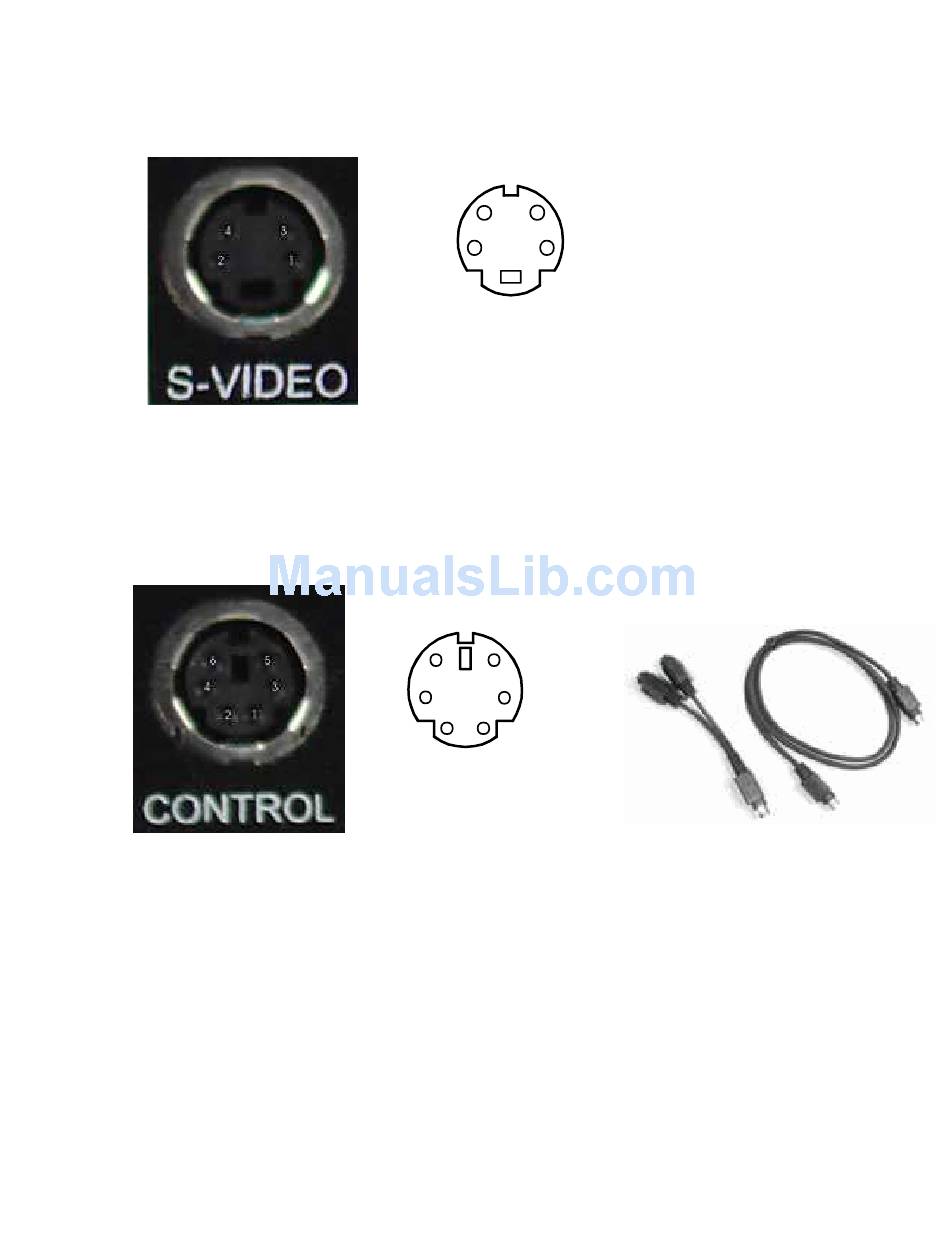

S-Video/Composite 4 Pin miniDIN Connector:
1 Y Ground
2 C Ground
3 Y Intensity (Luminance) or Composite
4 C Color (Chrominance)
Control Port 6 Pin miniDIN Connector:
RS232 connection: Pins 1, 3, 5
RS485 connection: Pins 1, 4, 6 (Used for looping multiple SPLITMUX-
Pin 1: Ground
Pin 4: 485+
Pin 6: 485-
Mating Face of
4 miniDIN Female
6 5
4
2 1
Mating Face of
6 miniDIN Female
Pin 1: Ground
Pin 3 - TX
Pin 5 – RX
SVDVI-2 units)
36
3
4
2 1
