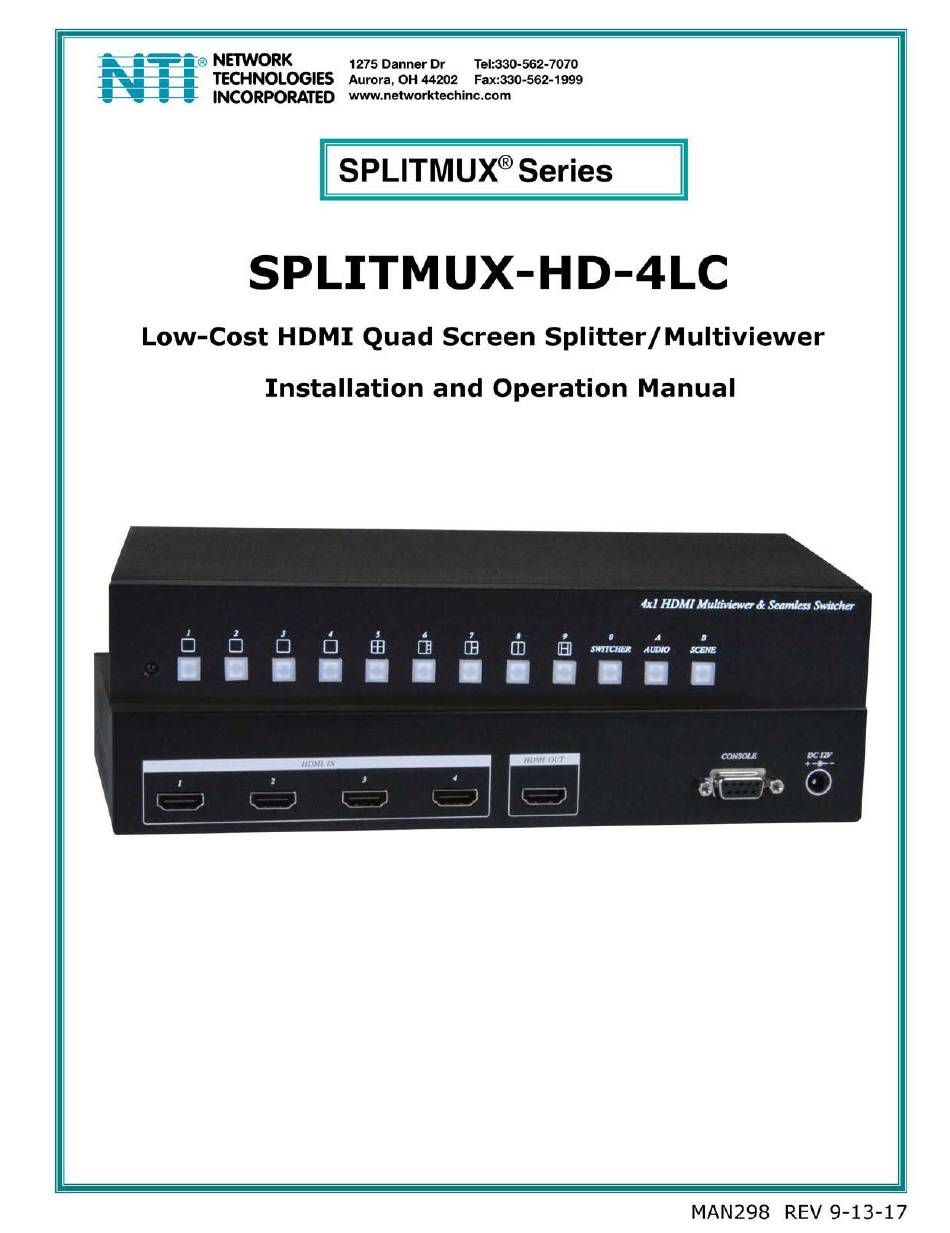

NTI SPLITMUX Series Installation And Operation Manual

Low-cost hdmi quad screen splitter/multiviewer
Hide thumbs Also See for SPLITMUX Series:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPLITMUX Series and is the answer not in the manual?

Questions and answers

Related Manuals for NTI SPLITMUX Series

Summary of Contents for NTI SPLITMUX Series

  • Page 2 The HDMI Quad Multi-viewer allows you to display HDMI video signals from 4 different sources onto one HDTV. It supports Quad/POP/full screen with 6 modes and a special feature built-in auto-switching function between 4 different sources. It is easy to operate with great features for viewing or monitoring multiple videos on one screen at the same time from video devices such as computer, Blu-ray player, cable box, DVR, surveillance camera, etc.

  • Page 3: Panel View

    Panel View: Panel Button Function: Button Function Select Video 1 Select Video 2 Select Video 3 Select Video 4 Quad Picture Display Quad Picture Display (one big window with three small windows), press this button again to change 4 video sequence. Select 3 Video Display (Only select input video 1,2,3) Select 2 Video Display, press this button again to select video input 1,2 or 3,4.

  • Page 4: Audio Function

    Seamless Switch Function： Press button 1 – 4: the video output will be a single full screen, and the button light goes ON to indicate the source of video input. Multi-view Switch Function： Press button 5 – 9: the video output will be a multi-view window; the button light goes ON to indicate the Multiview mode.

  • Page 5: Demo Function

    SCENE Load method: Press the SCENE button (the button light goes ON), then press button 1 - 9 for load and exit. Demo Function： Demo mode: 5 - 9 as multi-view window will be auto-switching by sequence. Set as indicated below: Press the SCENE button (the button light goes ON), press the SWITCHER button to turn on the DEMO mode.
  • Page 6 CONSOLE Function： 1. Firmware updated. 2. RS232 Serial Remote Control function as below: Connect the RS232 CONSOLE port to the COM port of the host by an RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5) Communication format is 115200, 8, N, 1 (115200 bps, 8 data bits, none parity check, 1 stop bit) Command Mode Instruction:...
  • Page 7 DEMO Demo Mode. SIGNAL Display input signal status. STATUS Display setting. VERSION Display firmware version. Show all commands. [SYMBOL] [PARAMETER] -------------------------------------------------------------------------------------------------------------- 1 | 2 | 3 | 4 1 | 2 | 3 | 4 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 1 | 2 | 3 | 4 | 5 | 6 | 61 | 62 | 63 | 64 | 7 | 8 | 9 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 0 5 | 6 | 7 | 8 | 9 (5s | 10s | 20s | 30s | 60s)

  • Page 8: Reset Factory Default

    Reset Factory Default： Press SCENE button and power ON. The SCENE button light will flash and the switch will clear all saved data and set output resolution at 1080p@60Hz. Package Include: SPLITMUX-HD-4LC x 1 piece IR Remote Control x 1 piece Power adapter x 1 piece Rubber Pad x 4 pieces Mounting screws x 1 bag...

This manual is also suitable for:

Splitmux-hd-4lc
