SPLITMUX-SVDVI-2 DUAL SCREEN SPLITTER

10 Real Time Image Rotation

The SPLITMUX can do real-time image rotation with resolutions up to 1900 x 1200 @ 60Hz. Its
patent pending multi-image rotation allows a display to show multiple rotated images at the
same time.

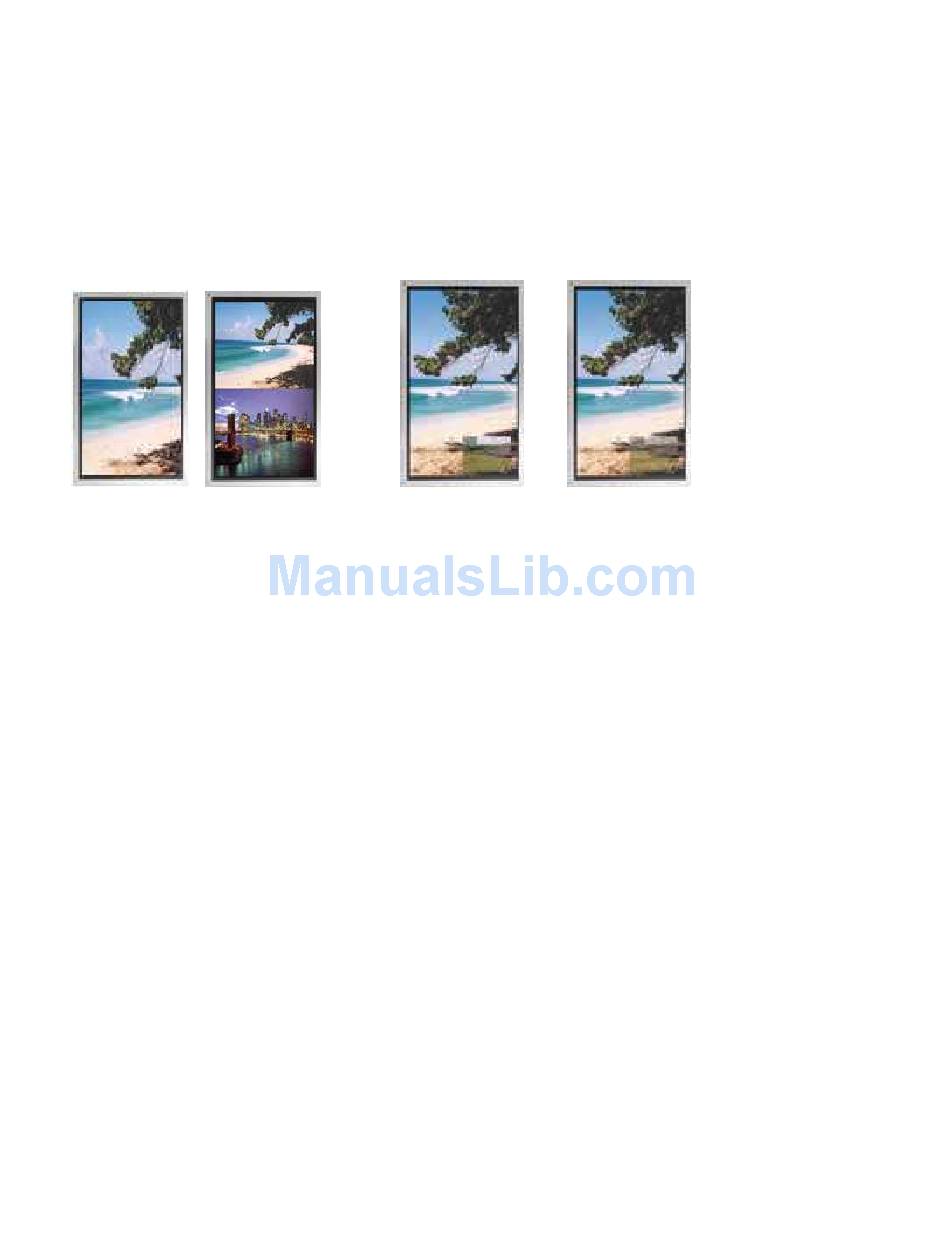

These examples below show some of the many possibilities.
Single Rotated Dual Rotated
Images can be cropped and zoomed for stretch to fit. The edges can also be cut off to show
only the middle for runway effects and thus keeping the image proportional.
Rotated flat displays have many benefits as listed below:
1) Two images can be displayed one on top of another to create two nearly 4:3 images.
2) In a presentation with images are rotated vertically, the presenter will not block any
image on the screen. With a horizontal display doing side by side images, it's most likely
that the image closer to the presenter will be blocked.
3) Vertically rotated pictures can help preventing burn-in image on plasma display. With
horizontal display doing side by side, the top and bottom usually have black areas to
keep the image proportional. These black areas, if stay on for a long time, will cause the
phosphor to burn unequally.
As there are benefits to having rotated displays, a user may also want to still be able to show a
display horizontally. There are companies that make rotating wall mounts that can be operated
manually or motorized.
Rotated PiP Single Rotated Translucent PiP
27
