GANZ Network camerab and encoder series Webpage User's Manual

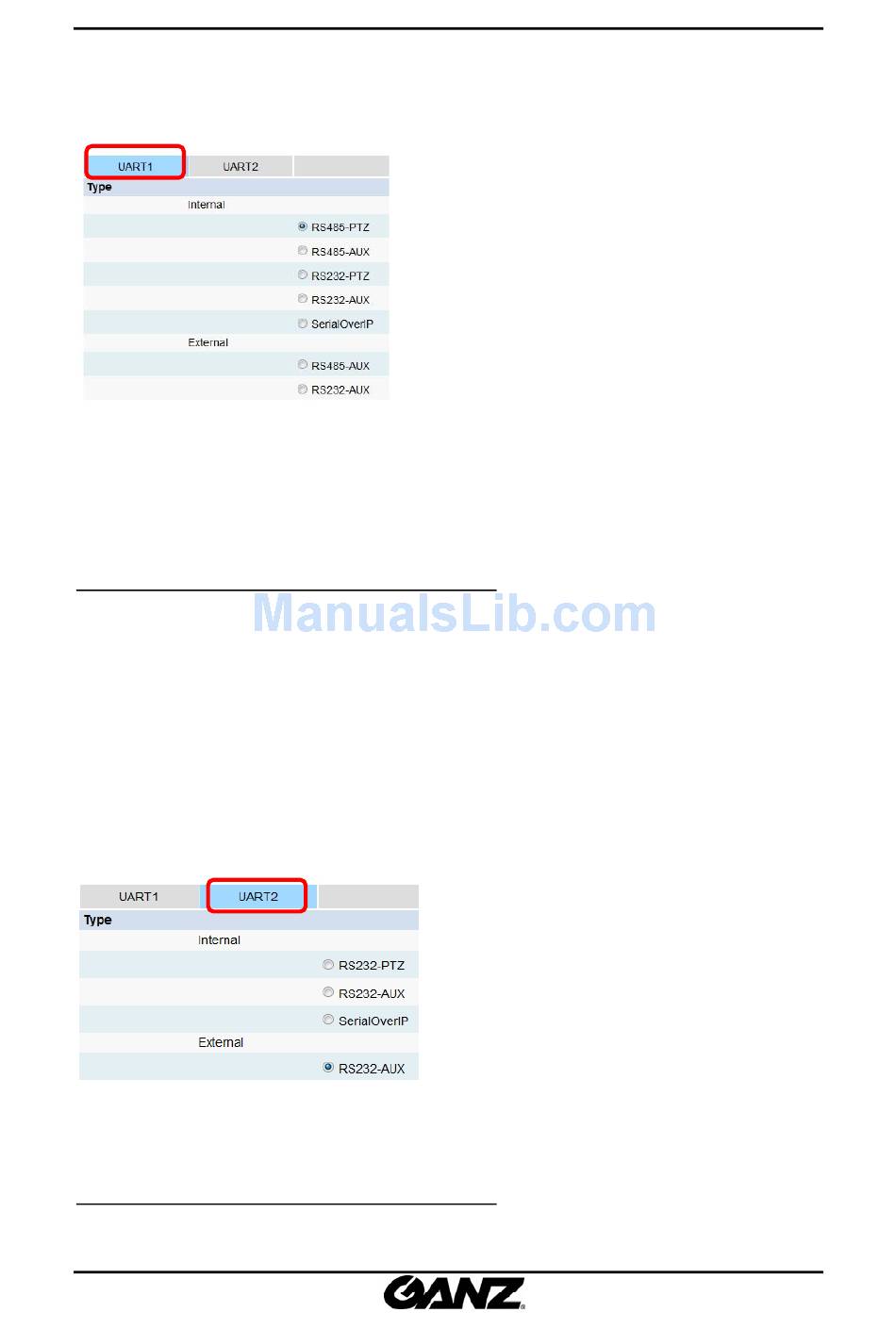

UART1 – RS485 only supported
Internal
RS485‐PTZ : Used when you attach a PTZ camera to the NVC series.
RS485‐AUX : Used when you attach any auxiliary device which requires serial communication
to the NVC series.
RS232‐PTZ : Not supported for UART1 port
RS232‐AUX : Not supported for UART1 port
Why distinguish between RS485‐PTZ and RS485‐AUX?
When the RS485‐PTZ is selected, the required PTZ protocol and the control daemon are run
and assigned to the serial communication internally.
External
rd
When 3 party program is added to the server side of NVC and this add‐on program needs to
control the attached serial devices, you should select the external option. So, if you do not use
any serial control program, you can ignore this option.
RS485‐AUX : When add‐on program for RS485 communication is required
RS232‐AUX : Not supported for UART1 port
UART2 – RS232C only supported
Internal
RS232‐PTZ : Used when you attach a PTZ camera to the NVC series.
RS232‐AUX : Used when you attach any auxiliary device other than PTZ camera.
Why distinguish between RS232‐PTZ and RS232‐AUX?
