5. In the
Notes: if you click on the
6. Click on the
4-14 Status Cue User's Manual

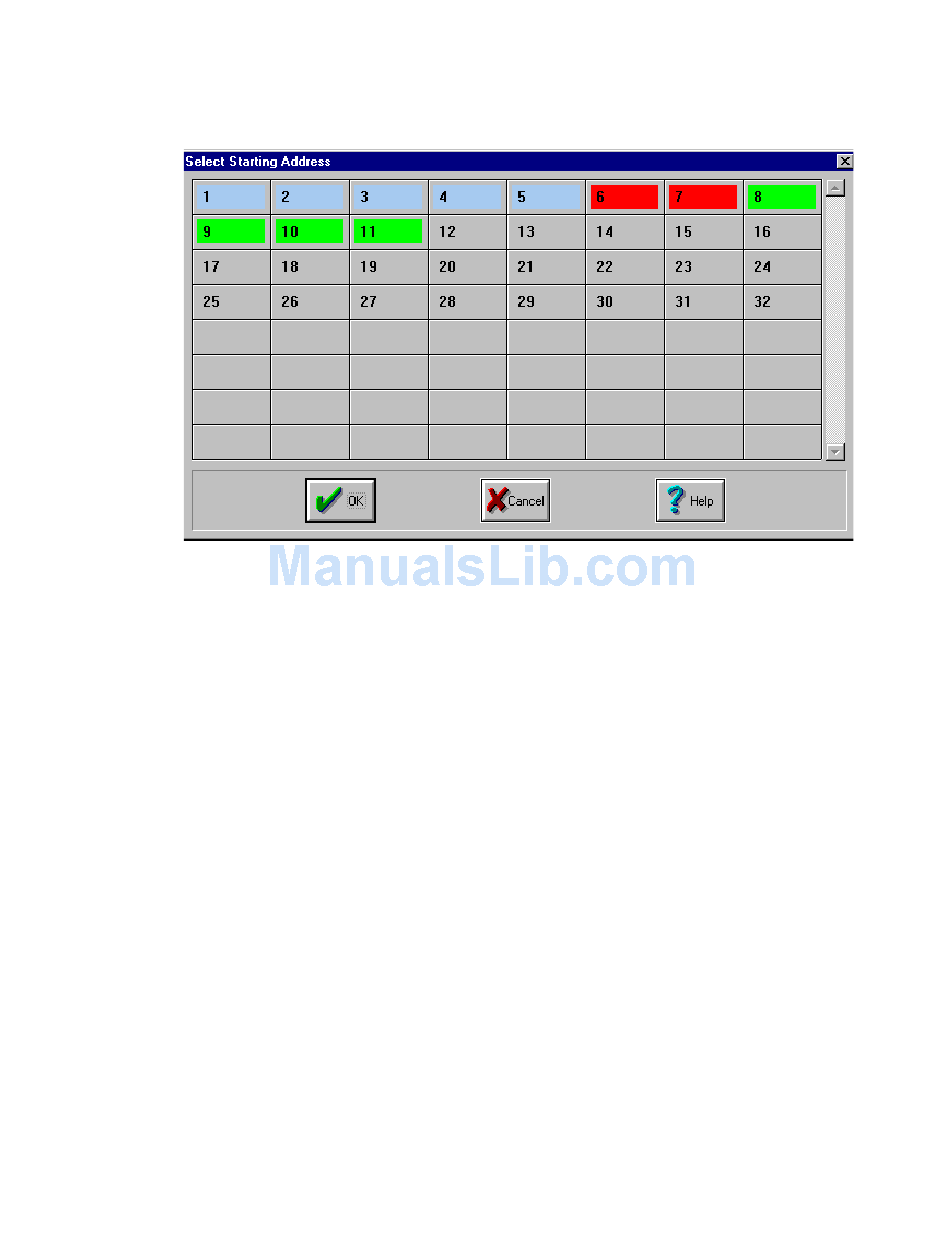

Figure 4.15. Select Starting Address Dialogue Box for LWR Links
Select Starting Address
the address to start at. Status Cue will automatically set the appropriate number
of channels from the selected fixtures. Refer to Figure 4.14. The following
color scheme is used:
• blue- existing fixture(s) address(es)
• green- new fixture patching address(es)
• blue and green for DMX Links- overlapping addresses between existing
and new fixtures on a DMX Link
• red- overlapping addresses between existing and new fixtures on a LWR
Link
OK
address, you will unpatch the fixture(s) previously assigned to that address
and replace them with the new fixture(s).
button to complete the procedure. The
OK
dialogue box now indicates the patched AF1000 fixtures. Refer to Figure 4.16.
dialogue box, click on the box where you wish
button when blue and green occupy the same
Fixture Setup
