Status Cue Cabling

The following subsections show how to properly connect all cables for
operation of the Status Cue Console and attached devices.

Connect Console Cable

The Console to LinkCard cable is a 10 foot shielded cable with a "locking" right
angle DB-25 connector on the Console end and a straight DB-25 connector on the
LinkCard end. Pins 3 and 25 are not used in the cable. See Figure 1.12
.
To install the Console cable from Console to LinkCard:
1. Connect the right angle connector to the "Console LINK" connector located at
.
1-14 Status Cue User's Manual
right angle
DB-25
(female)
connect to
Console

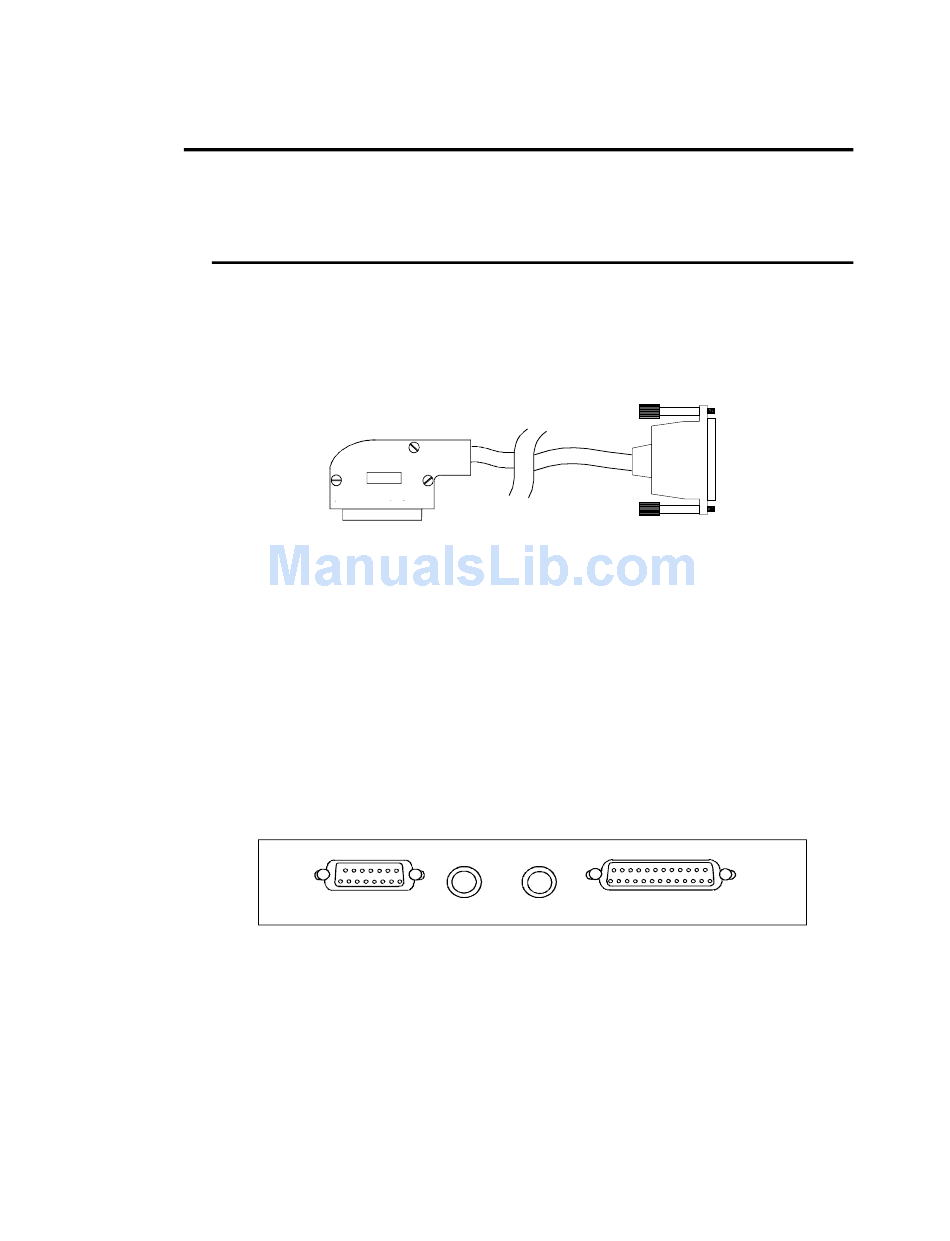

Figure 1.12. Console Cable to LinkCard
the rear of the Console (Figure 1.13) with the cable dressed towards the right
side of the Console (looking from rear). This allows cable clearance when you
open the Console. Then, slide the connector locking mechanism to the left to
secure the connector to the Console. Refer to Figure 1.14.
EXTERNAL
CONTROL
Figure 1.13. Console Rear Panel
10 feet
EXT IN 1
EXT IN 2
connect to
Master LinkCard
straight DB-25
(male)
CONSOLE
LINK
