Console Installation

Use the information in the following subsections to install the Status Cue
Console and its accessories.

Installing Littlites

The Console has provisions for two Littlites which provide dimmable Console
lighting. The Littlite goosenecks allow you to position the light where desired.
To attach the two Littlites to the Console, complete the following procedure:
1. Open the Console and remove the two Littlites from the storage tray.
2. Align the three pins on the Littlites with their female receptacles on the
Console and press the Littlites into the Console. Refer to Figure 1.9. Bend the
goosenecks to position the light where needed.
L I G H T W A V E R E S E A R C H
Note: only use Tungsten Halogen Bulbs (type Q5) 12-14 volts, 330-380 ma, 5 watt
for replacements.
Refer to "Setting System and Show Preferences" on page B-11 to learn how to
adjust the Littlites lamp output.

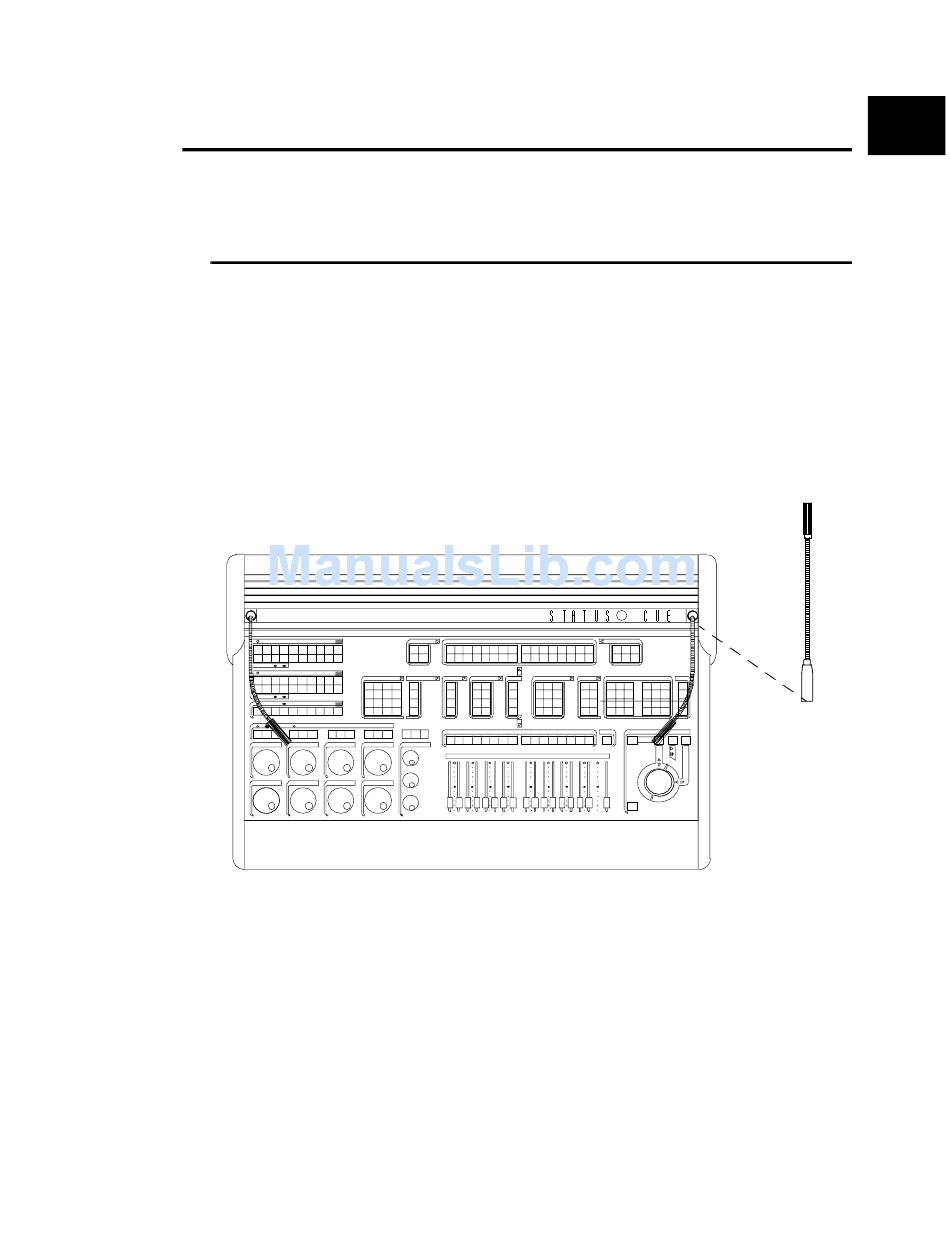

Figure 1.9. Littlites Attached to Console
press Littlites
into Console
receptacles
