Moving Fixtures

Fixtures are easily moved to a different order.
Notes: only the fixture numbers are reassigned when fixtures are moved. If you need to
change the address or Link, refer to "Patching and Unpatching Fixtures" on
page 4-12.
To move fixtures, complete the following procedure:
1. Bring up the Fixture Setup
2. Select the fixtures to move. Refer to Step 2 on 4-63..
3. Click the Move
Fixture? dialogue box. Refer to Figure 4.9.

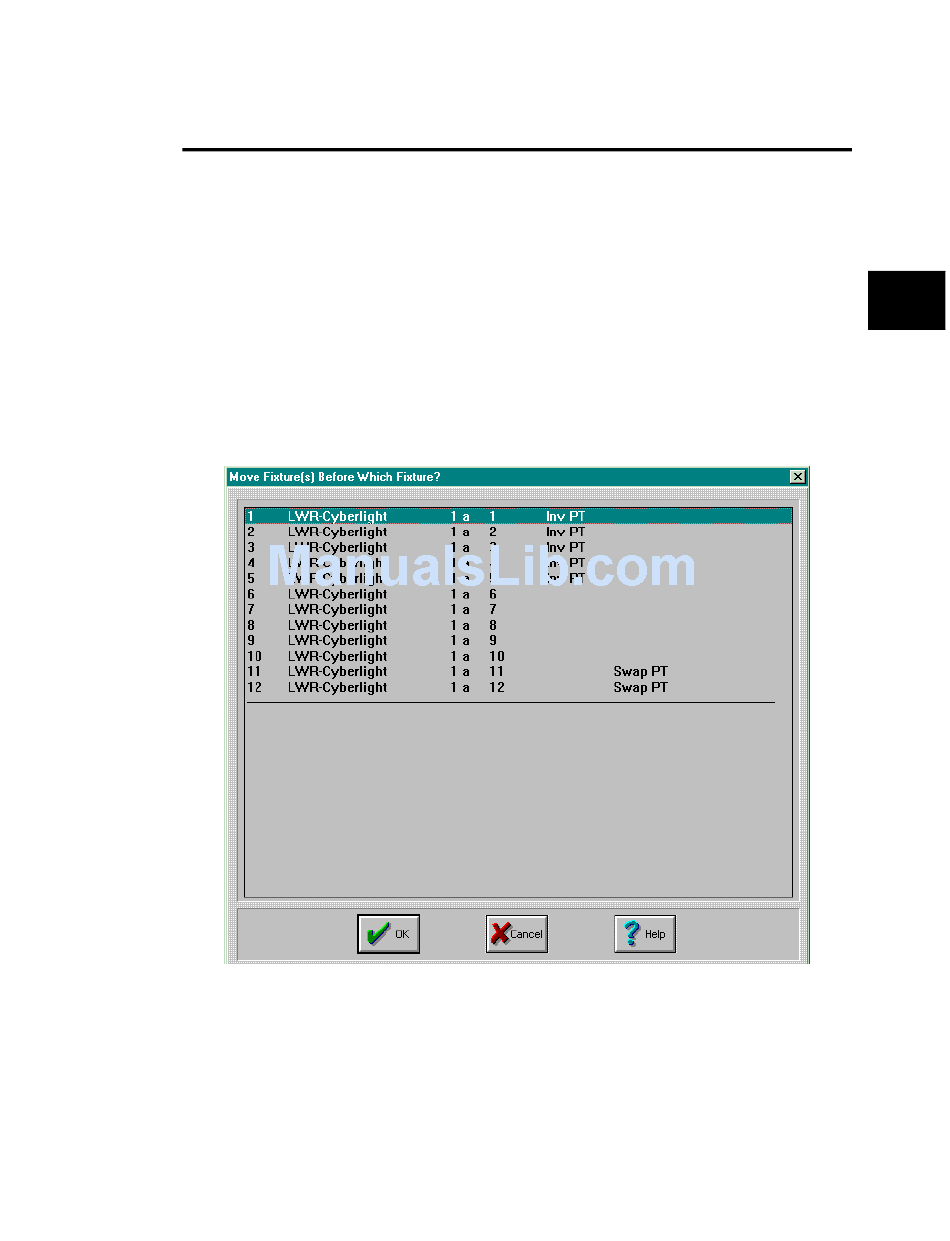

Figure 4.9. Move Fixture(s) Before Which Fixture? Dialogue Box
4. Select the fixture insertion point. The fixture becomes highlighted. Fixture(s)
will be inserted above the insertion point. Refer to Figure 4.9
5. Click the OK button. The selected fixtures are moved above the insertion point.
Refer to Figure 4.10 for an example.
dialogue box (if it is not already on the screen).
button. This brings up the Move Fixture(s) Before Which
