5-26 Status Cue User's Manual

Importing Gel Look-Up Tables

To import a gel file into the gel look up table, complete the following
procedure:
1. Press the < > key in the COLOR MIX group (Figure 5.23) to bring
GEL
up the dialogue box. Refer to Figure 5.25.
Gel Picker
2. Click the button to bring up the
Import
Into List dialogue box. Refer to Figure 5.28.

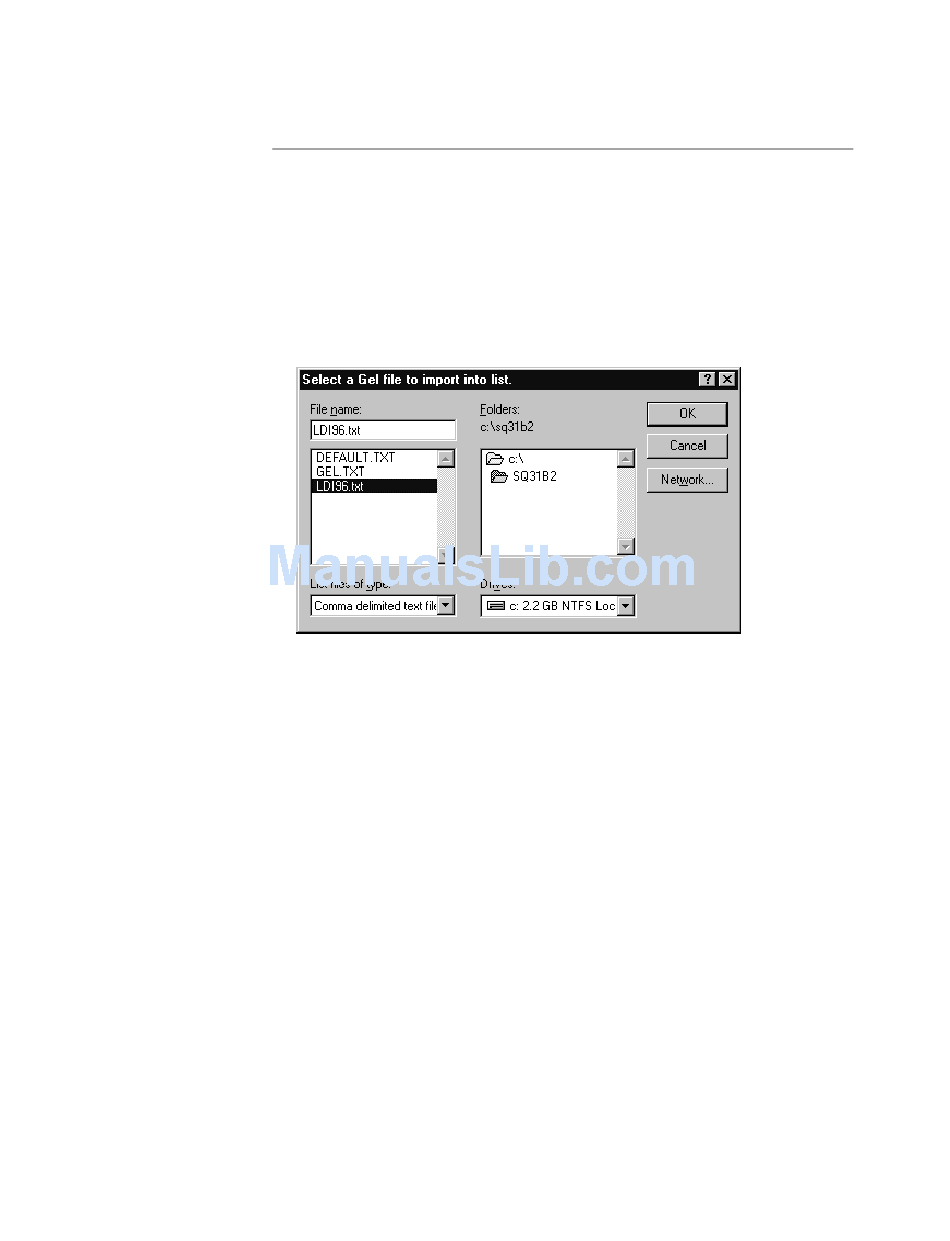

Figure 5.28. Select a Gel File To Import Into List Dialogue Box
3. Select the desired gel text file and click the
inserted into the gel picker table.
Select a Gel File To Import
button. The gels will be
OK
