Basic Setup

This configuration provides everything you need to use the Status Cue system for
control of 1024 DMX channels. You have complete control and operation of all
connected fixtures and can create, view, and edit all show data. As Figure 1
indicates, the Basic Setup consists of:
• The Status Cue Console
• One master LinkCard (installed in the computer)
• One Console cable (DB-25)
• One Link Out "Y" cable (DB-9)
Status Cue Console
10-foot console to LinkCard cable
Master LinkCard
installed in PC
4-foot "Y" Link Cable
with 2 Link Output XLR
connectors

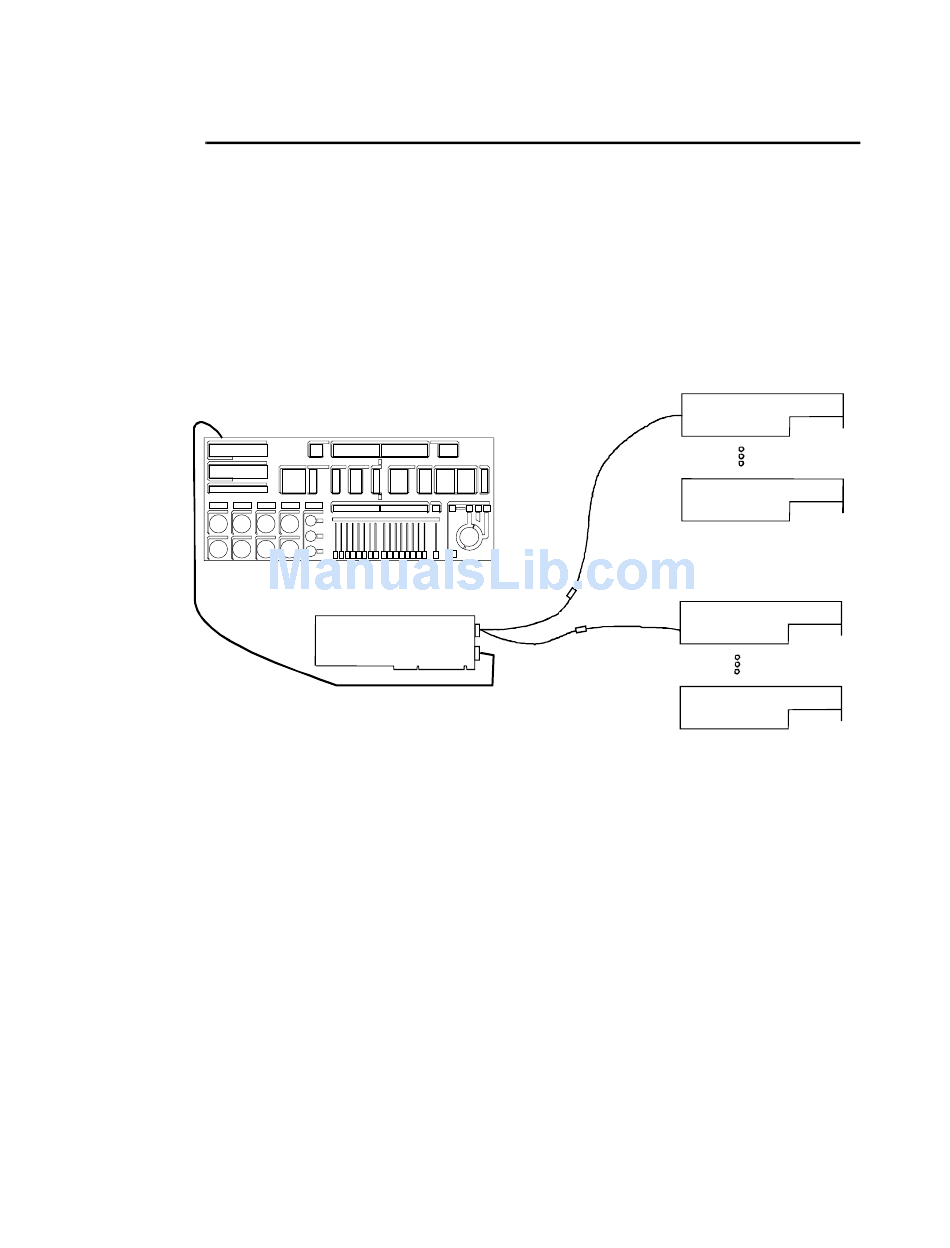

Figure 1. Basic Setup
Fixture 1
Last Fixture
Fixture 1
Last Fixture
Introduction Intro-5
